Automation:
Automatic
Making Method Of Parison:
Extrusion-Blow Molding
Raw Material:
LDPE
Computerized:
Computerized
Certification:
CE
Product Description

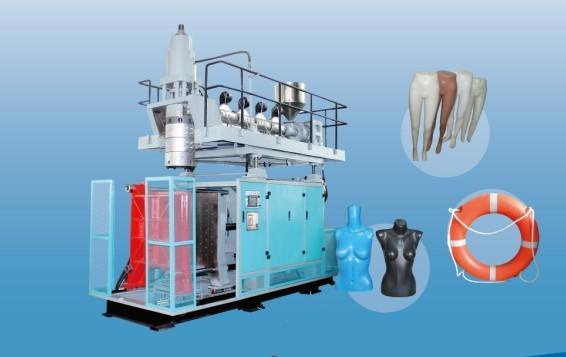

ZEB Series Accumulator die head Mode PE Blow Molding Machine, Equipment and materials meet the wide range and suitable for kinds of production. It's open and close mold systems is stationary open and close mould frame, extrusion system is the hard surface reducer, the Japanese import inverter. Die head system adopt to accumulator die head, all imports of hydraulic valves, seals, electro-hydraulic proportional control. Control System is make of MITSUBISHI PLC\Imported HMI\PLC Automati Temperature Controller\Imported Electronic Parts.
ZEB90N for max 60L tank jerrycan barrel. Tool box. Toolcase watering pot mannequin etc blowing products.
Specifications
ZEB65N
ZEB75N
ZEB80N
ZEB90N
ZEB100NA
material
PE,HDPE,PP,ABS...
max. product volume
L
15
20
30
60
80
output(dry cycle)
pc/hr
400
400
400
400
360
machine dimension(L×W×H)
m
3.8×2×3.2
4.1×2.4×3.6
4.5×2.4×4
5×2.6×4
5.5×2.5×4
machine weight
ton
6
9.5
12
12.5
17
clamping force
kn
95
175
215
400
460
platen opening stroke
mm
250-700
300-750
400-850
450-1050
500-1200
platen dimension
mm
600×500
720×600
880×800
980×950
1250×1080
max. mould dimension(W×H)
mm
400×500
440×650
600×850
750×1000
800×1000
cooling water pressure
Mpa
0.3
0.3
0.3
0.3
0.3
cooling water consumption
L/min
50
60
60
85
180
blowing pressure
Mpa
0.6
0.8
0.8
0.8
0.8
air consumption
m 3 /min
0.6
0.7
0.8
0.8
1.2
screw diameter
mm
65
75
80
90
100
screw L/D ratio
L/D
24
24-28
24-28
22-28
25-30
output of HDPE
kg/hr
56
80-100
110-120
140-200
180-250
No. of screw heating zone
zone
3
3-4
3-4
4
4-5
screw heating power
kw
5
6.2-8.2
7-8.5
7.5×9.5
8.5-11
extruder motor power
kw
18
30
30-37
37-45
45-55
No. of heating zone
zone
3
3-4
3-4
4
5
die head heating power
kw
10
6
6
7.8
9.5
max. die diameter
mm
220
300
300
350
450
oil pump driving power
kw
7.5-11
11-15
15-22
30
37
accumulator capacity
L
1.8-2.7
3.8
4.4
6.6
12
