Pulling Envelope:
500X200
Product Description

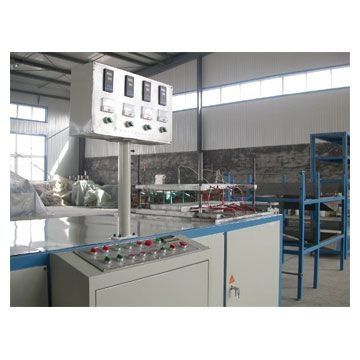

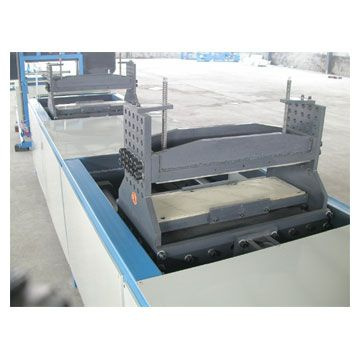

A. Equipment characteristic Temperature is controlled by high-precision dual displaying meter. Traction speed digital displaying Sealing elements of hydraulic cylinder is imported ones and hydraulic system adopts importing variable pump hydraulic components. With the optional function of oil temperature alarm and oil level malfunction alarm. Optional hydraulic oil heater. Hydraulic type traction device supply different kinds of operation modes. The traction speed id infinitely controlled. Adopting round blade cross cutting, pneumatic clamping and tracing. B. Technical parameter 1. Roving racks 2sets Ivory paint, combined structure, easy accessibility Rolls capacity: 70-100/5 layers Dimension: 2m(L) x 0.6m(W) x 2m(H) Standard configuration: 2 sets 2. Resin bath 1set Number: 1 set Body dimension: 1030mm x 720mmx190mm Resin capacity: about 50kg Support frame dimension: 1110mmx 810mmx900mm 3. Calibrating table 1set Fixed plate of calibrating mould:1000X800mm Temperature control zone:4 (The max. power can be controlled: 27Kw) Dimension: ≈3550X1300X1700mm 4. Traction device 1set Motor power of the hydraulic station: 2×3Kw Working table(width X height): 500×200mm Max. traction force of the machinery: (max16Mpa): 10000kg Max. press force: 10000kg Traction speed: 0.1-1m/min Journey of the haul off oil cylinder: 600mm Press journey: 100mm Water supply: circular cooling water, pressure≥1.5bar Dimension: ≈4900mm×1100mm×1300mm
Jinan Gold Lead Machinery Co., Ltd. is a new high-tech company, which is specialized in producing FRP (fiberglass reinforced plastics) pultrusion machines and FRP products; It is a member of the China FRP industry association. The company always pays more attention to development of the compound materials, and leads the trend of the development of the China composites pultrusion technology.
The leading products are: Farbon fiber overhead conductor composite core making machine, FRP caterpillar type pultrusion line, FRP hydraulic pressure type pultrusion line, FRP winding equipment, FRP mould, FRP auxiliary machine, FRP doors and windows assembling machine, FRP products ( carbon fiber products, cable bridge, electrician ladder, power plant obstructs evades covers and each kind of constant section profile)
The company always persist the integrative developmental strategy of producing, learning and studying, taking the product innovation as our own duty. Associated with the famous university and research institute units to develop topic attack, our company is the transformation base of the technology achievements and industrial production of many universities. Our company has rapidly developed into a new type high-tech enterprise of products seriation and scale production.
Jinan Gold Lead Machinery Co., Ltd. is a new high-tech company, which is specialized in producing FRP (fiberglass reinforced plastics) pultrusion machines and FRP products; It is a member of the China FRP industry association. The company always pays more attention to development of the compound materials, and leads the trend of the development of the China composites pultrusion technology.
The leading products are: Farbon fiber overhead conductor composite core making machine, FRP caterpillar type pultrusion line, FRP hydraulic pressure type pultrusion line, FRP winding equipment, FRP mould, FRP auxiliary machine, FRP doors and windows assembling machine, FRP products ( carbon fiber products, cable bridge, electrician ladder, power plant obstructs evades covers and each kind of constant section profile)
The company always persist the integrative developmental strategy of producing, learning and studying, taking the product innovation as our own duty. Associated with the famous university and research institute units to develop topic attack, our company is the transformation base of the technology achievements and industrial production of many universities. Our company has rapidly developed into a new type high-tech enterprise of products seriation and scale production.
