| Prod Model: |
BLGY-1500x400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
ISO |

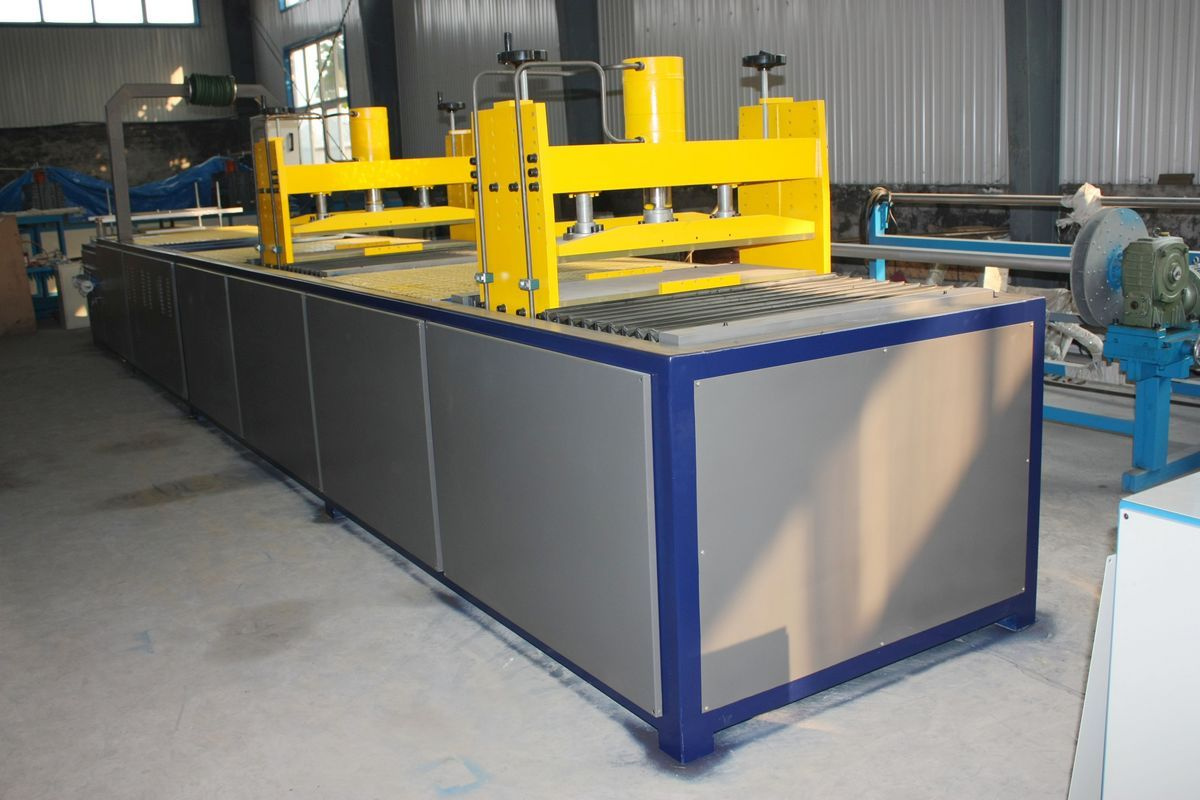

Product Description
A. Equipment characteristics:
Temperature control adopts OMR tem-control module, 8" touch screen displaying
Traction force, traction speed touch screen displaying
Sealing elements of hydraulic cylinder is imported, every traction head has separate hydraulic system.
Hydraulic traction device is auto or manual. The traction speed and clamping force is adjustable.
Traction machine has the pause function and easy to clean the mould.
The equipment plate does spurts models processing.
B. Technical parameter:
Line working voltage: 380V/50Hz PLC working voltage: AC220V/50Hz
Power system voltage fluctuation within ± 10%
Total power: About 28KW (not including mould heating)
Working condition: Dry space without corrosive gas and dust
Environment temperature: 5-40ºC relative humidity ≤ 80%
Circulating water: Clean cold water
1. Calibrating table
Calibrating table plate: 1940mmx1200mm
Calibrating mould length: 900mm
Temperature zones: 24
Heating plate (optional): Steel plate or cast aluminum plate
Dimension: ≈ 5mx2mx1.7m
2. Traction machine
Number of traction head: 2
Clamping scope: 1500mm(W)x450mm(H)
Max traction force: 800KN
Traction speed: 0.04-0.36m/min
Clamping force of traction head: 800KN
Clamping journey: ∮2500X500mm
Clamping cylinder: ∮180x50mm
Power of cylinder: 7.5x3KW 380V/50Hz
Oil temperature cooling: Circulating cooling water water pressure>1.5bar
Dimension: ≈ 11mx2mx2.4m
3. Cutting saw
Cutting scope: 1200mmx300mm
Cutting power: 380V/50Hz 2.2KW
Tracing cutting, free length fixed
Cutting speed: Stepless speed adjustable
Dimension: 3.5mx3.2mx2.5m
C. Main components configuration
1. Electric elements
8' touch screen, PLC and tem-control module are all from Omron, Japan.
Electric heating control adopts contactless heating (solid-state relay).
General controlling elements use Huyun brand, Zhejiang, China.
2. Hydraulic components
Hydraulic pump adopts V38 variable piston pump.
Hydraulic change valve is from NORTH MAN, Taiwan
Speed regulating valve is DAKIN, Japan.
