Usage:
Wire

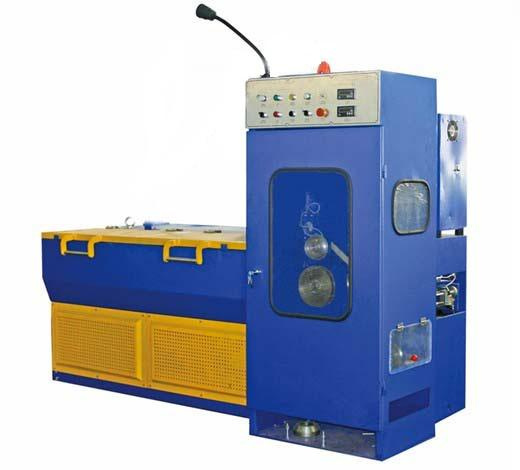

Product Description
Main feature:
1. Double motors inverters, small slip high quality.
2. Tension auto control system.
3. High tension durably flat belt gain convenient replacement and low noise in operating.
Machine type
FJX-B17
FJX-B20
FJX-14D
FJX-B22
(FJX-B22/A)
FJX-B24
(FJX-B24/A)
FJX-22D
(FJX-22DA)
FJX-24D
(FJX-24DA)
Inverter control
Double inverter control
Main machine structure
four cones in horizontal
two cones in horizontal
four cones in horizontal
four cones in vertical
Max. Inlet Dia. (mm)
1.8
1.6
1.38
1.2
1.2
1.0
Outlet Dia. (mm)
0.30~0.70
0.30~0.65
0.25~0.50
0.1~0.5
0.08~0.32
0.10~0.32
0.08~0.25
Max. Die No.
17
19
14
22
24
22
24
Max. Line speed (m/min)
1500
1500
1200
2000 ( 2500 )
Body structure
Welded
Ironed cast
Drawing capstan
Ceramic plasma capstan
Slip ratio of m/c ( % )
15
13
15
13
Main motor power (kw)
18.5
15
15
11 ( 15 )
11
Take-up motor (kw)
5.5
5.5
5.5
4
4
Fix speed capstan Dia.(mm)
200
200
268
160 ( 206 )
Transmission type
Belt
Take-up bobbin size (mm)
300 / 400
300
Traversing type
Synchronous motor +belt
Tension control
Weight balance type
Lubrication type
Full immersion
Spray
Brake
Magnetic Brake
Weight (KG)
2600
2600
2200
2300
2300
2000
2000
Far East(China) machinery Co., Limited, it has two main products: Electrical machine for cable industry and copper wire and plastics extrusion machinery. We are a large scale group with new technology, up-to-date skill, latest device and combining research, production and sales. Headquartered in Shanghai yangpu area.
Now our company has more than 30 senior engineers and lots of experienced technical workers. We have three big manufacturing & processing centers, so that the work-types can be complete. Our company got the ISO9001 certification and CE certification. Meanwhile, we established the import and export department in 2008, which can help to develop the international markets more successfully.
Nowadays, our company keeps good cooperative relationship with many domestic and oversea industry associations. Our market covers American and European countries, Middle East, Africa, Russia, Ukraine, south-eastern Asia and so on. We have built some large projects abroad, even turnkey projects.
Honesty, quality and efficiency is our strict promise.
