Usage:
Wire

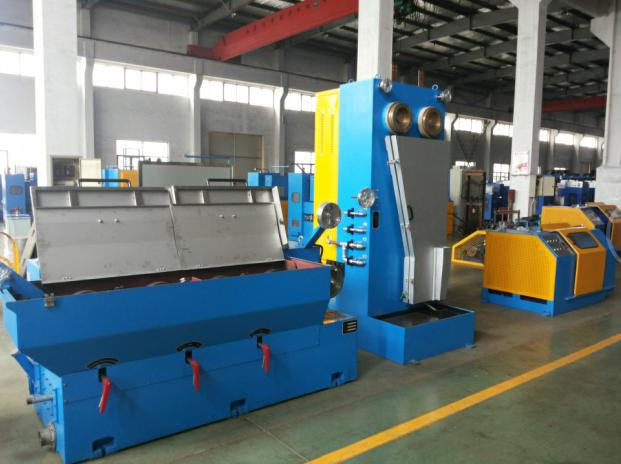

Product Description
Main feature:
1. Double inverters auto tension control system.
2. Unify 250 cast-iron main frame, precision machinery, no shock.
3. Capstan treated with wear-resistant tungsten.
4. Suitable for continuous annealer, take up machine with and without shaft, coiler machine.
Machine type
280/13DH
300/9DH
250/13DH
250/17DH
260/17D-C
260/17D
Max.Inlet Dia.(mm)
3.5
Outlet Dia. ( mm )
0.65~2.8
1.2~2.8
0.65~1.60
0.4~1.6
0.4~1.5
0.4~1.2
Max.Die No.
13
9
13
17
17
17
Max.line speed (M/Min)
2000
1200
1800
1800
1500
1200
Body structure
Ironed cast
Slip ratio of machine
20%
18%
20%
20%
18%
18%
Fix speed capstan Dia.(mm)
280
300
250
250
260
Transmission type
By high precision grinding gear
By Chain
Main motor power (KW)
55 (45)
37
Take-up motor power (KW)
11 (15)
11
Lubrication type
Full Immersion
Spray type
Take-up bobbin size (mm)
500/630 ( Bore is 127mm) or changed by requirement
Optional equipment
1\ Continuous annealing device
2\ Coiler
On-line continuous annealing device
Type
350T
250T/B
250T/A
Machine structure
horizontal
vertical
vertical
Annealing wheel Dia. (mm)
350
250
250
Annealing wire dia. (mm)
0.8~2.8
0.6~2.2
0.4~1.2(0.4~1.6)
Annealing protection type
steam or nitrogen
Annealing voltage (DC)
0~65V
0~60V
Annealing current (DC)
0~2500A
0~(2000A\1500A\1200A)
Far East(China) machinery Co., Limited, it has two main products: Electrical machine for cable industry and copper wire and plastics extrusion machinery. We are a large scale group with new technology, up-to-date skill, latest device and combining research, production and sales. Headquartered in Shanghai yangpu area.
Now our company has more than 30 senior engineers and lots of experienced technical workers. We have three big manufacturing & processing centers, so that the work-types can be complete. Our company got the ISO9001 certification and CE certification. Meanwhile, we established the import and export department in 2008, which can help to develop the international markets more successfully.
Nowadays, our company keeps good cooperative relationship with many domestic and oversea industry associations. Our market covers American and European countries, Middle East, Africa, Russia, Ukraine, south-eastern Asia and so on. We have built some large projects abroad, even turnkey projects.
Honesty, quality and efficiency is our strict promise.
Welcome to visit us--Far East(China) Machinery Co., Limited
