| Price: | US $ 58000/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Money Gram,Western Union |
| Prod Model: | HAB2-2L |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Certificate: | CE |
| Machine Working Power: | 380V,3phase, 50Hz |
| Making Method Of Parison: | Stretch Blow |
| Raw Material: | PET |
| Certification: | ISO9001:2008 |
| Type: | Extrusion Blow Molding Machine |
| Automation: | Automatic |
| Computerized: | Computerized |
1. Servo drive, stepless speed regulation, smooth operation, accurate location;
2. Preform inlet device of invention patent design, linear movement in high speed;

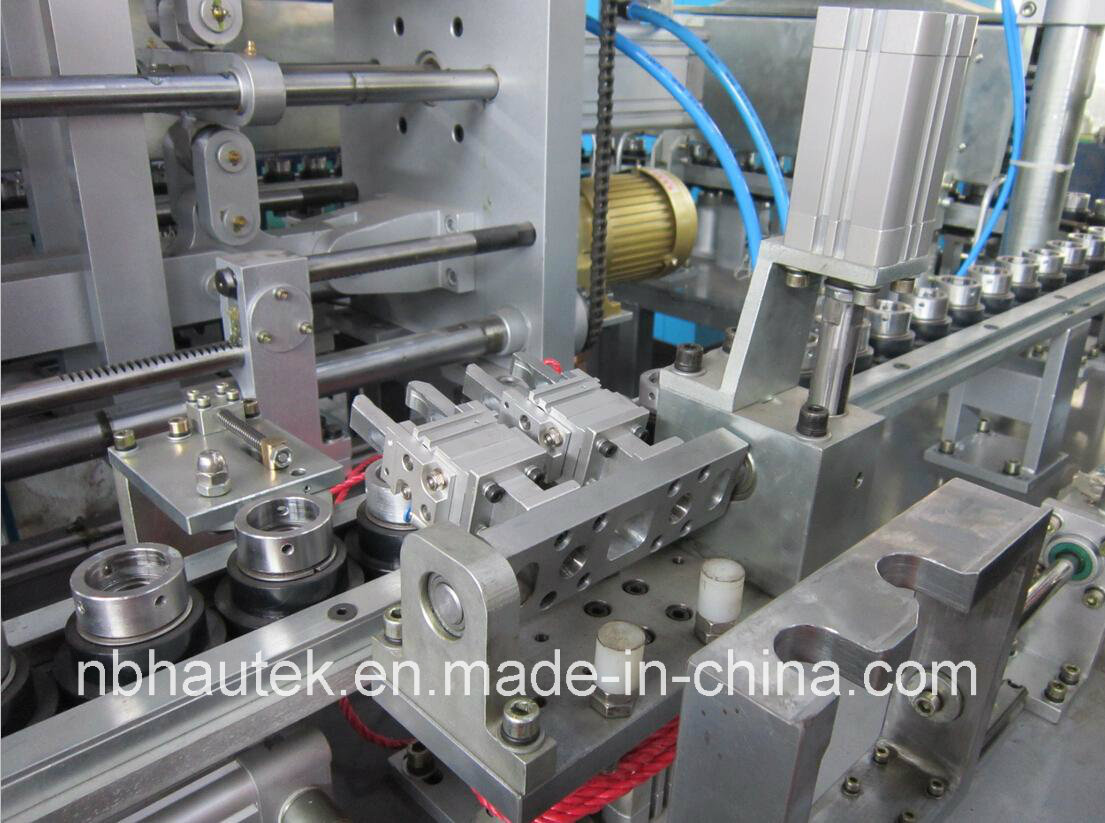

3. Robot of patent design synchronize preform loading and bottle taking;
4. Heating tunnel of invention patent design, saving more energy by sectional temperature control;
5. Imported PLC automation control enable non-stop machine parameter adjustment.
Model details :
| HAB2-2L | HAB3-1.25L | |||
| MOLD NUMBER | 2 | 3 | ||
| PRODUCT CAPACITY | L | ≤2L | ≤1.25L | |
| PRODUCTION CAPACITY | Max. CAPACITY(500ml) Bottle mouth 28-30mm | Pcs/h | 3130 PCS/H (2.3 S/CYCLE) | 4500 PCS/H (2.4 S/CYCLE) |
| RECOMMENDED REODUCTION CAPACITY | Pcs/h | 2800-3000pcs of 0.5L bottle, prefrom neck : 28-30mm, Weight:17g, Thickness: 2.3mm ; 2000-2250 pcs/H of 1L bottle, preform neck : 28-30mm, Weight : 42g, Thickness: 3.3mm | 4000-4200 Pcs/H of 0.5L bottle, preform neck 28-30mm, Weight : 17g, Thickness: 2.3mm ; 3100-3500 Pcs/H of 1L bottle,preform neck 28-30mm, Weight : 28g, Thickness: 3mm | |
| MAX. DINMETER OF PRODUCT | φ120 | φ90 | ||
| NECK SIZE OF PRODUCT | φ15-φ45 | φ15-φ38 | ||

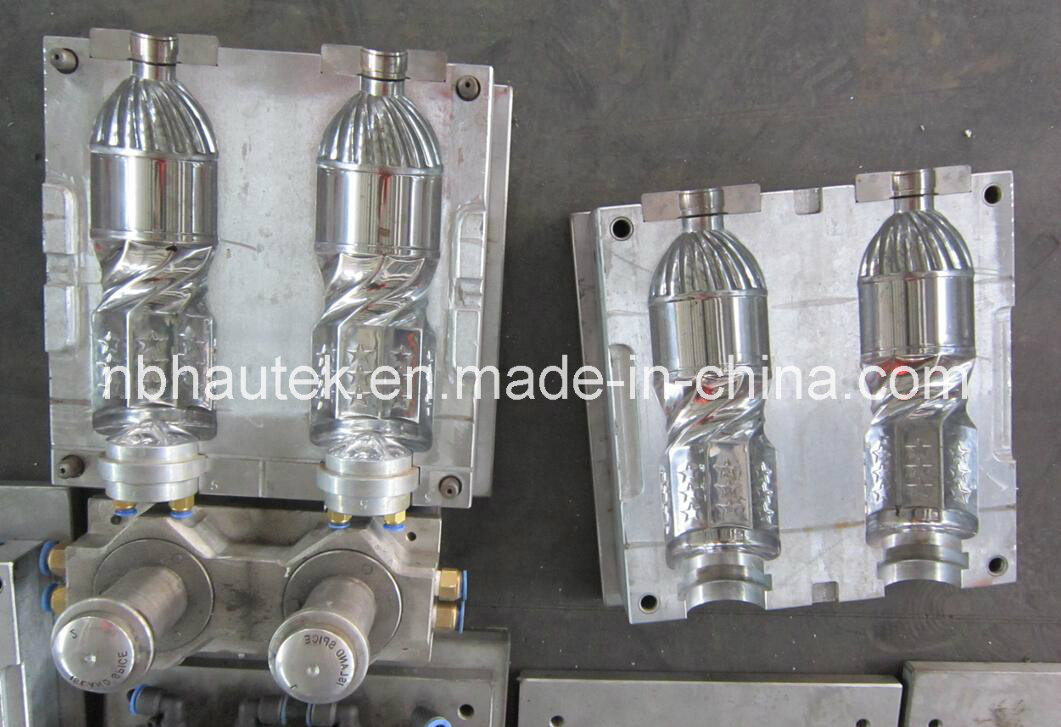

| USEFUL AREA OF MOULD PLATE | 350×400 | 350×350 | ||
| MAX.MOULD THICKNESS | 220 | 220 | ||
| MIN.MOULD THICKNESS | 180 | 180 | ||
| MOULD STROKE | 158 | 110 | ||
| CLAMPING FORCE | kN | 120 | 120 | |
| STRETCHING STROKE | 350 | 350 | ||
| WORKING PRESSURE | MPa | 0.8-1.0 | 0.8-1.0 | |
| BLOWING AIR PRESSURE | MPa | 2.6-3.0 | 2.6-3.0 | |
| MEASUREMENT OF BLOWER | 3000×1850×1900 | 3100×1850×1900 | ||
| POWER OF PREHEATER | kW | 95 | 80 | |
| A | 131 | 115 | ||
| ACTUAL; POWER OF PREHEATER (BASED ON 500ML BOTTLE) | kW | 29 | 26 | |
| A | 45 | 40 | ||
| POWER OF MAIN BLOWER | kW | 5 | 5 | |
| WEIGHT OF MAIN BLOWER | T | 4 | 4 | |
| MEASUREMENT OF CONVEYER | 2500×2000×2750 | 2500×2000×2750 | ||
| WEIGHT OF CONVEYER | T | 0.2 | 0.2 | |
| HIGH PRESSURE AIR COMPRESSOR UNIT | POWER | kW | 22×2 | 22x2 |
| PRESSURE | MPa | 3.0 | 3.0 | |
| DISCHARGING CAPA | m³/min | 4 | 4 | |
| LOW PRESSURE AIR COMPRESSOR | POWER | kW | 22 | 22 |
| PRESSURE | MPa | 1.25 | 1.25 | |
| DISCHARGING CAPA | m³/min | 3.0 | 3.0 | |
| AIR TANK | CAPACITY | m³ | 0.6 | 0.6 |
| PRESSURE | MPa | 3.0 | 3.0 | |
| WATER CHILLER | COOLING CAPACITY | Kcal/Hr | 35200 | 35200 |
| COMPRESSOR MOTOR | HP | 10 | 10 | |
| AIR DRYER | CAPACITY | m³/min | 4 | 4 |
| WORK PRESSURE | MPa | 3.0 | 3.0 | |
| OIL FILTER | CAPACITY | m³/min | 4 | 4 |
| WORK PRESSURE | MPa | 3.0 | 3.0 | |
| ODOR REMOVAL FILTER | CAPACITY | m³/min | 4 | 4 |
| WORK PRESSURE | MPa | 3.0 | 3.0 | |
| AIR FILTER | CAPACITY | m³/min | 4 | 4 |
| WORK PRESSURE | MPa | 3.0 | 3.0 | |
