Certificate:
CE
Machine Working Power:
380V,3phase, 50Hz
Bottle Material:
Pet
Machine Capacity:
840-1500 PCS/Hour
Type:
Extrusion Blow Molding Machine
Raw Material:
PET
Making Method Of Parison:
Stretch Blow
Automation:
Non-Automatic
Computerized:
Computerized
Certification:
ISO9001:2008
Product Description

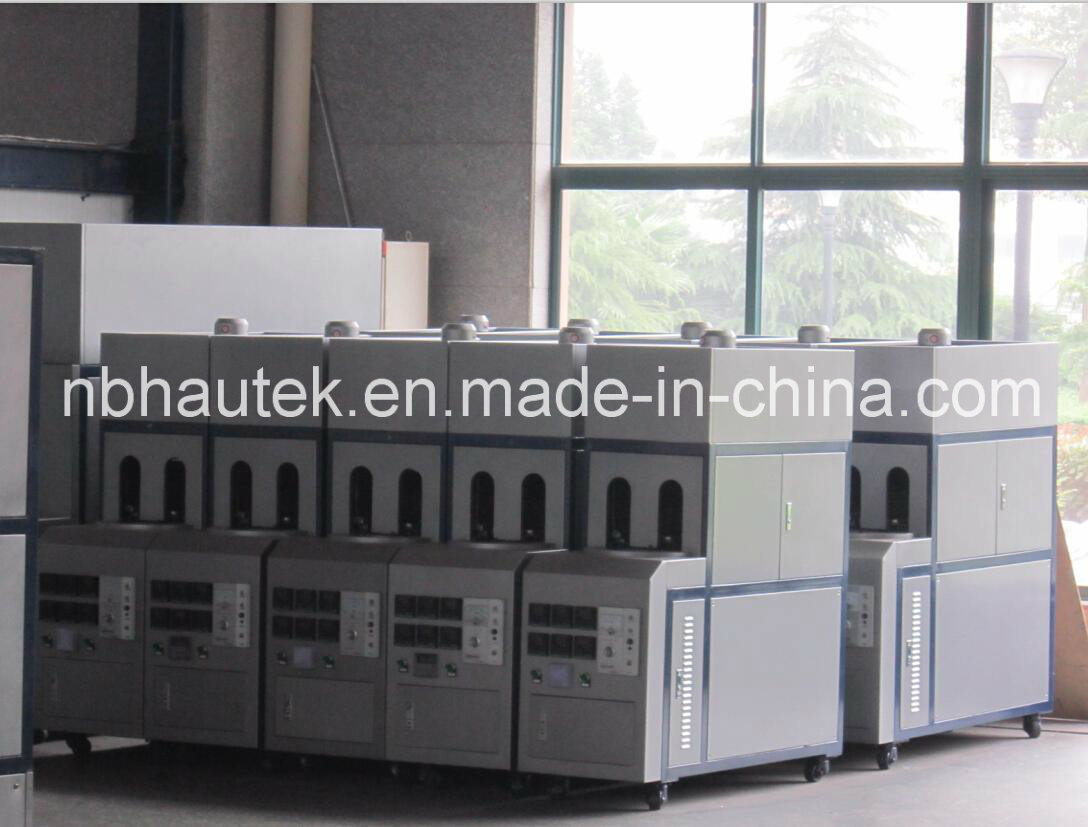

Semi-automatic Blow Molding Machine( 1 or 2 Cavity )
1. Toggle mold clamping system provides high clamping force.
2. Inventional patent design heating channel with side-open stand convenient for heating lamps replacement and machine maintenance.
3. Semi-automatic operation, suitable for production of different shape of containers.
Model details :
SEMI-AUTOMATIC BLOW MOLDING MACHINES
Item
Unit
TECHNICAL DATA
CSD-2P/CSD-2
CSD-3P/CSD-3
CSD-2P-4
Max.Volume of Product
L
2×2 / 1×3
2×2 / 1×7
1.5×4
Production Capacity
Pcs/h
840-360
840-360
1300
Neck Size of Product
mm
<75
<75
28-32
Useful Area of Mould Plate
mm
380×290
380×290
560×300
Max.Mould Thickness
mm
200
280
280
Min.Mould Thickness
mm
120
170
170
Mould Stroke
mm
135
210
265
Clamping Force
kn
80
80
100
Stretching Stroke
mm
410
410
500
Working Pressure
Mpa
1.0-1.25
1.0-1.25
1.0-1.25
Blowing Air Pressure
Mpa
2.5-3.0
2.5-3.0
2.5-3.0
Power of Main Blower
kw
0.1
0.1
0.15
A
0.5
0.5
0.75
Power of Preheater
kw
12
24
24
A
18
36
36
Weight of Main Blower
kg
690
800
1500
Weight of Preheater
kg
280
380
380
Measurement of Main Blower
mm
1520×580×1750
1830×580×1800
2300×800×2000
Measurement of Preheater
mm
1350×485×1450
1450×700×1350
1800×750×1500

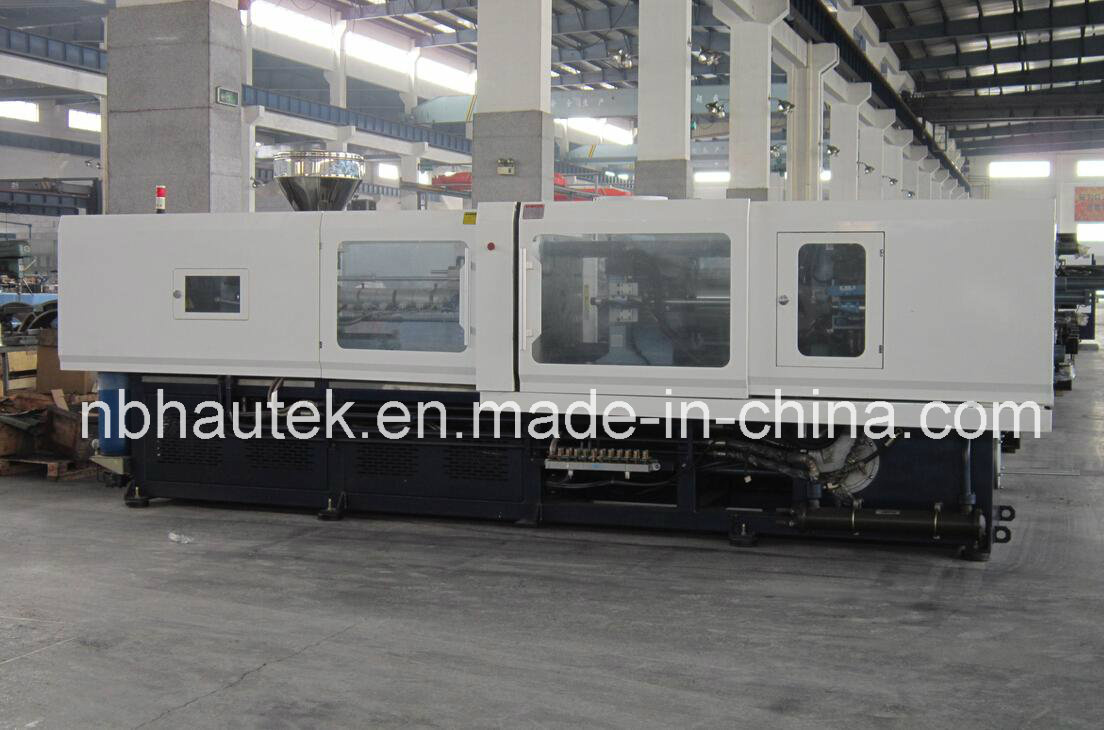

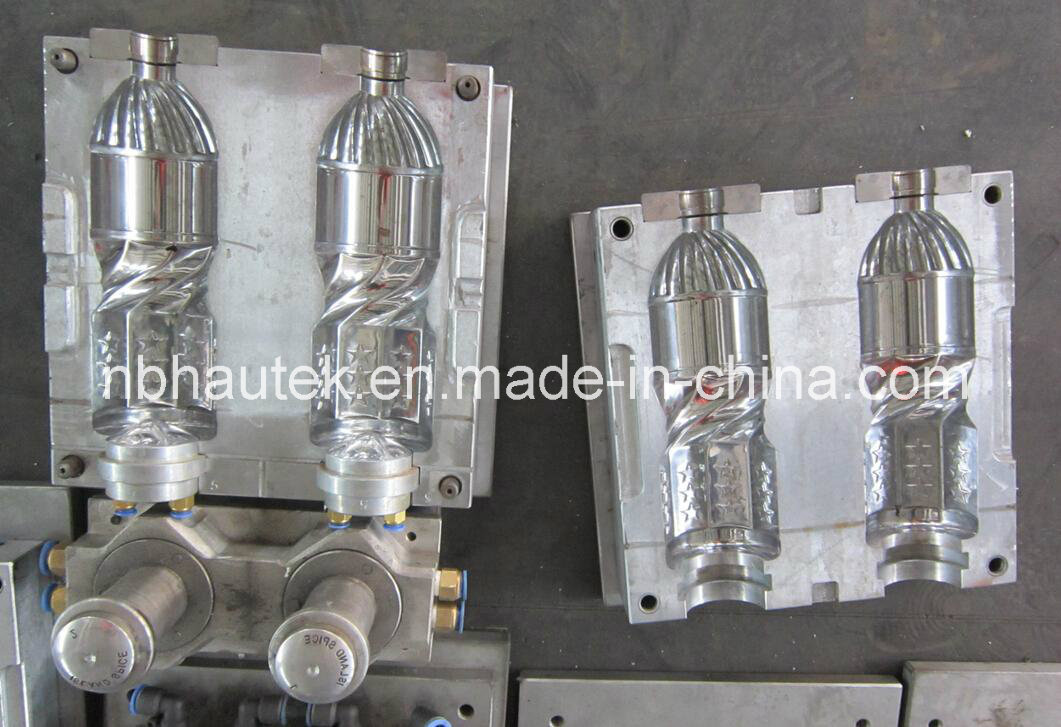

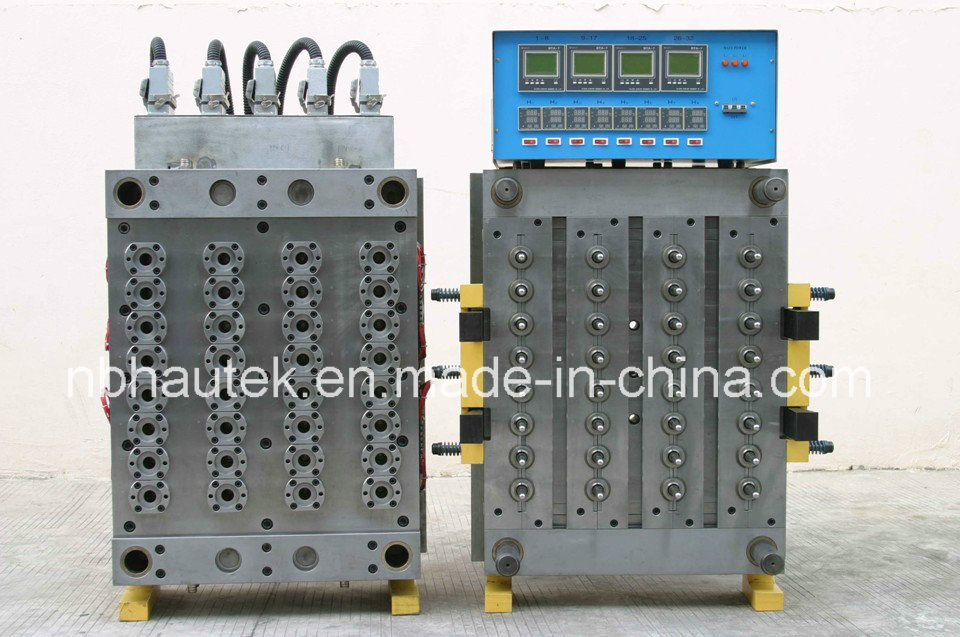

Bottle blowing mold : PET Preform injectio molding machine : Injection mold for PET Preform :
