Material:
Steel
Product Description

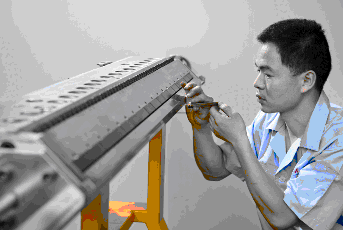

T-Die adopt special flow channel, Pull and pusk or push adjust upper lip. Width of dies 400-8000mm Internal deckle style Suitable for producing single or multilayer PP PE EVA CPP CPE PA etc film. Surface of flow channel is hard chrome plated, with thickness of 0.03-0.04mm, hardness 60-65 (ROCKWELL); Outside die surface chrome plated thickness 0.01-0.02mm, facilitating maintenance and corrosion prevention
Name
Extrusion coating & laminating die
Usage for products
Plastic film CPP / CPE / PP / PE / EVA / LDPE / TPU
Film thickness
0.005-0.02mm
Die width
300mm-8000mm or per your request
Die material
2738 from Germany or P20
Lips adjustment system (for the upper die lip)
1.Manual full push flexible fine-turning
2.Automatic full push flexible fine-turning
3.Manual push & pull fine-turning
4.Automatic push & pull fine-turning
Wide-size adjustment method
With the reduction of the thick edge, the inner block-type lead screw adjustment device can continuously adjust the die wide-size online to maximize the cost savings.
Flow channel
Branch-tube type
Heat Voltage
220V or on customer's request
Heating way
Heating bars made of stainless steel from Italy
Cable connection:
Close connecting with protection cover
Screws
High strength at 12.9 grade
Polishing
Lips and surface of flowing: 0.02-0.03(μm),Other surfaces: 0.03-0.04(μm).
Chrome thickness:
0.035-0.045mm
Surface hardness:
60-70HR
Feeding type:
Round or square or special
Installation
On costumer's request
We provide varieties of Flat sheet dies
1. Maxiumum width is 8000mm;
2. Multi flow channel;
3. For thin sheet, thick sheet, hollow sheet, Rainbow sheets;
4. Melt pump;
5. Hydraulic Screen Changer;
6. Feedblcoks
Heavy Gauge Sheet Dies
With 90'restrictor bar
Upper die lip adjustment range max.: 11mm
Width adjustment system optional
Product thickness max.: 60mm
PVC Foam Sheet Dies
Application: Foam PVC building products, bathroom fixtures, poster boards etc.
Die structure: Special design for flow channel and multiple oil temperature control
Zones at DIP lips which stabilize the flow and calibrating area.
Updated design for PVC celuka dies: The lip exit is equipped with a unique water
Cooling system, to reduce foam density and make the surface harder.
Common Sheet Dies
Upper lip fine adjustment system
Lower lip fixed, or adjustable
Restrictor bar for option
Various width adjust systems are optional
PC Hollow Corrugated Dies
PC hollow corrugated sheet thickness: 4-20mm, wave height: 20-60mm
Film can be produced as thin as 0.5, at widths up to 8000 mm.
Our mission statement: Excellent quality, sound goodwill, and service. Satisfactory long-term unremitting efforts have resulted in extensive quick screen-changing units and multi-layer co-extrusion feed-block of various sizes and types are available. We have CAD/CAM designing and CNC machining, contributing to higher precision premium products of consistent quality products.
We are your trust worthy partner.
