Material:
Steel
Product Description
T-Die adopt special flow channel, Pull and pusk or push adjust upper lip. Width of dies 400-8000mm Internal deckle style Suitable for producing single or multilayer PP PE EVA CPP CPE PA etc film. Surface of flow channel is hard chrome plated, with thickness of 0.03-0.04mm, hardness 60-65 (ROCKWELL); Outside die surface chrome plated thickness 0.01-0.02mm, facilitating maintenance and corrosion prevention

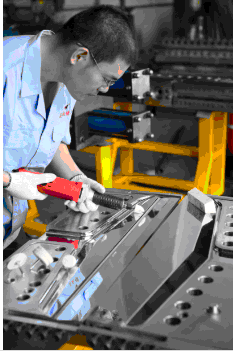

plastic Coating Die
Raw material
PVB,EVA,PE,PP,TUP,PVC ,PET
Mould width
500-8000mm
Thickness range
0.005-0.1mm
Die body material
P20/5CrNiMo/2738 imported from GERMANY
Thickness adjustment
Upper lip micro adjustable, Bottom lip can be adjustable and replaceable
Flow channel
Coating hanger flow channel with computer designed
Heating Voltage
220V/50HZ/three-phase
Heating unit
Stainless steel heating bar
Cable connection
Close connecting with protection cover
Fastening part
12.9 high strength screws
Polishing
Lips and surface of flowing: 0.02-0.03(μm), Other surfaces 0.03-0.04(μm).
Electroplating
Die head stream surface hard chrome plating thickness 0.05-0.04(mm) Hardness 60-65 HRC Outside surface hard plating thickness0.02-0.03(mm)
Feeding
Round center feeding
We provide varieties of Flat sheet dies
1. Maxiumum width is 8000mm;
2. Multi flow channel;
3. For thin sheet, thick sheet, hollow sheet, Rainbow sheets;
4. Melt pump;
5. Hydraulic Screen Changer;
6. Feedblcoks
Heavy Gauge Sheet Dies
With 90'restrictor bar
Upper die lip adjustment range max.: 11mm
Width adjustment system optional
Product thickness max.: 60mm
PVC Foam Sheet Dies
Application: Foam PVC building products, bathroom fixtures, poster boards etc.
Die structure: Special design for flow channel and multiple oil temperature control
Zones at DIP lips which stabilize the flow and calibrating area.
Updated design for PVC celuka dies: The lip exit is equipped with a unique water
Cooling system, to reduce foam density and make the surface harder.
Common Sheet Dies
Upper lip fine adjustment system
Lower lip fixed, or adjustable
Restrictor bar for option
Various width adjust systems are optional
PC Hollow Corrugated Dies
PC hollow corrugated sheet thickness: 4-20mm, wave height: 20-60mm
Film can be produced as thin as 0.5, at widths up to 8000 mm.
Our mission statement: Excellent quality, sound goodwill, and service. Satisfactory long-term unremitting efforts have resulted in extensive quick screen-changing units and multi-layer co-extrusion feed-block of various sizes and types are available. We have CAD/CAM designing and CNC machining, contributing to higher precision premium products of consistent quality products.
We are your trust worthy partner.
