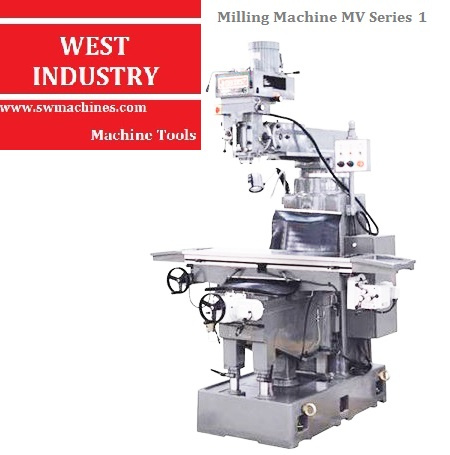

Product Name: Milling Machine MV Series 1
Performance:
·High Precise Milling Machine; ·Multi-purpose for workshop, single part production, design and training; ·For electronic parts, mould and hole, slot and frame processing; ·Twice precisely scraping could assure the quality of processing; ·Fit for boring, milling and drilling, tolerance is 0.005-0.012mm; ·Taiwan original milling head, NSK P4 spindle bearing; ·Spindle tolerance is 0.002mm; ·Parallel value between movement of table and table: X axis 0.015mm, middle 0.01mm, Y axis 0.01mm; ·Variable speed and inverter speed is available; ·Can be equipped with digital readout.
Standard Accessories:
·Way cover ·Working light ·Tool and toolbox
Optional Accessories:
·Clamping kit ·Milling chuck ·6 inch Vise ·Power feed / Mechanical feed ·Elevating motor ·Cooland pump ·Power bar ·Digital readout
Main Technical Data of the Milling Machine:
Specification
Model
M2VA
M3VA
M4VA
M4VB
M2VB
M5VL
Table size
mm
1067x230x72
1270x254x90
1270x254x90
1270x254x90
1244x230x72
1370x254x90
Travel
Longitude
mm
750
900
900
900
900
1000
Crossward
mm
325
395
405
370
430
Vertical
mm
360
350
340
360
390
Travel of spindle quill
mm
127
127
127
127
Max.distance from the spindle nose to table
mm
440
400
450
400
440
Spindle
Rotation speed
RPM
Step speed:80-5440 (16 grades)
Variable speed:60-4200
Inverter speed:0-4200
Taper
R8 (NT30)
R8 (NT30)
R8 (NT30)
R8 (NT30) or T40
Rated power
HP
3
3
3
3 , 5
Tilt angle
Forward and backward
±45º
±45º
±45º
±45º
Left and right
±90º
±90º
±90º
±90º
Dimension
mm
1400x1500x2100
1500x1700x2150
1500x1700x2150
1500x1700x2150
1400x1700x2100
1600x1800x2150
Net weight
kg
1000
1280
1400
1500
Square way
Dovetail way
Specification
Model
M5VA
M6VA
M7VA
M8VA
M5VB
M6VB
Table size
mm
1270x254x90
1370x330x99
1370x330x99
1524x360x99
1470x305x90
Travel
Longitude
mm
800
850
1000
1150
1000
1000
Crossward
mm
415
390
500
500
Vertical
mm
430
450
500
500
Travel of spindle quill
mm
150
150
150
140
Max.distance from the spindle nose to table
mm
590
570
680
690
560
Spindle
Rotation speed
RPM
Step speed:80-5440 (16 grades)
Variable speed:70-3600
Inverter speed:0-4200
Taper
NT40
NT40
NT40
NT40
Rated power
HP
5
5
5 (7.5 optional)
7.5
Tilt angle
Forward and backward
0º (±45ºoptional)
±45º
±45º
0º
Left and right
±90º
±90º
±90º
±90º
Dimension
mm
1500x1700x2450
1600x2000x2450
2000x2000x2750
2300x2000x2900
1500x1900x2450
Net weight
kg
2000
2200
2700
2900
2100
2300
Square way
Dovetail way
