Travel On X/Y/Z:
Table Size
Type:
Worktable Milling Machine
Object:
Tool
Automatic Grade:
Semiautomatic
Precision:
Precision
Product Description

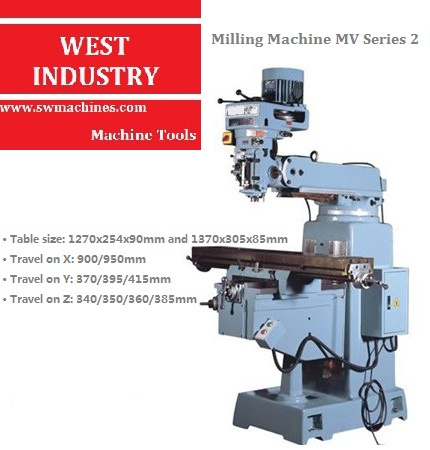

Product Name: Milling Machine MV Series 2
Performance:
·Standard Milling Machine; ·Multi-purpose for workshop, single part production, design and training; ·For electronic parts, mould and hole, slot and frame processing; ·Unique spindle assembling technology, greatly improve the efficency and accuracy of cutting; ·Spindle tolerance is 0.005mm; ·Variable speed and Step speed is avaibale; ·Can be equiped with digital readout.
Standard Accessories:
·Way cover ·Working light ·Tool and toolbox
Optional Accessories:
·Clamping kit ·Milling chuck ·Digital readout
Main Technical Data of the Milling Machine:
Specification
Model
MV3S
MV4S
MV4SB
MV5S
MV4SA
MV5SL
Table size
mm
1270x254x90
1270x254x90
1270x254x90
1370x305x85
1370x280x90
1370x254x90
Travel
Longitude
mm
900
900
900
950
1000
1000
Crossward
mm
395
395
370
415
370
370
Vertical
mm
350
340
360
385
360
Travel of spindle quill
mm
127
127
127
127
Max.distance from the spindle nose to table
mm
400
400
400
550
470
Spindle
Rotation speed
RPM
Step speed:80-5440 (16 grades)
Variable speed:60-4200
Taper
R8 (NT30)
R8 (NT30)
R8 (NT30), NT40
NT40
Rated power
HP
3
3
3 , 5
5
Tilt angle
Forward and backward
±45º
±45º
±45º
0º (±45º optional)
Left and right
±90º
±90º
±90º
±90º
Dimension
mm
1500x1700x2150
1500x1700x2150
1500x1700x2150
1600x1850x2400
1500x1800x2200
Net weight
kg
1280
1400
1500
1900
1550
Square way
Dovetail way
