Size:
3mm-16mm
Thread:
M5,M6, 1/8, 1/4, 3/8, 1/2
Standard:
GB
Material:
Brass
Connection:
Male

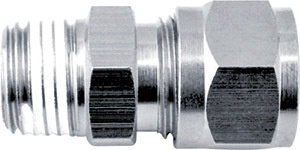

Product Description
FEATURES
1. Used for high pressure environment.
2. Working pressure and temperature depend on tube pressure.
3. Application Tube: metal tubes and Nylon tubes.
4. Fluid Type: water, air, oil, diesel, and other fluids.
MATERIAL CONSTRUCTION
Brass nut: Nickel Plated Brass or Brass Brass bush: Nickel Plated Brass or Brass Brass ferrule: Nickel Plated Brass or Brass Brass nut: Nickel Plated Brass or Brass
SPECIFICATIONS
Operating Pressure -0.8~15 bar. Operating Temperature-10~60ºC. ApplicationAir, water Recommended Tubing MaterialPolyurethane, Nylon, Polyethylene, and Polypropylene TypesStraight, Elbow, Tee, X, Y, etc. CapacityOver 1000000pcs/month Marketing AreaAll over the world
FITTINGS ADVANTAGE
1) Raw Material is HPB 59-1, conforms to country standard.
2) High precision automatic lathe to make the claws not hurt tube surface.
3) 5% tested by water at 10 bar, 100% tested by air and appearance test.
4) Easy to push in and put out on the basis of working pressure assured
5) 1 year quality assurance after shipment.
6) Custom fitting as your drawing or we make drawing as your sample.

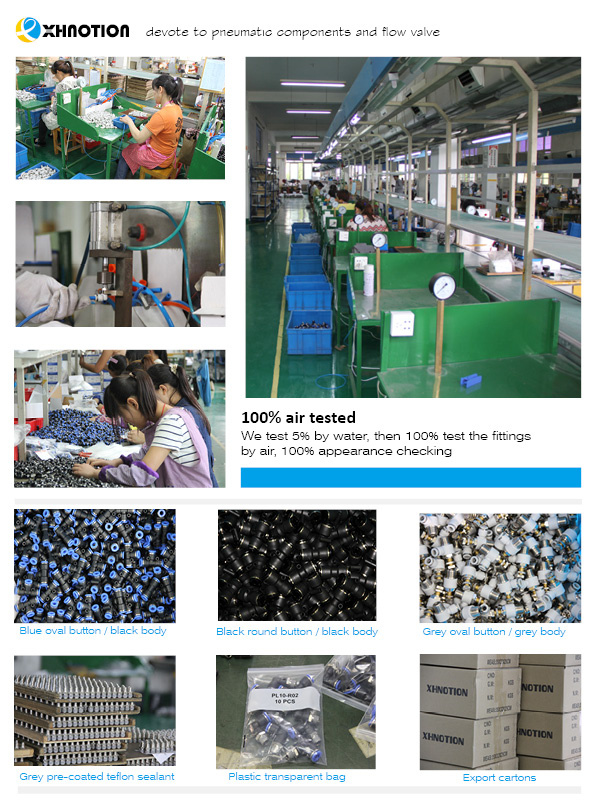

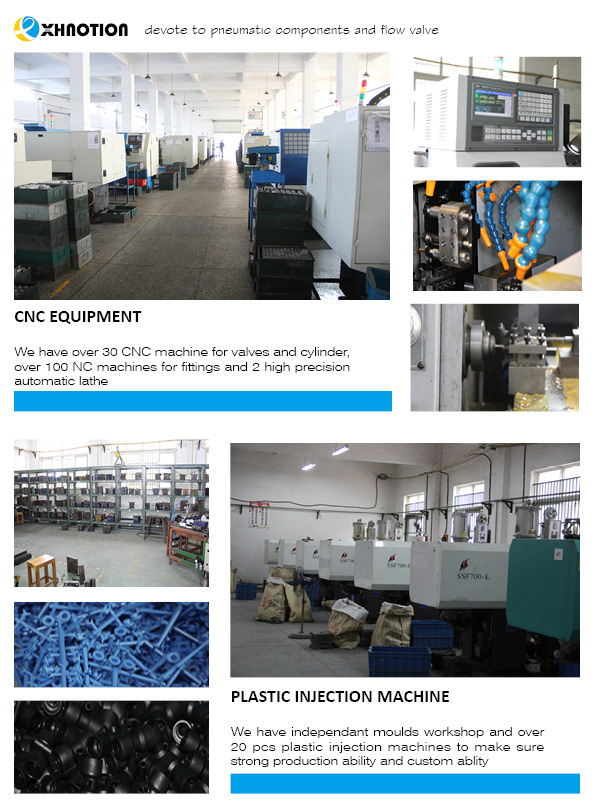

WORKSHOP SHOW
WHY CHOOSE US?
1) We offer one stop solution. Over 5000 items for you to save efforts and costs.
2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder
FAQ
Packing Transparent plastic bag + white small box + neutral carton + pallet Custom packaging are available, XHnotion brand packaging are available
Shipping : Export port: Ningbo or Shanghai, China Shipping way: by sea, by air, by courier Delivery time 3 days to 30 days depends on actual orders.
Payment Terms We accept T/T, L/C, Paypal, western union,etc.
Samples Policy For regular fittings below 20 pcs, free samples against your courier account or you pick up from us. For custom items, we will discuss by email.
Return Policy We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
For other sizes, please refer to the table below.
Model [ΦD-T]
Tube(Metric)-Thread(R)
Tube(IMetric)-Thread(G)
UPC 4-01
UPC 10-02
UPC 4-G01
UPC 10-G02
UPC 4-02
UPC 10-03
UPC 4-G02
UPC 10-G03
UPC 6-01
UPC 10-04
UPC 6-G01
UPC 10-G04
UPC 6-02
UPC 12-02
UPC 6-G02
UPC 12-G02
UPC 8-01
UPC 12-03
UPC 8-G01
UPC 12-G03
UPC 8-02
UPC 12-04
UPC 8-G02
UPC 12-G04
UPC 8-03
UPC 8-G03
XHnotion, is a leading manufacturer of pneumatic components and flow valve in China. Our products include below items
Pneumatic fittings, plastic, brass, stainless steel push in fittings
Pneumatic quick coupling, air tool kits, air blow gun
Pneumatic muffler, silencer, filter
Air hose- PU tubes, nylon tube, PE tube, PTFE tubes, etc
Solenoid control valve for water, air, diesel, oil
Air cylinder, air preparation, pneumatic directional valve
Modular hose, water push in fitting
Ball valve, brass connector
WHY CHOOSE US?
1) We offer one stop solution. Over 5000 items for you to save efforts and costs.
2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder
Our production is strictly under the control of ISO9001: 2000, and many products get CE approval. Since founded in 1997, we have marketed over 70 countries and firmly established our reputation for the excellence of our design, quality, service and pricing.
