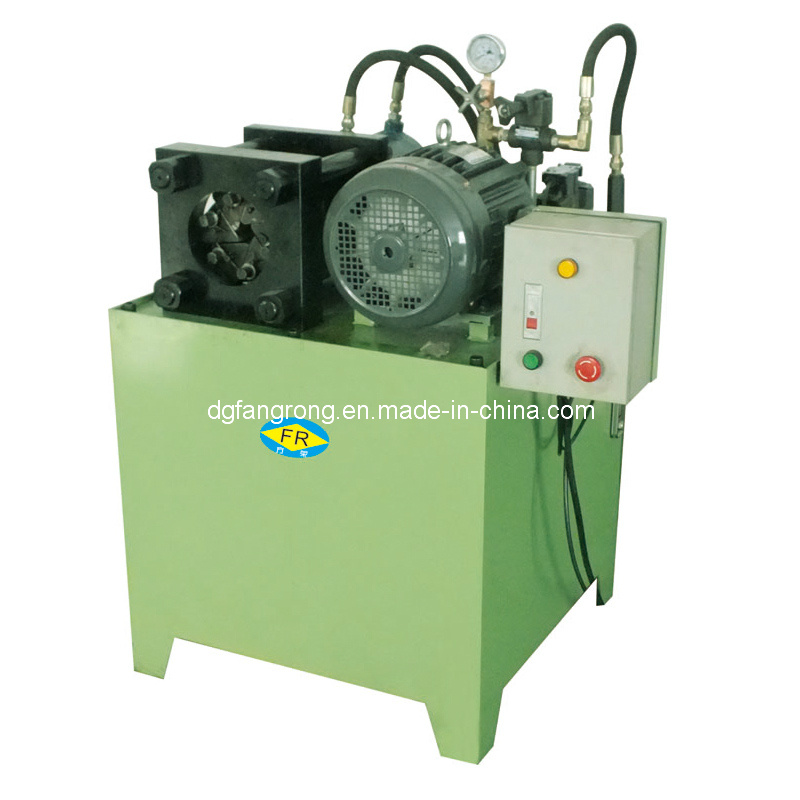

Shrinking Machine is suitable for metal tubes and pipes become small and can be into the die. The end of pipe which need to shrinking extend into the middle of extruded dies, the pipe will become smaller by extruded dies.Only applied for pipe and tube.
There are two manners of shrinking, one is ball-type, other one is hydraulic type.This type Shrinking Machine is belong to hydraulic type shrinking machine and making the diameter more smaller than before, then into the drawing dies to finish the drawing processing.
The end of pipe which need to shrinking extend into the middle of extruded dies, the pipe will become smaller by extruded dies.
Advantage: 1. Semiautomatic operation 2. Low noise and durable 3. Stable performance,6 moulds 4. Good quality, best service 5. Taiwan technology 6.High precision and accuracy
Certification: SGS, ISO 9001-2008
Shrinking diameter
6-40*T3.0mm
Die nos
6 dies
Die's material
Cr12MoV
Die's specification
190*100mm
Die length
100mm
Hydro-cylinder's specification
160*100mm
System pressure
21MPa
Workpiece speed
6-8pcs/m
Motor power
5.5kw-4N
Voltage power
380V 50HZ
Weight
500kg
Dimension(L*W*H)
1200*600*900
Dong Guan Fang Rong Machinery Factory, founded in 2000, is a professional manufacturer that integrates development, production and sale. Fang Rong is special in production thread processing equipment and precision cold drawing machines. In 2005, Fang Rong factory passed the ISO9000: 2001 quality system certification, and received a number of patents. Now, Fang Rong is developing and selling various machines, such as
1) Thread processing equipment:
A, thread rolling machines (rolling machines)
B, threading machines (air pressure, hydraulic)
C, thin tube rolling machines (lamp rolling machines)
D. The whole tooth machines
E. Tapping machines of six-axis
2) Precision cold-drawing equipment:
A, drawing machines,
B, straightening machines,
C. Pointing machines
Over the years, our goal has been to create professional and classic equipment, first-class products and best service to achieve product specialization, service professional and team specialization. After through Fang Rong people's unremitting efforts, our products are very popular at home and abroad. The prime quality and the best service are confirmed and recognized by customers in China and abroad.
