Fully Automatic:
in-Line
Product Description
APPLICATION: It is suitable for PP, PS, PLA, PET, PVC etc material. It mainly produce the containers such as water cups, drinking cups, milk cups, bowls etc.
FEATURE: Rapid mould changing device Buffer design is adopted for the width of chain holder thus eliminating chain binding condition resulting from insufficient heating of sheet. Up and down ceramic heater are adopted for heating with several sets of SSR and PID temperature control Automatic stacker system PLC and humanized color touch screen control operation interface. Mould automatic memory system.

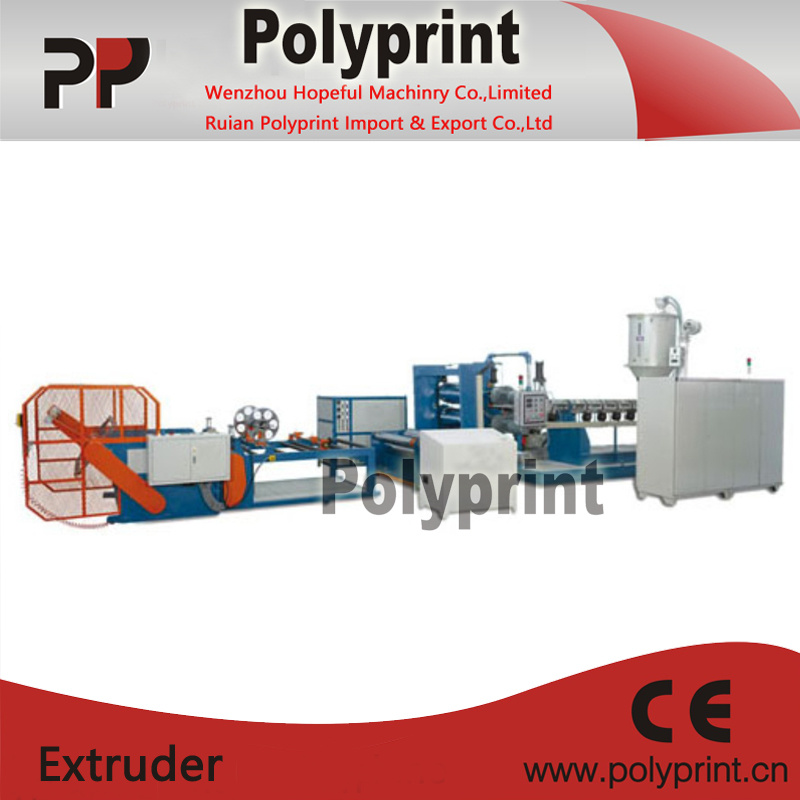

In-line Sheet Extrusion Line
1
Suitable Material
PP, HIPS
2
Sheet Thickness
0.4-2.0 mm
3
Max. Sheet Width
750 mm
4
Max. Output (Raw Material)
400 kgs/h (Sheet Thickness > 0. 8 mm)
5
Power (Industry Use)
3Phx380V/50Hz
6
Water Temperature
20- 25°
7
Water Pressure
2-4 bar
8
Air Source
6-8 bar, Air Consumption <50 L/min
9
Total Install Power
250 kw
In-line Cup Thermoforming Machine
1
Max. Forming Area
685×320mm
2
Max. Forming Depth
130mm
3
Max. Clamping Force
300KN
4
Dry Cycles Speed
42 Cycles/min
5
Sheet Width Range
550-720mm
6
Sheet Thickness
0.35-2.0mm
7
Max. Roller Diameter
Φ1000mm
8
Air Pressure
0.7-0.85mpa
9
Water Consumption
50 L/min
10
Air Consumption
3000 L/min
11
Heating Power
130kw
12
Machine Weight
11500kg
13
Dimension
12500×3650×3550mm
14
Power (3 Phase 3 Wire)
3×380V+NP+PE.50HZ
Wenzhou Hopeful Machinery Co., Limited specializes in manufacturing plastic PP and PS extruder machine and thermoforming machine. Such as plastic sheet extrusion line, thermoforming machine, and on-line cup making machine with a batch of semi-senior and senior technical experts, our company has obtained ISO9001 quality system certificate which combined design, development, manufacture, installation and service in to system.
Our products are mainly exported to America, Europe, southeast Asia and southwest Africa. Most of our products are accepted and favored by our clients from all over the world. With the principle of scientific management, our company actively carries out ISO9001 quality management system and implements this standard strictly.
The slogan that best epitomizes our approach to quality is: Service must run ahead of time, the customer is our priority, take technology as our lead, and production must be carried out meticulously and with care. Based on these principles our company has been successfully improving the quality of its products, talking active measures and making reasonable use of its resources.
What we are now striving for is to transform our company into the No 1 packaging manufacturer by exploiting our qualities and promoting ourselves publicly, building ourselves a better profile within the industry. We are looking for serious partners to join us in fruitful commercial ventures. Contact us today to find out more.
