Automatic Grade:
Automatic
Precision:
High Precision
Type:
Surface Grinding Machine
Controlling Mode:
CNC
Processing Object:
Mould
Product Description

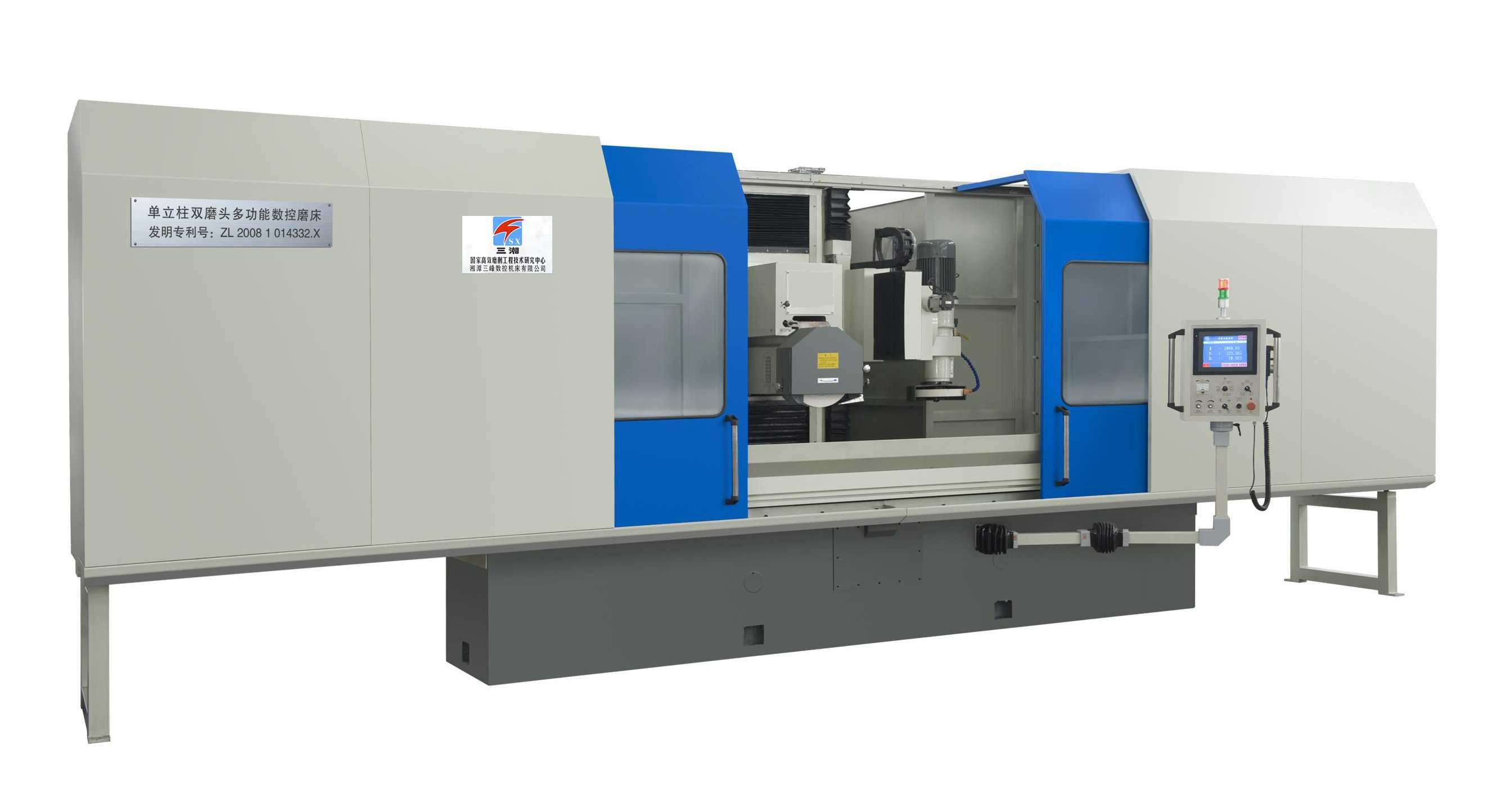

Usage and structural performance "This machine is widely used for grinding of aerospace industry, military industry, equipment manufacturing, precision measuring tool, mould, electric components, hardware steel parts, casting and non-ferrous metal material. Especially suitable for batch production of polyhedral processing of guideway of lateh production enterprise. " This machine uses invention patent technology. It adopts gantry column, the apron make machine has good stability and strong power. "This machine adopts non-interfering horizontal and vertical wheelheads which realizes auto control of up and down and cross feed of the two wheelheads, and flat surface, guide surface, curved surface machining can be done in one-time clamping which improved working accuracy and efficiency. " It adopts independent oil station. Longitudinal travel of table droved by hyraulic, and stepless speed. It has hydraulic angle grinding wheel dresser for wheel dressing when grind guideway. "Vertical wheelhead can rotate 120 degrees in the vertical plane. It adopts precie FAC rolling bearing stucture with hig precision and suitable for various size of grinding wheel
"
Main specification
Unit
MLK7160× 15/13
MLK7160× 20/18
MLK7160× 30/27
Table
Table size(W× L)
mm
600× 1600
600× 2000
600× 3000
Longitudinal travel (Hydraulic)
mm
2200
200-2750
300-3500
Table speed (stepless)
m/min
3.0-25
3.0-28
3.0-25
Max. load (Including electromagnetic chuck)
kg
1200
1700
2800
electromagnetic chuck size (W× L)
mm
600× 1500
600× 1000× 2
600× 1000× 3
Grinding head
Max. grinding size of workpiece of horizontal wheelhead (W× L× H)
mm
600× 1500× 500
600× 2000× 550
600× 3000× 600
Max. grinding size of workpiece of vertical wheelhead (W× L× H)
mm
650× 1300× 500
700× 1800× 550
700× 2700× 600
Cross feed of horizontal wheelhead
mm
0-10
0-10
0-10
Cross travel of horizontal wheelhead
mm
650
650
650
Cross feed of vertical wheelhead
mm
650
700
700
Distance from horizontal wheelhead spindle-axis to table surface
mm
200-700
200-750
200-800
Indexable Angle of vertical wheelhead
°
120° (± 60° )
120° (± 60° )
120° (± 60° )
Min. feed of electronic hand wheel
mm
0.005
0.005
0.005
Size of horizontal wheelhead (O. D× W× I. D)
mm
400× 50× 203
400× 50× 203
400× 50× 203
Size of vertical wheelhead (O. D× W× I. D)
mm
300× 40× 75
300× 40× 75
300× 40× 75
Motor power
Motor power of horizontal wheelhead
Speed
kw
r/min
11
1450
11
1450
11
1450
Motor power of vertical wheelhead
Speed
kw
r/min
4
1450
4
1450
4
1450
Motor power of hydraulic pump
Speed
kw
r/min
5.5
960
5.5
960
7.5
960
Flow of hydraulic pump
L/min
100
100
80/80
Total capacity of electric equipment
kVA
25
25
30
Working accuracy
Working surface to base level parallelism
mm
300: 0.005
300: 0.005
300: 0.005
Surface roughness of workpiece
μ m
Ra0.63
Ra0.63
Ra0.63
Base parameter
Overall dimensions(L× W× H)
mm
7000× 2070× 2505
7680× 2070× 2505
8380× 2070× 2505
Packing size(L× W× H)
cm
457× 223× 280
457× 223× 280
557× 223× 280
Net/Gross weight
kg
8500
9500
13500
Standard Accessories
electromagnetic chuck
Grinding wheel dresser()
balancing shaft for grinding wheel
Level blocks
Grinding wheel
Flange for grinding wheel
Wheel balancing device
Standard accessories
