Automatic Grade:
Manual
Precision:
Normal Precision
Type:
Surface Grinding Machine
Controlling Mode:
Artificial
Processing Object:
Mould
Product Description

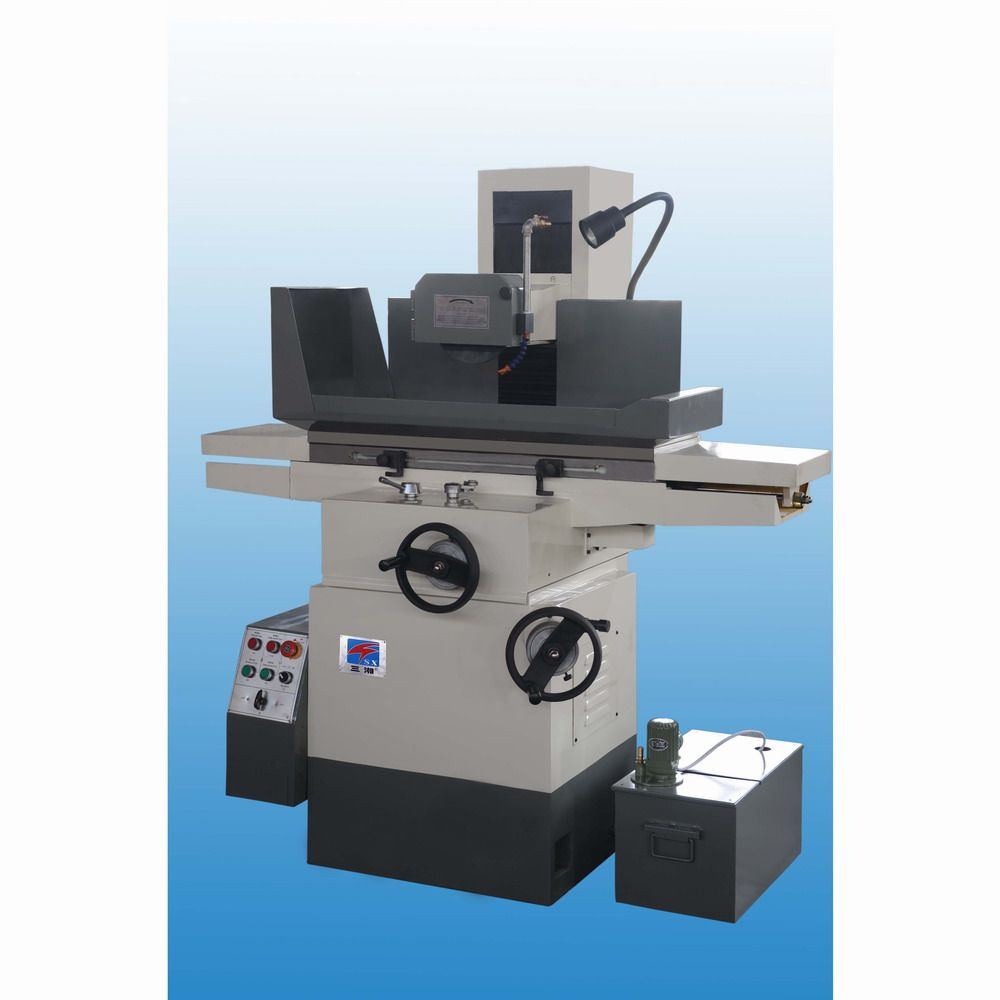

Usage and structural performance
This machine is widely used in manufacturing of equipment, precise measuring implement, electronic component, hardware, steel piece of mechanical maintenance, castings and machining of nonferrous material as well as practice teaching.
This machine is designed for use with ease, cross slide-move type, auto lubrication, stable performance;
Longitudinal traverse of working table is hydraulically driven with stepless shifting. Manual feeding of cross slide and grinding head, high sensitivity and strong loading ability;
High-precise angular contact bearing is adopted for the shaft of grinding wheel, and monolithic thrust-type cylinder structure designed;
Easy use, high accuracy, save-energy, cost performance.
Main Specifications
unit
M7125/T
working table
size of table(W× L)
mm
250× 500
Max grinding size(W× L× H)
mm
250× 500× 300
Longitudinal traverse of table(hydraulic)
mm
200 - 550
speed of table(stepless)
m/min
3-23
T slot on the table(number/width)
mm
1/14
Max loading of table(including electromagnetic chuck)
kg
146
size of electromagnetic chuck(W× L)
mm
250× 500
grinding head
distance from centre of grinding wheel to table
mm
100-400
cross traverse of working table(cross slide)
mm
265
crossfeeding of cross slide(manual)
feeding rate/rotation of hand wheel
each scale value of hand wheel
mm
mm
4.00
0.02
vertical feeding of grinding wheel(manual)
feeding rate/rotation of hand wheel
each scale value of hand wheel
mm
mm
2.00
0.01
size of grinding wheel(Od× width× Id)
mm
Φ 200× 16× Φ 32
motor power
motor power of grinding head
kW
1.5
rotate speed
r/min
2850
motor power of hydraulic pump
kw
1.1
totate speed
r/min
960
flow of hydraulic pump
L/min
12
volume of electric equipment
KVA
4
accuracy
parallelism of machined surface to base level
mm
300: 0.005
surface roughness of workpiece
μ m
Ra: 0.63
size & weight
size of machine(L× W× H)
mm
1600× 1100× 1600
packing size(L× W× H)
cm
188× 134.4× 194.5
net weight
kg
1000
standard accessories
electromagnetic chuck
grinding wheel dresser(diamond-pen not included)
balance shaft of grinding wheel
leveling block
grinding wheel
flange of grinding wheel
balance stand of grinding wheel
standard tools(refer to packing list)
