New Condition and Extrusion Blow Moulding Blow Moulding Type Pet Blowing Machine

New Condition and Extrusion Blow Moulding Blow Moulding Type Pet Blowing Machine
Price: US $ 50000-200000/Piece
Trade Terms: FOB,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: CPJ
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Materail: 304
Weight: 5t ~ 18t
Type: Extrusion Blow Molding Machine
Raw Material: PET
Making Method Of Parison: Multilayer Blowing
Automation: Automatic
Computerized: Computerized
Certification: ISO9001:2008

Product Description

Introduction & Process:

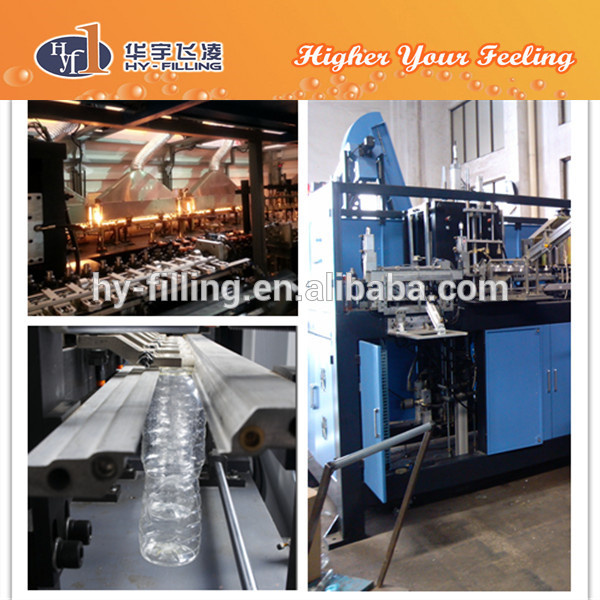

The full automatic rotary stretch blow molding machine is widely used for the blowing plastic container (including hot Filling bottle), suitable for the product of water, tea drink, dairy, fruit juice, carbonated beverage and pharmaceutical Injection etc. With the structure of multi-mold in one machine, can complete the actions of preform unscrambling, Preform feeding, heating, feeding, stretch, blowing, cooling and bottle conveying etc full automatically. The main Components on the machine are of international famous brand. The machine owns the advantage of high automation, Reliable and stable operation and low power consumption.
NameItem Data
Specification  of  BottleBottle  Capacity 0.2~2.0Liter
Max.   Body  Diameter 120mm
Max.   Height  of  Bottle 320mm
Max.   Diameter  of  Bottle  Mouth50mm
Max.   Preform  Height 145mm
Mould Mould  Cavity 16Cavities
Output500ml  bottle  (Cold  filling  bottle)20, 000pcs/h
Rate  of  finished  product ≥ 99.7%
Cooling  SystemWater  inlet  temperature 10
Water  inlet  pressure 5.0~6.0Mpa.
Flow  Rate 250L/min
Cooling  Capacity20P
Air  SourceHigh  pressure 3.5~4.0Mpa
Blowing  air  flux 14m³ /min  (500ml)
Low  pressure 0.8~1.0Mpa
Blowing  air  flux 3.5~7.0m³ /min
Filtering  grade 0.01micron
Humidity Dehumidified
Dimension  of  MachineL  ×   W  ×   H  (Blowing) 2350× 3310× 3150mm
Weight  (Blowing)9000KGS
L  ×   W  ×   H  (Oven) 4200× 1250  × 2200mm
Weight 2000KGS
Motor  PowerTotal  Power 216kW
Main  Motor 4kW
Really  Power  Use35-70kw

HY-FILLING, as one of famous beverage and dairy packaging machinery manufactures in China, it is located in Zhangjiagang city which is very near Shanghai with beautiful scenery and convenient transportation. Owning the top-ranking R&D center and more than 20 senior engineers and 30 senior technicians, our products has covered all the domestic markets. Furthermore, we have exported our products all over the world, such as American, Argentina, Brazil, Russia, Poland, Turkey, Iran, South Africa, and Southeast Asia, etc, and more than 600 filling lines running all over the words till to now. We also offer our customers with the best technical plan, superior products, and perfect after-sale service to optimize the process of production, and supply our customers with reliable machinery. With persistent development, now our company is becoming larger and larger, thanks for your support and trust on our machinery. We consider "Exploring the highest technology in machinery industry; Creating a brilliant future in this field" as our company policy. And we deeply believe that tomorrow of HUAYU COMPANY will be much more brilliant.

Main Products:

1.2000-48000 BPH Mineral/Pure Water Bottling Line;

2.2000-40000 BPH Juice Bottling Line;

3.2000-40000 BPH Carbonated Beverage Bottling Line;

4.3000-40000 BPH Beer Bottling Line;

5.6000-30000BPH Aluminium Can Filling Line;

6.120-2000 Barrels/Hour 3-Gallon & 5-Gallon Filling Line;

7. Edible Oil Filling Line;

8. Aseptic Brick Packing Machine;

9. Aseptic Pouch Packing Machine (Pillow Type);

10. PET Preform Injection Machine;

11. Bottle Blow Moulding Machine;

12. Water Treatment;

13. UHT Plant;

14. Carbonating Mixer;

15. Bottle Unscrambler;

16. Film Shrink-wrapping or Carton Box Packaging Machine;

17. PA-Depalletizer;

18. Turn Key Project.
HY-FILLING, as one of famous beverage and dairy packaging machinery manufactures in China, it is located in Zhangjiagang city which is very near Shanghai with beautiful scenery and convenient transportation. Owning the top-ranking R&D center and more than 20 senior engineers and 30 senior technicians, our products has covered all the domestic markets. Furthermore, we have exported our products all over the world, such as American, Argentina, Brazil, Russia, Poland, Turkey, Iran, South Africa, and Southeast Asia, etc, and more than 600 filling lines running all over the words till to now. We also offer our customers with the best technical plan, superior products, and perfect after-sale service to optimize the process of production, and supply our customers with reliable machinery. With persistent development, now our company is becoming larger and larger, thanks for your support and trust on our machinery. We consider "Exploring the highest technology in machinery industry; Creating a brilliant future in this field" as our company policy. And we deeply believe that tomorrow of HUAYU COMPANY will be much more brilliant.

Main Products:

1.2000-48000 BPH Mineral/Pure Water Bottling Line;

2.2000-40000 BPH Juice Bottling Line;

3.2000-40000 BPH Carbonated Beverage Bottling Line;

4.3000-40000 BPH Beer Bottling Line;

5.6000-30000BPH Aluminium Can Filling Line;

6.120-2000 Barrels/Hour 3-Gallon & 5-Gallon Filling Line;

7. Edible Oil Filling Line;

8. Aseptic Brick Packing Machine;

9. Aseptic Pouch Packing Machine (Pillow Type);

10. PET Preform Injection Machine;

11. Bottle Blow Moulding Machine;

12. Water Treatment;

13. UHT Plant;

14. Carbonating Mixer;

15. Bottle Unscrambler;

16. Film Shrink-wrapping or Carton Box Packaging Machine;

17. PA-Depalletizer;

18. Turn Key Project.
