North America,South America,Eastern Europe,Africa,Oceania,Mid East,Western Europe
Certification:
ISO9001:2008
Automation:
Automatic
Product Type:
PE Pipe
Computerized:
Computerized
Product Description

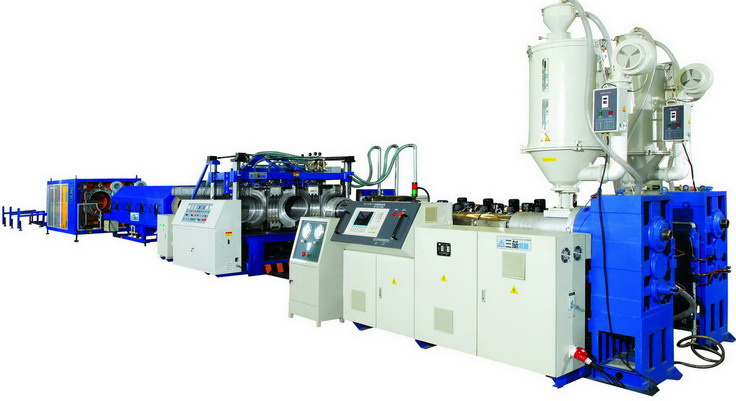

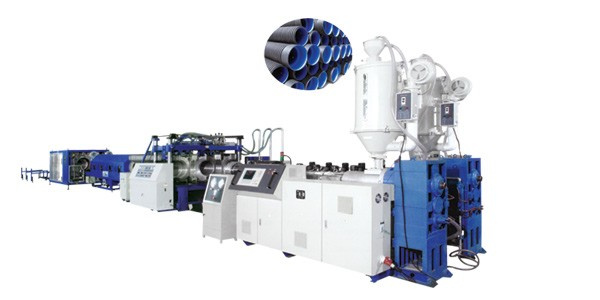

PE, PP, PVC Double Wall Corrugated Pipe Extrusion Line
Application: This kind of corrugated pipe is mainly used for underground water
Properties: It is fully computer controlled, automatic production line. It features high and stable output capacity, and highly automatic operation. Drainage system
Extruder: Different types of extruder can be selected for the prodcution line According to the material properies. For HDPE, you can choose high efficient screw extruder. For PVC, you can choose conica twin screw extruder or paralll twin screw extruder.

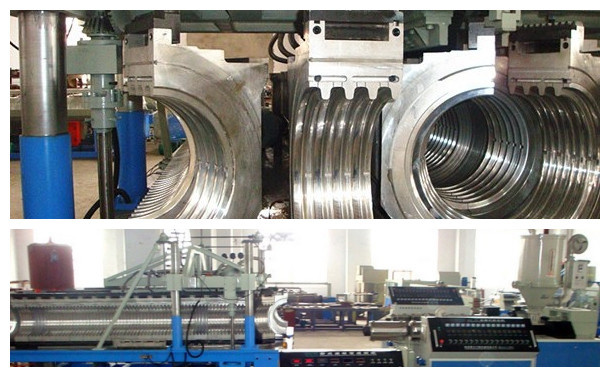

Downstream equipment: The forming system of this line consists of mould and corrugator. The mould blocks can be easily changed and they may have air or water cooling system. The belling process can also be realized on ine. High precision cutting can be guarateed by rotation type cutting machine. The production line can also be equipment with Siemens program logic control system.
Pipe Diameter
Single screw extruder
Forming machine
Spray bath
Planetary saw
Stacker
50-160 (OD mm)
SJ-65 x 30
SJ-90 x 30
SBZ160A
SQG160A
JGJ1120
110-250 (OD mm)
SJ-90 x 30
SJ- 65 x 33
SBZ250
LQM2550
QG250A
JGJC250
200-400 (ID mm)
SJ-90 x 30
SJ- 75 x 33
SBZ500C
LQM6330
QG6330A
JGJA500
500-800 (ID mm)
SJ-90 x 33
SJ-120 x 33
SBZ1000C
LQM1000
QG9030A
JGJ1000
800-1200 (ID mm)
SJ-120 x 33
SJ-150 x 33
SBZ1500C
LQM 1500
QG1500
JGJ1500
Ningbo Mengkwa Machinery Co., Ltd. is located in Ningbo city, Zhejiang Province in China. It is only 10km from Ningbo Airport, and it is around 300km far from Shanghai.
We have more than 16 years experience in producing and export plastic machinery. With advanced technology and exprience, we produce plastic extrusion line: Pipe extrusion line, profile extrusion line, sheet & board extrusion line, foam extrusion line, soft PVC extrusion line, plastic pelletizing and recycle line, rubber extruder and vulcanization production line, and etc.
We will always strive to keep forging ahead and making innovations. Meanwhile, we're willing to establish good relationships with both domestic and international customers to create new heights in the plastic machinery industry.
Our aim: Honesty, serious, excellence, devoting.
Ningbo Mengkwa Machinery Co., Ltd. is located in Ningbo city, Zhejiang Province in China. It is only 10km from Ningbo Airport, and it is around 300km far from Shanghai.
We have more than 16 years experience in producing and export plastic machinery. With advanced technology and exprience, we produce plastic extrusion line: Pipe extrusion line, profile extrusion line, sheet & board extrusion line, foam extrusion line, soft PVC extrusion line, plastic pelletizing and recycle line, rubber extruder and vulcanization production line, and etc.
We will always strive to keep forging ahead and making innovations. Meanwhile, we're willing to establish good relationships with both domestic and international customers to create new heights in the plastic machinery industry.
