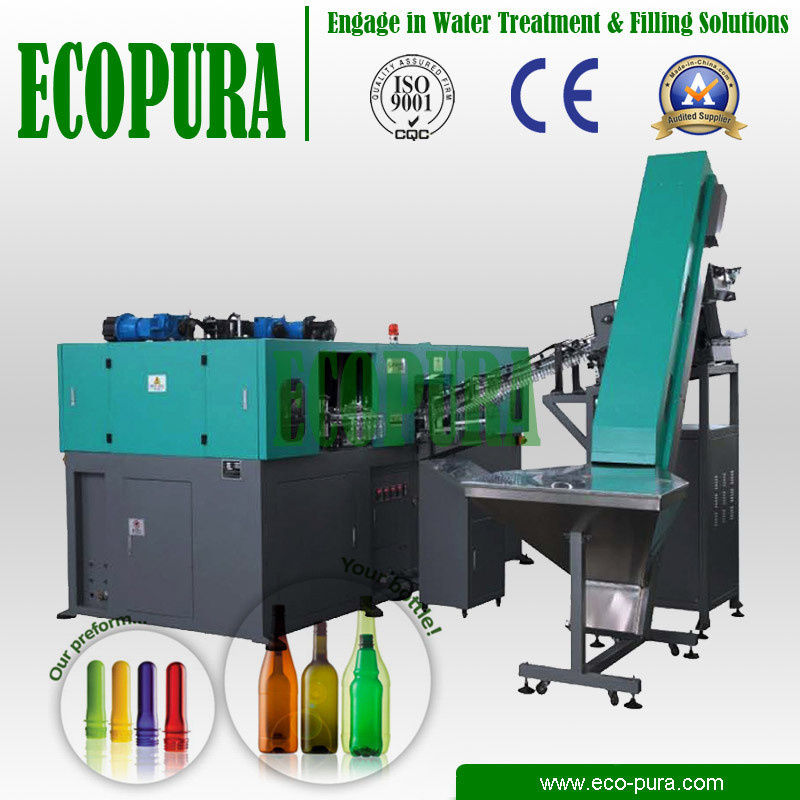

EPC-4000 Full Automatic Blow Molding Machine is suitable for producing PET/PE and PP plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
1) EPC-4000's output reach to 4000 b/hr. Directly saving on the machine more than 1/3 of machine's cost...
2) Power consumption is ONLY 14KW. 50% less than the traditional machine, after using 2 years, the saving on the electirity is the same valve as the machine's cost.
3) Reasonable design, full automatic control, save power and labor. Adopt high quality components. 4) Feeding system carries the preform by robot automatically.
5) Infrared oven heater adopts the quartz lamp to heat the PET tube.
6) Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble - shooting, maintenance and other benefits.
TYPE
ITEM
MEASUREMENT
EPC-4000
END PRODUCT
Material
PET/PP/PE
Volume
L
0.1-2L
Theoretical output
pcs/h
3200-4000
Neck Diameter
mm
15-38
Body Diameter
mm
35-110
MOULD PLATE
Max.mould thickness
mm
180-260mm
Max.Valid area
mm
350*450
Cavity
4
AUXILIARY
HP Air compressor
M3/Mpa KW
1.0m3/min 3.0Mpa 2sets
LP Air compressor
M3/Mpa KW
1.6m3/min 1.0Mpa 1set
Air dryer
M3/Mpa
1.0m3/min 3.0Mpa 1set
High pressure Air tank
NIL
Precision Air filters
2pcs
MAIN MACHINE ELECTRICITY
Power
KW
15
Voltage/Frequency
V/HZ
220-380/50-60
MACHINE SIZE AND WEIGHT
Main Machine dimension
L*W*H
1908*1858*1920MM
Preform Unscrambler
L*W*H
276*106*186MM
Main machine weight
T
3.6
Preform Unscrambler weight
T
0.25
