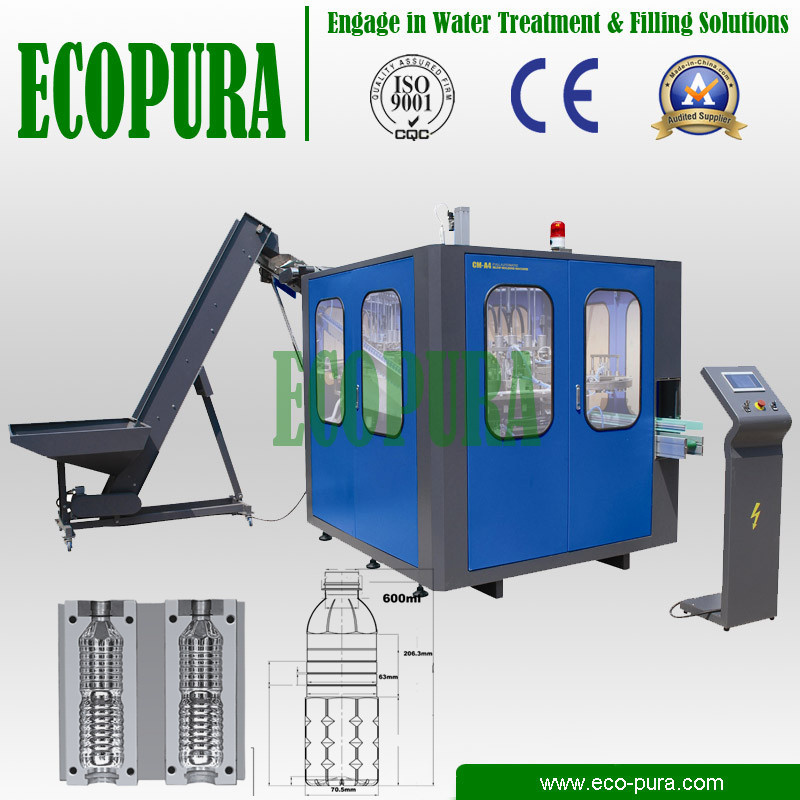

EPC-2000 PET Bottle Blow Molding Machine is suitable for producing PET plastic Containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral Water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
1) Reasonable design, full automatic control, save power and labor. Adopt high quality Components.
2) Feeding system carries the performs by robot automatically.
3) Infrared oven heater adopts the quartz lamp to heat the PET tube.
4) Fully automatic process with low investment, high efficiency, quick and safe operation, easy For trouble -shooting, maintenance and other benefits.
Main part:
Pneumatic part
Valve
FESTO/SMC
Cylinder
Electric part
PLC
LG
Operating system
LG
Relay
OMRON
Infrared thermometer
America Raytek
Note
All of the electrical components adopts CE / UL / CCC approved international advanced high-tech product.
Main parameter:
Model
EPC-2000
Productivity
Depend on bottle design
1800-2000pcs/h
Product type
Body diameter
≤100mm
Height
≤310mm
Neck diameter
18-38mm
Mold
Cavity
2cavity
Mold thick
240mm
Mold
260*240*370mm
Main machine power
Electrical source power
380V/220V 50/60Hz
Rated Power
25KW
Really use power
6-10KW
Air source
LP air compressor
1.0 m3/min 10kg
HP air compressor
1.4 m3/min 30kg
Air dryer
1.0 m3/min 30kg
Cooling water
Cooling water
10L/min
Size
L*W*H
1910*1858*1935mm
Weight
2000Kg
Auxiliary equipment ( pre-form unscrambler )
L*W*H
2000*950*2480mm
Weight
250Kg
Resin available
PET
