Production Name:

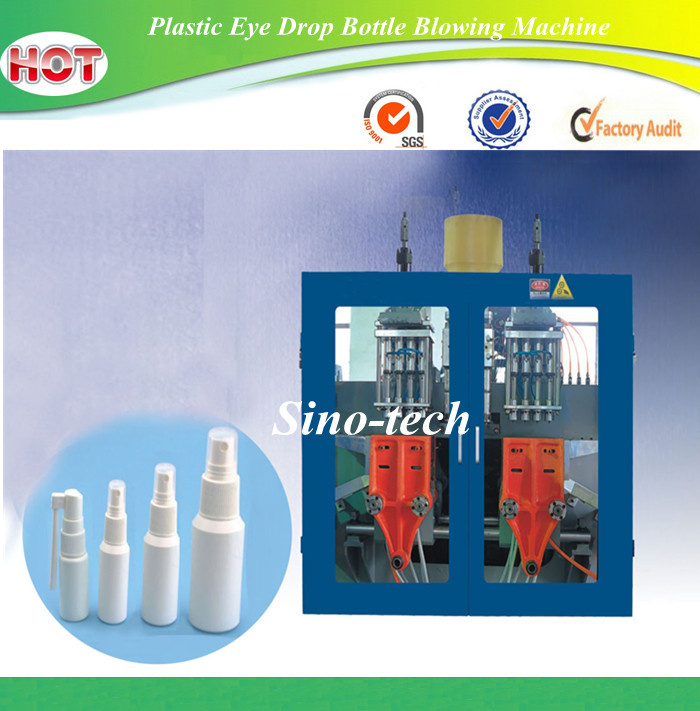

Plastic Eye Drop Bottle Blowing Machine
Type:
Extrusion Blow Molding Machine
Raw Material:
PET
Making Method Of Parison:
Extrusion-Blow Molding
Automation:
Automatic
Computerized:
Computerized
Certification:
ISO9001:2008
Product Description
Plastic Eye Drop Bottle Blowing Machine (TCY50 series) TCY50 series full automatic blow molding machine is specialy design for the production of various plastic children toys in all shapes and widely materials. Mechanical-double-arm clamping system ensures mould being tightly colsed under great pressure and high temperature.
Equipment with silencer and oil system to reduce the noise and friction. Electricity saved, energy saved and speed more faster. The max. Size for mold: 350X420(mm) For more information about the machine, please don't hesitate to contact us.
Technical Parameters
Specifications
TCB501CD-A series
TCY501CD-B series
Suitable Material
PVC,PETG,PC,PP^..
PVC,PETG,PC,PP^..
Max container capacity
L
1
1
Number of die
set
1
1
Output(dry Cycle)
pc/hr
850X2
850X2
Machine Dimension L×W×H
M
2.8X2.2X2.6
2.8X2.2X2.6
Total weigh
ton
4.5
5.5
Clamping Unit
TCB501CD series
TCY501CD series
Clamping force
KN
35
35
Platen opening stroke
mm
138--368
138--368
Platen size
mm
320X420
338X450
Max mould size(W×H)
mm
350X420
350X420
Mould thickness
mm
145--210
145--210
Power
TCB501CD series
TCY501CD series
Max drive
KW
16.5
16.5
Total power
KW
28.5
28.5
Fan power for screw
KW
0.36
0.36
Air pressure
Mpa
0.6
0.6
Air consumption
m³/min
0.44
0.44
Average energy consumption
KW
12.5
12.5
Extruder unit
TCB501CD series
TCY501CD series
Screw diameter
mm
45
45
Screw L/D ratio
L/D
22
22
Plasticising capacity
Kg/hr
35
22
Number of heating zone
zone
3
3
Extruder heating power
KW
8.8
8.8
Extruder driving power
KW
11
11
Die-head
TCB501CD series
TCY501CD series
Number of heating zone
zone
2--4
2--4
Power of die heating
KW
3.6
3.6
Max die-pin diameter
mm
40
40
Center distance of double die
mm
Center distance of tri-die
mm
Center distance of tetra-die
mm
60
60
Center distance of 6-die
mm
60
60
Upward-Downward of the pedestal
TCB501CD series
TCY501CD series
Upward-downward distance
mm
190
190
The speed of Upward-downward
mm/min
30
30
Voltage
V
380/50HZ
380/50HZ
Voltage up and down range
%
±5
±5
Electrical Equipment
TCB501CD series
TCY501CD series
Touch screen man-machine interface
HITECH
HITECH
PLC
MITSUBISHI
MITSUBISHI
Transducer
TAIDA FROM TAIWAN
MITSUBISHI
Temperature controller
OMRON
OMRON
Low pressure electrical
YangMing
YangMing
Relay
Schneider
Schneider
Button switch
Schneider
Schneider
Electricity machine
SIEMENS
SIEMENS
Contactor
Schneider
Schneider
Hydraulic Pressure Part
TCB501CD series
TCY501CD series
Oil pump
HICH-TECH
YUKEN
Hydraulic pressure valve
HICH-TECH
YUKEN
Hydraulic pressure tube
KIMBERLEV
KIMBERLEV
Airproof
VALAVA
VALAVA
Air Drive Part
Air diver component
AIRTAC
FESTO
