Belling Range:
110mm-250mm
Heating Method:
Ceramic Heating
PLC:
Siemens
Pipe Length:
3m-6m
R Type Forming Method:
Vacuumm Pump
Working Method:
Online with Extrution Line
Product Type:
PVC Pipe
Automation:
Automatic
Computerized:
Computerized
Product Description

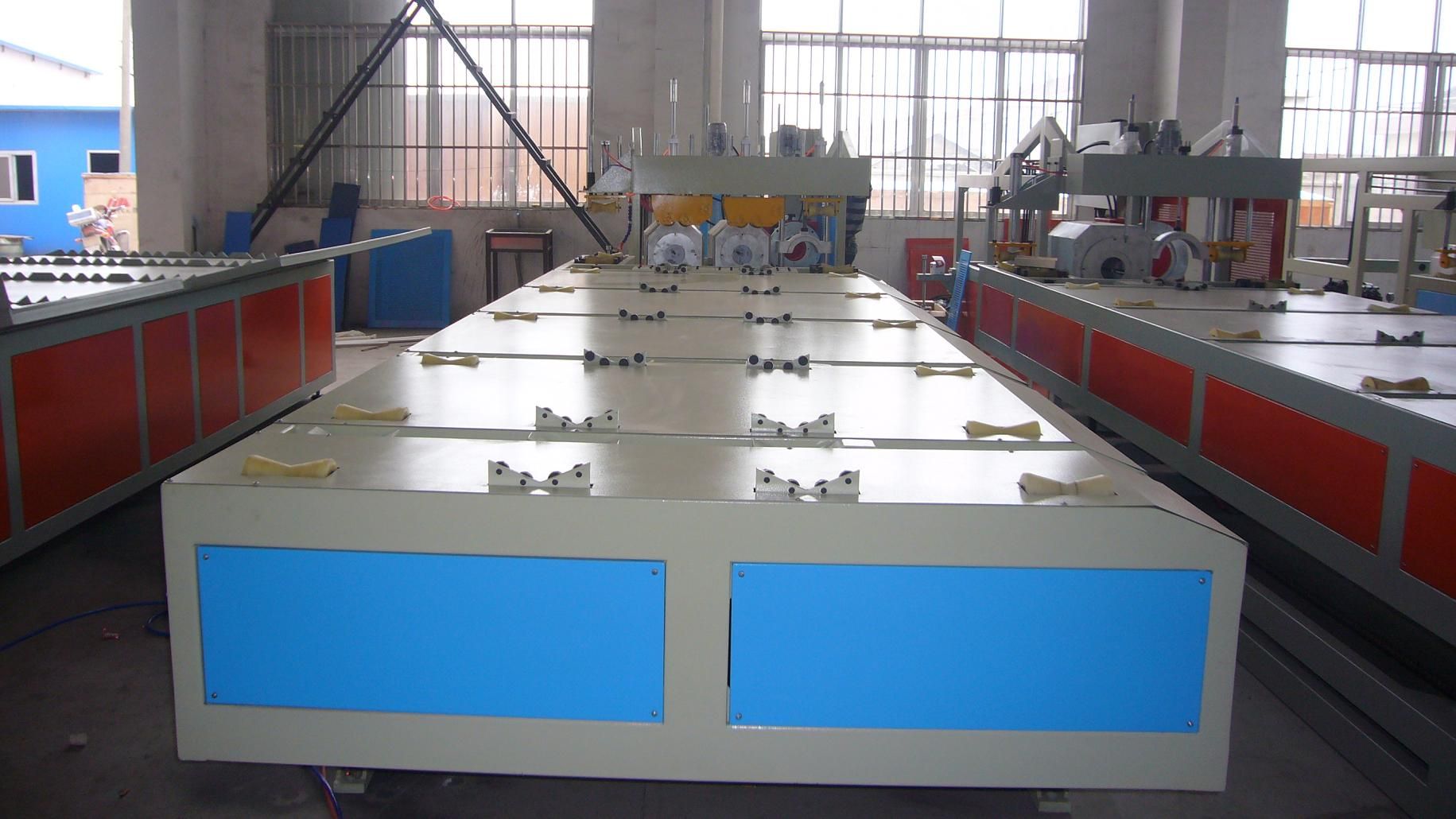

SGK250 Double-oven PVC Pipe Auto Socketing Machine/belling machine:
It is specially used for belling of PVC pipes with ODΦ 110-250mm.
The pipe belling type: Straight type and R type. After shaping, both vacuum calibration technology inside the mould and force air/water cooling outside of pipe are adopted to ensure precise belling size. The machine can be used on complete extrusion line with PLC control.
If any need, please contact me to my email or cell phone.
Main technical parameters
pipe expand range out diameter
Φ 110-250mm
Belling type
U type, R type and square type
Oil label
No. 46/hydraulic oil
Quantity of heater
2
Heating power
11kw
highest temperature in heater
280 centigrade
Air pressure
0.4~0.6Mpa
Cooling water pressure
0.2~0.3Mpa
Total power/Capacity
28kw
Pipe length
3-6m
Center height
1000mm± 50mm
Machine set weight
3.6T
Dimension of machine
7400x1800x1850mm
Zhangjiagang Yusheng Machinery Co., Ltd. had been established in 2006, which is the specialized enterprise for producing plastic machinery. The company is located in beautiful scenery, international health city - Zhangiagang, near to Shanghai, Suzhou, Nanjing, and the transportation is convenient. The company has the first-class technology, which gathers the scientific research, development, production, sale, service, extroverted management.
The company mainly has the plastic pipe belling machine, the belling mold, the corrugated pipe production line, big caliber PVC drains, foul drainage production line, the PE big caliber coal gas, supply and drain pipe production line, the plate production line, palletizing production line, the plum blossom pipe production line, the PP-R pipe production line, plastic extruding machine, the high-speed mixer, the mixer unit as well as various auxiliary equipments.
