Feature:

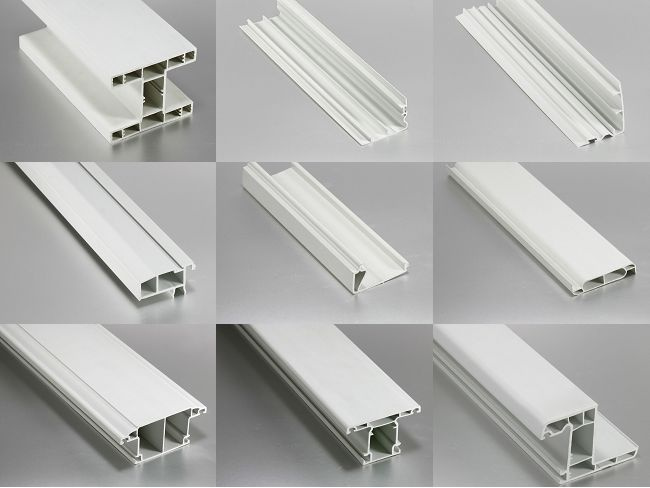

YF Series PVC non-profiled material production line is mainly used in PVC door & window profiled material, wide door plate, window plate, extrusion of multi-holes pipe for passing through lines (four holes, six holes, seven holes, nine holes, etc.
Processing Flow
Raw material+Additive → Mixing → Conical twin screw extruder → Profile extrusion mould → Cooling molding die → Vacuum calibration bath → Belt haul off → Cutter → Stacker → Finished product inspecting and packing
If any need, please contact me to my email or cell phone.
1. PVC raw materials Auto Loader
1 set
2. Heating cooling High speed Mixer unit
1 set
3. Raw materials Mixture Auto Loader
1 set
4. Conical type double screw extruder
1 set
5. Mould/Die head
1 set
6. Vacuum calibration table
1 set
7. Haul off machine
1 set
8. Cutting machine
1 set
9. Stacker
1 set
10. Crusher/Grinder
1 set
11. PVC Pulverizer/Milling machine
1 set
12. Sifter
1 set
13. Film printing machine
Model number
Screw diameter (mm)
Rotational speed of screw (rpm)
Effective work length (mm)
Main motor power (kw)
Heating power of Barrel (kw)
Production capacity (kg/h)
Central height of machine (mm)
Net weight
Overall size (mm)
SJSZ45
45/90
1-45
1070
15
9.6
70
1000
2800
3300*1200*2000
SJSZ51
51/105
1-45.5
1100
22
11.5
80
1000
3000
3360*1290*2100
SJSZ55
55/110
1-40
1200
22
18
150
1000
3500
3620*1350*2200
SJSZ65
65/132
1-38
1440
37
24
250
1000
4000
4235*1520*2450
SJSZ80
80/156
1-36.9
1800
55
36
360
1000
5000
4750*1550*2460
SJSZ92
92/188
1-34.7
2500
110
88
1000
1000
5500
6000*1600*2500
Model
YF180
YF240
YF400
Max. width (mm)
180
240
400
Haul height (mm)
140
Haul force(KN)
15
30
30
Haul speed(m/min)
0.5-5
Auxiliary equipment total power(KW)
18.7
31.6
31.6
Compression air(MPa)
0.6
