Product Description

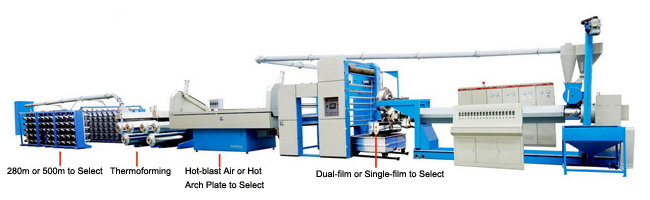

SJ150/1200_500Extruding & Stretching Machine Researched and manufactured by adopting and assimilating German technology, together with the requirement for weaving technology of domestic market, Extrusion and Stretching Machines of this type controlled by micro-computer and frequency conversion governor have many traits such as high speed, high value, high efficiency and high automatic degree. They are widely used for producing container bags, small package bags, transparent bags and other PP and PE woven bags.
Main Technical Parameters of High-speed Flat Extrusion and Stretching Machine
Model
BSJ90/1100-250
BSJ120/1500-220
BSJ150/1200-200
Suitable material
PP/HDPE
PP/HDPE
PP/HDPE
MaxExtrusion output
280kg/h
420kg/h
600kg/h
L/D Ratio of Screw
33:1
33:1
Purging Screw Tube
Rotational Velocity of screw
20-120r/min
20-140r/min
20-120r/min
Width of Die Lip
1100mm
1500mm
1200mm×2
Filter Form
Automatic belt filter
Automatic belt filter
Automatic belt filter
Stretchingform
Up and down double face hot oven (Hot bowed board oven, electricity heating
Up and down double face hot oven (Hot bowed board oven, electricity heating
Up and down double face hot oven (Hot bowed board oven, electricity heating
Quantity of Equipped Spindles
184 spindles
256 spindles
400spindles
Max Linear Speed
250m/min
250m/min
220m/min
Density Scope of Flat Film
60-220tex
60-220tex
60-220tex
Total Power
260kw
400kw
420kw
Measurement
36m*5m*3.6m
44m*5m*3.6m
(35-50)m×5m×3.6m
Total Weight
24T
34T
35T
Introductions:Standards of Flat Film: 2 .5mm, Thickness of Film:About0.05m

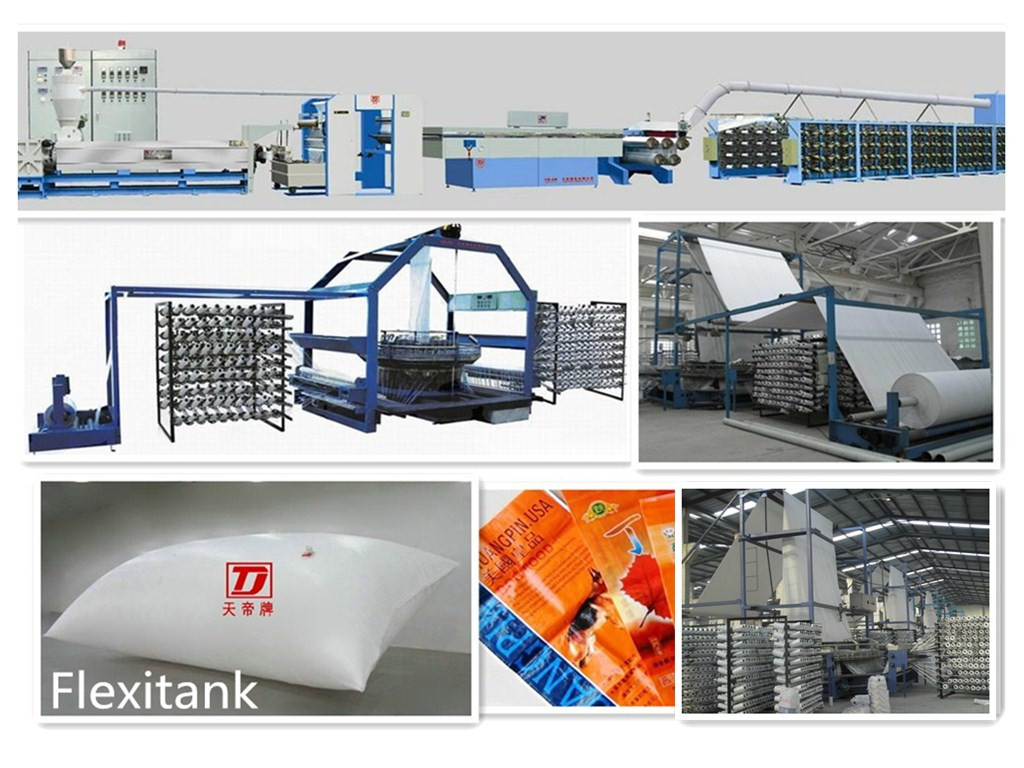

Anhui Tiandi Plastic Machinery Co., Ltd. is located in Tianchang city, established in 1991, specializes in manufacturing of plastic weaving facilities.Our main products are listed below: 1. High speed Four Shuttle Circular Weaving Machine; 2. Small Six Shuttle Circular Weaving Machine (rubbing, trolley wheel and roller); 3. Medium Six Shuttle Circular Weaving Machine; 4. Large Six Shuttle Circular Weaving Machine, Large 8 12 Shuttle Circular Weaving Machine; 5. High speed Plasitc Wire Drawing Machine; 6. Interior Coating Film Facility and Automatic Cutting & Sewing Machine; 7. Cloth Laying Machine; 8. Bag Cutting Machine; 9. Wrapping Machine. Meanwhile, we provide "One stop" production line design for customers, all round staff technology training as well as the upgrading and reconstruction of some identical equipment in Changzhou and Zhejiang.
Depending on independent designed and manufactured high speed plastic wire drawing machine and large circular looms, we have set a sub factory Tiandi Plastic Weaving Factory with main product and service as follows: 1. Flexitank. 2. Kinds of PP Woven Bags. 3. Jumbo bag. 4. Kinds of PP Woven Fabric. 5. Outter PP bag of flexitank and jumbo bag. We are committed to provide wide investment and development space for plastic weaving industry and plastic packaging industry.
Established in 1991, Anhui Tiandi Plastic Machinery Co., Ltd. is the professional manufacturer and exporter of the whole PP/HDPE Woven Sack FIBC/Plastic shopping bag Production line.
Our main products are the High-Speed PP/HDPE Flat Yarn Extrusion Line, High-Speed Circular Loom Woven Bag Making Machine, Inner Coating Machine and the related Auxiliary Machines, such as the Automatic Cutting and Sewing Machines, printing machine and Baling Machine, etc.
With high quality and first-class management, our company has been awarded Hi-tech Enterprises, AAA Fund Credit Enterprise, Contract-abiding trustworthy enterprise. In 2001, our products have passed the ISO9001 quality system authorization., and our self-researched small six-shuttle Circular loom has got national practical new patent(No ZL03279366.9)
With high quality and reasonalbe price, our machinery has been exported to USA, Russia, Thailand, Middle-East, Egypt and so on, spoken highly by our clients for our high quality and perfect after-sale service.
While adhering to the principle of quality first, and reputation formost, we are consistently trying our best to server our customers. Sincerely welcome your visit to our company and cooperation.
Established in 1991, Anhui Tiandi Plastic Machinery Co., Ltd. is the professional manufacturer and exporter of the whole PP/HDPE Woven Sack FIBC/Plastic shopping bag Production line.
Our main products are the High-Speed PP/HDPE Flat Yarn Extrusion Line, High-Speed Circular Loom Woven Bag Making Machine, Inner Coating Machine and the related Auxiliary Machines, such as the Automatic Cutting and Sewing Machines, printing machine and Baling Machine, etc.
With high quality and first-class management, our company has been awarded Hi-tech Enterprises, AAA Fund Credit Enterprise, Contract-abiding trustworthy enterprise. In 2001, our products have passed the ISO9001 quality system authorization., and our self-researched small six-shuttle Circular loom has got national practical new patent(No ZL03279366.9)
With high quality and reasonalbe price, our machinery has been exported to USA, Russia, Thailand, Middle-East, Egypt and so on, spoken highly by our clients for our high quality and perfect after-sale service.
While adhering to the principle of quality first, and reputation formost, we are consistently trying our best to server our customers. Sincerely welcome your visit to our company and cooperation.
Main Technical Parameters of High-speed Flat Extrusion and Stretching Machine
