Raw Material:
PP
Type:
Flat Wire Drawing Machine
Mode:
Vertical
Product Types:
Woven Bag
Automation:
Automatic
Computerized:
Computerized
Product Description

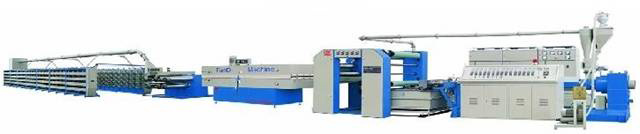

Model SJ120-1500-250 High-Speed Extrusion and Stretching Machine
Based on adopting advanced foreign technology and combining research outcome and experience of years hard work on producing plastic woven b ags, Flat Film Extrusion and Stretching Machine with the brand "Tiandi", is designed and manufactured elaborately. Machines of the series take the led to apply many advanced technology widely such as micro-computer control, frequency conversion adjustment, and automatic change filter etc, which makes all technical indexes reach the top level in China, and advanced level abroad all the time. These machines have many traits such as artistic modeling , scientific structure, high efficiency, low energy consumption etc and are used for shaping PP, HDPE, LDPE and other kinds of flat films.
Main Technical Parameters of High-speed Flat E×trusion and Stretching Machine
Model
BSJ90/1100-250
BSJ120/1500-220
BSJ150/1200-200
Suitable material
PP/HDPE
PP/HDPE
PP/HDPE
MaxExtrusion output
280kg/h
420kg/h
600kg/h
L/D Ratio of Screw
33:1
33:1
Purging Screw Tube
Rotational Velocity of screw
20-120r/min
20-140r/min
20-120r/min
Width of Die Lip
1100mm
1500mm
1200mm×2
Filter Form
Automatic belt filter
Automatic belt filter
Automatic belt filter
Stretchingform
Up and down double face hot oven (Hot bowed board oven, electricity heating
Up and down double face hot oven (Hot bowed board oven, electricity heating
Up and down double face hot oven (Hot bowed board oven, electricity heating
Quantity of Equipped Spindles
184 spindles
256 spindles
400spindles
Max Linear Speed
250m/min
250m/min
220m/min
Density Scope of Flat Film
60-220tex
60-220tex
60-220tex
Total Power
260kw
400kw
420kw
Measurement
36m*5m*3.6m
44m*5m*3.6m
(35-50)m×5m×3.6m
Total Weight
24T
34T
35T
Introductions:Standards of Flat Film: 2 .5mm, Thickness of Film:About0.05m
Established in 1991, Anhui Tiandi Plastic Machinery Co., Ltd. is the professional manufacturer and exporter of the whole PP/HDPE Woven Sack FIBC/Plastic shopping bag Production line.
Our main products are the High-Speed PP/HDPE Flat Yarn Extrusion Line, High-Speed Circular Loom Woven Bag Making Machine, Inner Coating Machine and the related Auxiliary Machines, such as the Automatic Cutting and Sewing Machines, printing machine and Baling Machine, etc.
With high quality and first-class management, our company has been awarded Hi-tech Enterprises, AAA Fund Credit Enterprise, Contract-abiding trustworthy enterprise. In 2001, our products have passed the ISO9001 quality system authorization., and our self-researched small six-shuttle Circular loom has got national practical new patent(No ZL03279366.9)
With high quality and reasonalbe price, our machinery has been exported to USA, Russia, Thailand, Middle-East, Egypt and so on, spoken highly by our clients for our high quality and perfect after-sale service.
While adhering to the principle of quality first, and reputation formost, we are consistently trying our best to server our customers. Sincerely welcome your visit to our company and cooperation.
