Product Description
Ejector Sleeve Extensions

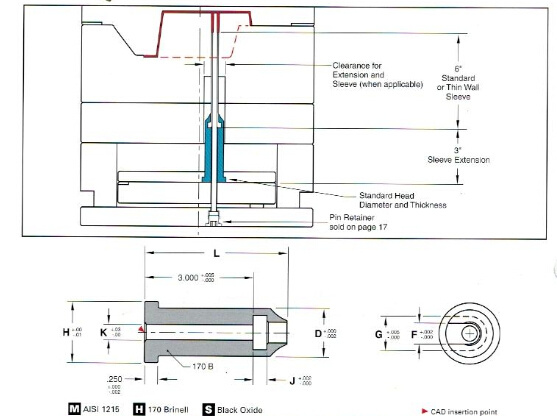

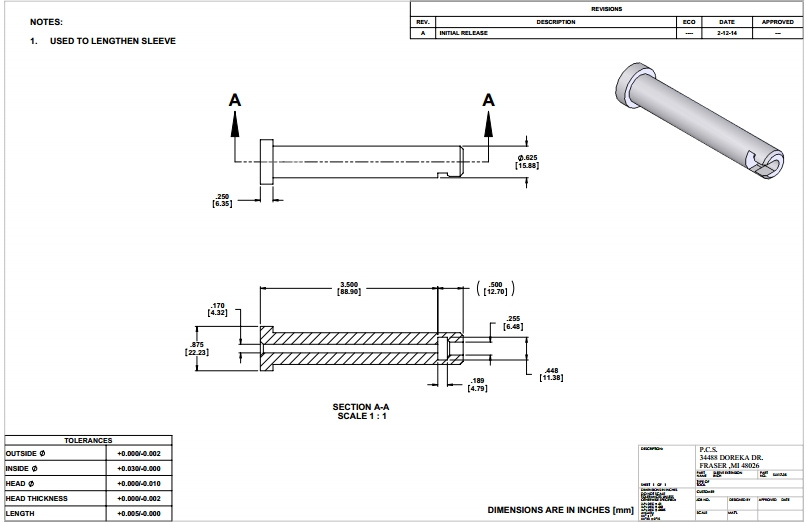

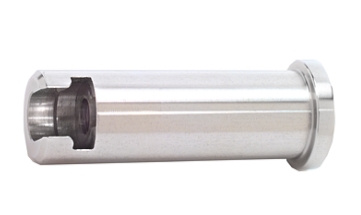

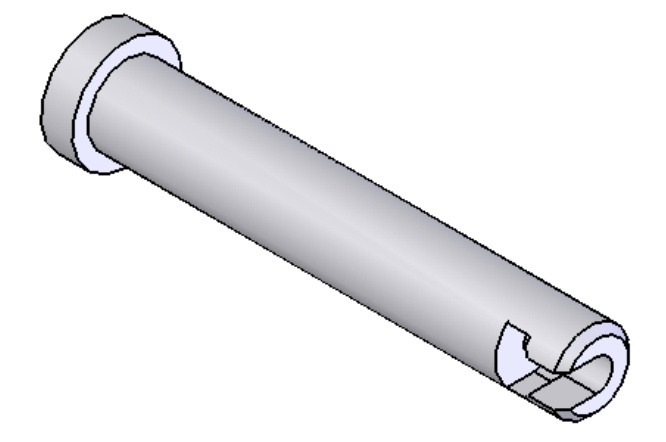

Ejector Sleeve Extensions give added length to sleeves quickly and inexpensively. Four standard lengths are available for more versatility. Standard Sleeve Extensions are designed to be compatible with Standard Sleeves.
Features
Lengthens Sleeves quickly and inexpensively
Four Lengths available
Specifications
* Applicable to all items below
Feature Size / Details
A Pin Clearance Hole Diameter Tolerance+.002 -.000
B Pin Head Clearance Hole Diameter Tolerance+.005 -.000
C I.D. Tolerance+.03 -.00
D Extension O.D. Tolerance+.000 -.002
Etched for IdentificationNo
Extension Head Thickness Tolerance+.000 -.002
H Head Diameter Tolerance+.000 -.010
Head TypeRound
L Shoulder Length Tolerance+.005 -.000
Material Type12L14
T Pin Head Clearance Thickness Tolerance+.002 -.000
Unit of Measure Inch
