Apply To:
Metal Wire
Brand:
Fr
Inlet Diameter:
6.5mm
Otlet Diameter:
2.2mm
Block Number:
6 PCS
Coilling Block:
560mm
Speed:
245m/Min
Average Compressibility:
30%
Total Compressibility:
78%
Motor Power:
6 Sets, 18.5kw, 15kw, 11kw
Type:
LW Pulley Type Metal Drawing Machine
Usage:
Prestressed Steel Wire
Metal Material:
Prestressed Steel Wire
Outlet Diameter:
2.2mm
Max. Number Of Block:
6 Times
Product Description

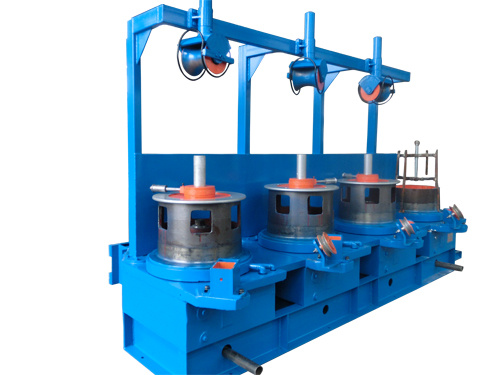

Prestressed Steel Wire Drawing Machine (FR-560)
As wire drawing, reduces the diameter of the wire, wire can be reduced diameter by the drawing die.
Prestressed Steel Wire Drawing Machine is suitable for (bronze. Stainless steel. Iron. Silver. Aluminum) wire material.
Prestressed Steel Wire Drawing Machine is suitable for the ferrous metal wire and non-ferrous wire, it can drawing the thin wire, which is the professional equipment for drawing wire.
Advantage of Prestressed Steel Wire Drawing Machine 1. Lower noise and durable 2. High speed 3. Good quality, best service
Technical parameter of Prestressed Steel Wire Drawing Machine
1
Apply to
Metal wire
2
Inlet diameter
Φ6.5mm
3
Otlet diameter
Φ2.2mm
4
Block number
6 pcs
5
Block diameter
560mm
6
No.1 motor
18.5kw
7
No.2 motor
15kw
8
No.3 motor
15kw
9
No.4 motor
11kw
10
No.5 motor
11kw
11
No.6 motor
11kw
12
Total compressibility
78%
13
Average compressibility
30%
14
Voltage
380V 50Hz
15
Dimension *1pc
1700*1150*1750mm*6pcs
16
Weight(reference)
1700kg*6pcs
