Rolling Machine
Power Source:
Electric
Feature:
Automation
Advantage:
Use Widely
Warranty:
12 Months
Certification:
SGS, ISO9001
Customized:
Customized
Condition:
New
Forging Forming Method:
Cold Roll Forming
Control Type:
PLC
Product Description

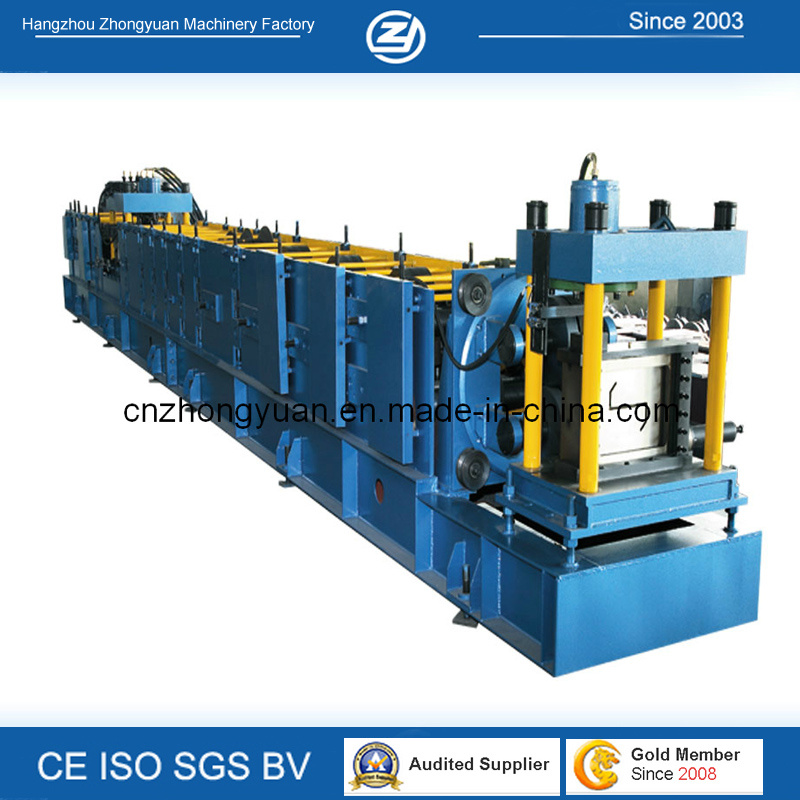

Purlin Forming Machinery
Components for the Machine The purline forming line includes in automatic hydraulic decoiler, sheet leveling equipment, roll forming system, punching equipment, post-cutting equipment, hydraulic station, electric controlling system and supporter for purline.
Technical Parameters Suitable material Galvanization steel sheet Product Spec (100, 120, 140, 160, 180, 200, 220, 240)mm× 2.0-3.0mm× L(Width× Thickness× Length) Forming Speed 8000 ~ 10000 mm/min. Power Requirement Main motor power: 15 Kw-4 (Depend on final design) Hydraulic station power: 5.5 Kw (Depend on final design) Power for hydraulic decoiler: 5.5 X 2kw Decoiler Max. Capacity: 3000kgs Main roller qty about 16 stands Control system Mitsubishi PLC and converter Diameter of shaft 82mm Type of cutting length-set cutting and post forming style Hydraulic pressure 18-20 Mpa Electric condition 380V/3Phase/ 50Hz Total weight About 8000kg
Material of Main Equipment Roller Material Cr12 mould steel being quenched treatment, with digital-controlled procession, which ensures the rollers' hardness to be HR60 and durable.
Active Shaft Material High grade No. 45 carbon wrought steel, which can improve the integrated mechanic feature of the shaft
Electric Elements PLC control panel, transducer imported from Mitsubishi of Japan. Other elements from famous suppliers in China
Cutter blade: Cr12 mould steel with quenched treatment.
Item
Specification
Material
Type
Color steel sheet or galvanized steel sheet
Thickness(mm)
1.5 -3.0
Yield strength(mpa)
235 -345
Roller material
45#Chrome steel
Forming speed(m/min)
About 15-20m/min
Speed adjusting mode
AC Frequency
Roller drive
Decelerating motor + Chain drive
Cutting mode
Hydraulic cutting
Cutter material
Cr12 mold steel
Length measurement
Encoder
Control mode
Mitsubishi PLC
Operating mode
Button + Mitsubishi Touch screen
Main motor power(kw)
15 KW (Depend on final design)
Hydraulic station power
5.5 K W (Depend on final design)
Total power(kw)
20.5 KW
Uncoiler's loading capacity
Max. Capacity: 3000kgs
Machine weight
About 8000kgs
Machine size
About 8*1*1.3m (Depend on final design)
Components of machine:
Decoiler
1set
Feeding & guiding device
1set
Pre-cutting device
1set
Main roll forming machine
1set
Punching equipment
1set
Hydraulic cutting system
1set
PLC Controlling system
1set
Run out table
1set
Process flow:
Decoiling the sheet → Leveling sheet→ Roll forming→ Punching→Measure length and cutting→ the Purline to the supporter
About us 1. Customize roll forming machines since 2003. 2. CE, ISO certificate by SGS. 3. Mitsubishi PLC controller and transducer from Japan 4.12moths warranty, lifetime technical support 5. Capacity: 12-15 sets/month 6. Delivery: In only 5-8 weeks for urgent order 7. Company occupies 6650, in which 5650 for workshops 8. Have our own tool center. 12 sets CNC machines. 9. Third party inspection: Bureau Veritas, SGS. Can provide assessment report. 10. Machine original brand: Zhongyuan 11. Set up business relationship with companies in more than 20 countries
