Name:

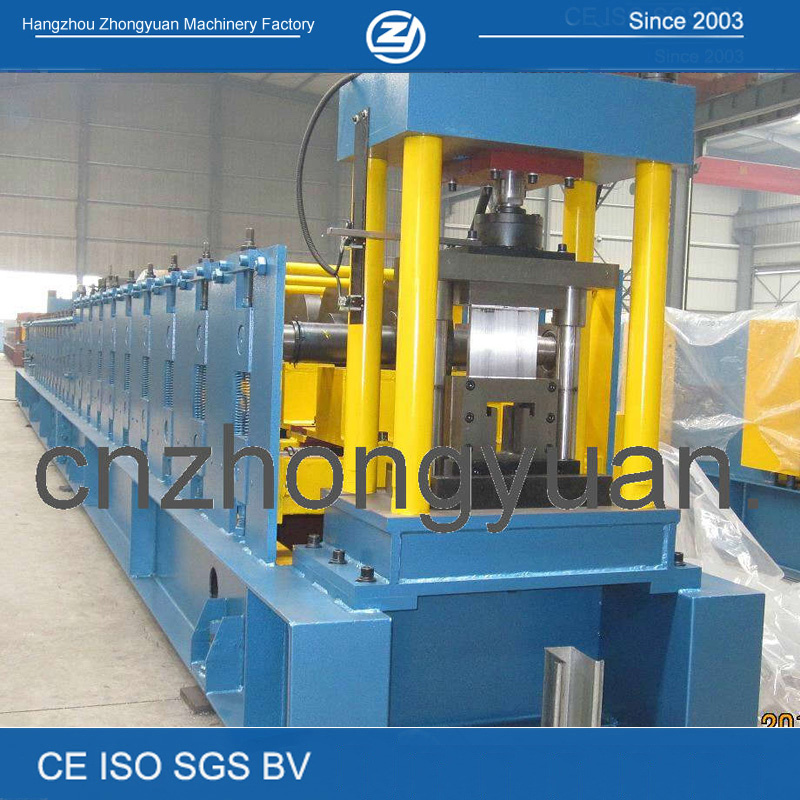

U Drain Roll Forming Machine
Forging Forming Method:
Cold Roll Forming
Product Description
U drain roll forming machine
About machine 1. Material: Galvanization steel sheet 2. Yield strength: 235Mpa 3. Thickness: 1.5mm 4. Forming Speed: 8-10m/min. 5. Main motor power: 15Kw(Depend on final design) 6. Hydraulic station power: About 5.5 Kw (Depend on final design) 7. Manual decoiler Max. Capacity: 3000kgs 8. Main roller qty about 16 stands 9. Electric condition 380V/3Phase/ 50Hz 10. Roller Material: High grade No. 45 forged steel. Plated with 0.05mm hard chrome. 11. Active Shaft Material: High grade No. 45 carbon wrought steel. Diameter of shaft 82mm 12. Cutter blade: Cr12 mould steel with quenched treatment 13. Type of cutting length-set cutting and post forming style 14. Hydraulic pressure 18-20 Mpa
Data sheet
Item
Specification
Material
Type
galvanized steel sheet
Thickness(mm)
1.5
Yield strength(mpa)
235 -345
Roller material
45#Chrome steel
Forming speed(m/min)
About 8-10m/min
Speed adjusting mode
AC Frequency
Roller drive
Decelerating motor + Chain drive
Cutting mode
Hydraulic cutting
Cutter material
Cr12 mold steel
Length measurement
Encoder
Control mode
Mitsubishi PLC
Operating mode
Button + Mitsubishi Touch screen
Main motor power(kw)
15 KW (Depend on final design)
Hydraulic station power
5.5 K W (Depend on final design)
Total power(kw)
20.5 KW
Uncoiler's loading capacity
Max. Capacity: 3000kgs
Machine weight
About 10500kgs
Machine size
About 8.5*1.5*1.6m (Depend on final design)
Components of machine:
Decoiler
1set
Feeding & guiding device
1set
Pre-cutting device
1set
Main roll forming machine
1set
Punching equipment
1set
Hydraulic cutting system
1set
PLC Controlling system
1set
Run out table
1set
Process flow:
Decoiling the sheet → Leveling sheet → Roll forming → Punching → Measure length and cutting → the Purline to the supporter
About us 1. CE, ISO certificate by SGS. SONCAP certificate. 2. Mitsubishi PLC controller and transducer from Japan 3.12moths warranty, lifetime technical support 4. Customize machines, R&D team with 15 years well experience in desing machine 5. Company occupies 6650 squqre meters, in which 5650 squqre meters for workshops 6. Set up business relationship with companies in more than 20 countries 7. Third party inspection: Bureau Veritas, SGS
Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system. We offer a vast range of products, including in sandwich panel line, metal tile forming machine, cladding forming machine, metal decking forming machines, etc. We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.
At Zhongyuan, our R&D department is staffed with senior engineers who has more than 10 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution. And more, Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines. All our forming machines are undergoes a series treatments, like cutting frames with heat treatment to remove stress of steel, to ensure all our performance requirements are met.
At Zhongyuan, we endeavor to provide quality built metal forming machines at economical prices. By purchasing qualified raw materials from suppliers which we have long term relationships with, we greatly reduce our material cost. Our company is located in Hangzhou City, about 2 hours from Shanghai and 1.5 hours from Ningbo port. This location allows us to ship products quickly and economically to our customers all over the world. As a result, we are able to satisfy our customers with both a high quality and economical metal forming machines.
Today, we have established lasting business relations with customers in more than 20 countries, such as America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, U. A. E, Nigeria, Tanzania, Ethiopia, Gana, South Sudan, Algeria, Niger, Philippines, Indonesia, India, and others.
We have rich experience for metal forming machine solution, competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
