North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cooling Style:
Air Cooling or Water Cooling
Ice Style:
Fresh Water Ice or Salt Water Ice
Ice Drum:
Stainless Steel
Refrigerant:
R404A/R22
Ice Making Type:
Spiral SUS304 Ice Blade
Certification:
SGS
Condition:
New
Ice Shape:
Flake Ice
Product Description
Flake ice:

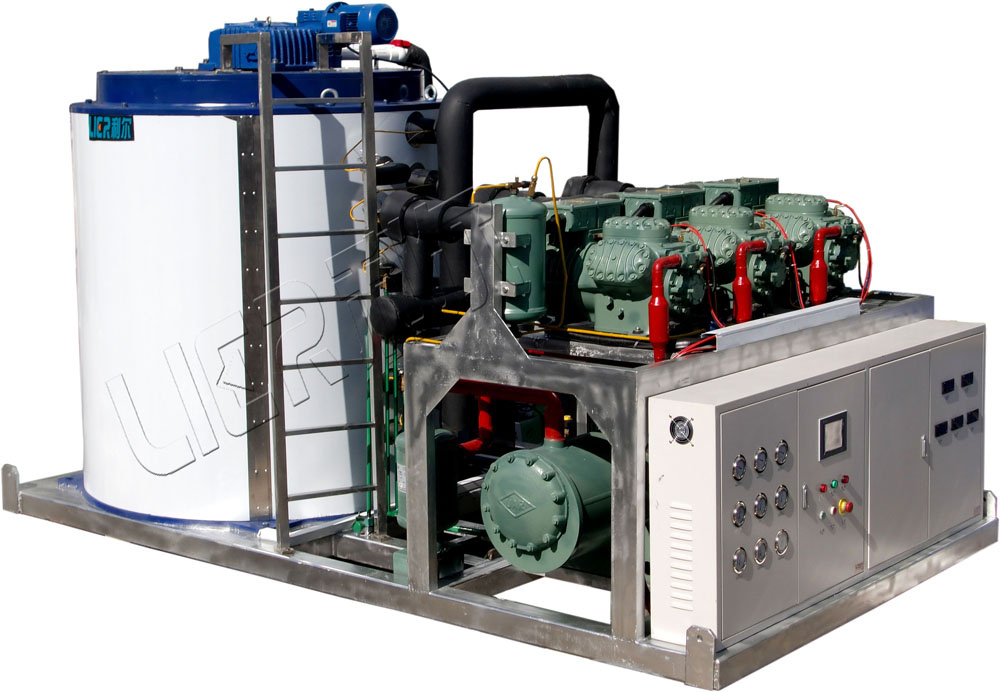

The irregular ice flake with thickness around 1.5-2.5mm. Air cooled industrial Flake Ice Machine (0.5T-30T/24H)
Feature:
1. The ice flake produced by the ice makeing machine can be directly used for stirring and mixing refrigerated material.
2. There's no acute edges and sharp points on the ice flake, so it will not damage the surface of the cooled object.
3. Large contact area and fast cooling speed, easy to crush and mold.
Application fields:
Concrete cooling system for concrete mixing plants, Lab refrigeration for chemical plants, Mine cooling,
Skiing and skating ground, Medical cryogenic equipment for Medicine, aquatic food and so on
Description for the Ice Flake Maker
Model
Daily Output
Compressor
Brand
Total Power (KW)
Power Supply
Refrigerant
Cooling mode
Weight
(kg)
Ice Storage (kg)
LR-0.5T
0.5T/24H
Danfoss
2.5
3p/380v/50Hz
R404A
Air colded
195
400
LR-1.0T
1.0T/24H
Danfoss
4.8
3p/380v/50Hz
R404A
Air colded
227
500
LR-1.2T
1.2T/24H
Bitzer
5.4
3p/380v/50Hz
R404A
Air colded
263
500
LR-1.5T
1.5T/24H
Bitzer
7.3
3p/380v/50Hz
R404A
Air colded
364
500
LR-2T
2T/24H
Copeland
8.5
3p/380v/50Hz
R404A
Air colded
423
600
LR-2.5T
2.5T/24H
Copeland
9.2
3p/380v/50Hz
R404A
Air colded
456
600
LR-3T
3T/24H
Bitzer
12.2
3p/380v/50Hz
R404A
Air colded
530
According to the order
LR-4T
4T/24H
Bitzer
16.3
3p/380v/50Hz
R404A
Water cooling
630
LR-5T
5T/24H
Bitzer
19.6
3p/380v/50Hz
R404A
Water cooling
760
LR-8T
8T/24H
Bitzer
26.6
3p/380v/50Hz
R404A
Water cooling
968
LR-10T
10T/24H
Bitzer
32.5
3p/380v/50Hz
R404A
Water cooling
1260
LR-15T
15T/24H
Bitzer
58
3p/380v/50Hz
R22
Water cooling
2120
LR-20T
20T/24H
Bitzer
63
3p/380v/50Hz
R22
Water cooling
2860
LR-25T
25T/24H
Bitzer
75
3p/380v/50Hz
R22
Water cooling
2940
LR-30T
30T/24H
Bitzer
86
3p/380v/50Hz
R22
Water cooling
3240
Shenzhen Liermachine Refrigeration Equipment Co., Ltd. is a professional and leading supplier of ice making machines and refrigeration equipment. We focus on the development, production, marketing, installation and repairing services of ice machines.
With advanced technology, modern management, strict quality control, skilled workers and professional services, our ice machines are widely welcomed by customers from at home and abroad.
We produce flake ice machines, tube ice machines, block ice machines, cube ice machines, plate ice machines and some related machine parts. We have different styles of ice making machines for different using fields. Our products are widely applied in aquatic product storage, fruit or vegetable preservation, meat processing, medicine and chemical refrigeration, textile printing and dyeing industry, deep sea fishing, laboratory refrigeration, concrete pouring and cooling, and so on. Lier always provides reasonable and efficient solutions and makes the best ice machines to meet the demands of customers.
