Product Description
(1) Material: FC-25(HT-250)
(2) Structures: The body of machine is cast and formed into an organic whole, remove the internal stress by annealing treatment and by fine boring machine, which has characteristics of keeping their shape and high precision
With high friction coefficient by flat belt transmission line between each stretch of the running speed. Axle Independent configuration inverter control winding motor, the buffering devices, feedback to constantly adjust to the inverter speed, cooperate with coiling tension.
Our company can be (OEM). Our company is close to Shanghai, welcome to visit!

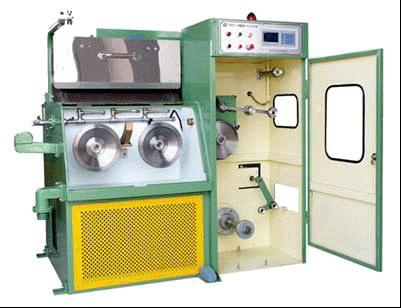

machine type
14DB
inlet diameter(mm)
0.6-1.2
outlet diameter(mm)
0.25-0.5
drawing line speed
800
drawing dies No./Max
14
slip ratio of m/c
12%
fix speed capstan slip ratio
8%
capstan
tungsten
capstan dia.(max.)(mm)
380
fix speed capstan dia.(mm)
330
frame
welded by steel plate
main motor
18.5KWthree phase inductor motor
spooler motor
5.5KWthree phase inductor motor
revise system
PID synchronous spooler
transmission type
gear-shaped belt
send-out method
over head
tension control
pneumatic balance by swing arm
lubrication system of wire drawing
half-immersing
suitable diameter of spool(mm)
300
capacity for wire receiving(kg)
35
bobbin loading & unloading type
shaft type
power source
380V
brake
magnetic brake
machine dimension(mm)
1950L×1100W×1750H
machine weight(kg)
2200
PROFessional Machinery Electric Co., Ltd ( i. e. PRO Machinery Electric (Suzhou) Co., Ltd). has been established in 2002, a wholly owned Taiwanese company, specialized in the manufacturing of wire & cable industrial equipment, wire drawing machines, annealing machines and wire twisting machines. After more than 18 years' development with professional and experienced employees as well as first-grade workshops and factory buildings, PRO becomes a leading company in supply field of electronic circuits, electromagnetic wires, electric wires and cable equipment. (OEM)
In 2006 PRO has obtained the ISO 9001: 2000, strictly produce according to the standards, with strong cost and service consciousness, we provide machines with excellent quality and competitive price. Our experienced engineers offer complete solution of plan, design and produce, to the full extent, to constantly meet production requirements of our customers and easy production.
