Product Description
PRO-17dB is the mature product of PRO group with excellent properties, such as high speed; Low noise; Small volume; Long life-span and easy operation. It is the leading medium steel wire drawing machine in domestic market with excellent production efficiency.

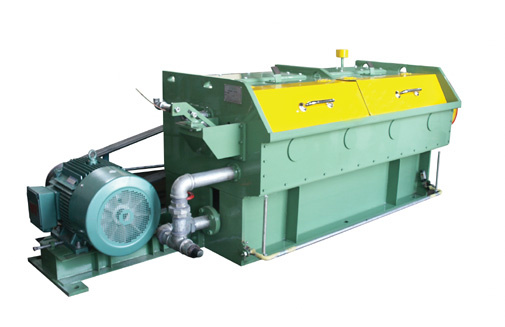

Picture 1
machine type
17DB
inlet diameter(mm)
1.5-2.5
outlet diameter(mm)
0.5-1.6
drawing line speed(MPM)
800
drawing dies No./Max
17
slip ratio of m/c
11%
fix speed capstan slip
8%
capstan
capstan
capstan dia.(max.)(mm)
254
fix speed capstan dia.(mm)
254
frame
ironed cast
main motor
45KWthree phase inductor motor
spooler motor
15KWthree phase inductor motor
revise system
PID synchronous spooler
inverter control
Dual inverter control
transmission type
chain
send-out method
over head
traversing unit
flat belt + timing motor
tension control
pneumatic balance by swing arm
lubrication system of wire drawing
half-immersing
suitable diameter of spool(mm)
500 630
capacity for wire receiving(kg)
100-300
bobbin loading & unloading type
shaft type
power source
380V
brake
pneumatic brake
machine dimension(mm)
3500L×1200W×1250H
machine weight(kg)
3000
PROFessional Machinery Electric Co., Ltd ( i. e. PRO Machinery Electric (Suzhou) Co., Ltd). has been established in 2002, a wholly owned Taiwanese company, specialized in the manufacturing of wire & cable industrial equipment, wire drawing machines, annealing machines and wire twisting machines. After more than 18 years' development with professional and experienced employees as well as first-grade workshops and factory buildings, PRO becomes a leading company in supply field of electronic circuits, electromagnetic wires, electric wires and cable equipment. (OEM)
In 2006 PRO has obtained the ISO 9001: 2000, strictly produce according to the standards, with strong cost and service consciousness, we provide machines with excellent quality and competitive price. Our experienced engineers offer complete solution of plan, design and produce, to the full extent, to constantly meet production requirements of our customers and easy production.
