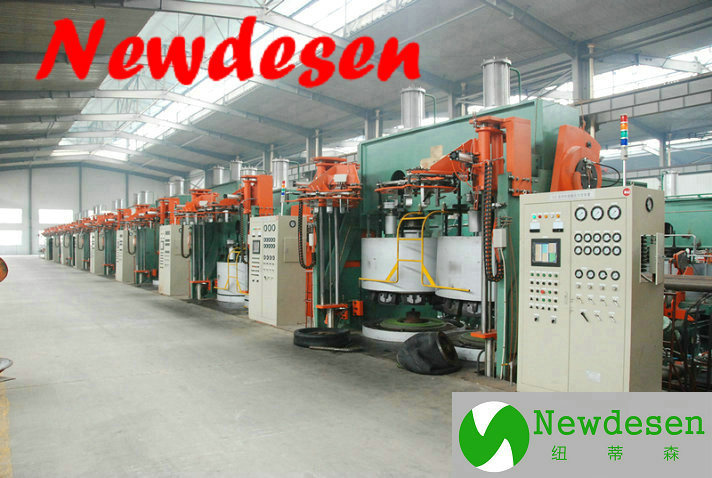

B (Bag O matic) type double mould tyre shaping and curing press is suitable for the vulcanization of all-steel heavy-duty radial tyre, semi-radial tyre and nylon bias tyre with one set of additional post curing inflator.
Sizes of the machine: LL-B1145X2, LL-B1310X2, LL-B1525X2, LL-B1640X2
MODEL
LL-B1640X2
LL-B1525X2
LL-B1310X2
LL-B1220X2
LL-B1145X2
LL-B1050X2
Steam dome specifications
(65.5'') 1640mm
(63.5'')
(55'')
(48'')
(45'')
(42'')
1525mm
1310mm
1220mm
1145mm
1050
Max. mould closing force
4450X2KN
4220X2KN
2890X2KN
1920X2KN
1720X2KN
1320X2KN
Height of mould
254-622mm
254-635mm
245-445mm
305-505mm
230-455mm
180-300mm
Power of main motor
16Kw
13Kw
13Kw
11 Kw
11 Kw
11 Kw
Apply bead specifications
19''-24.5''
18''-24.5''
16''-20''
13''-20''
12-17.5''
12''-16''
Notes
It works for the vulcanization of TBR, PCR tires or bias tires. If it works for curing the bias tires, the press will match with post curing inflator. If it works for curing the radial tires, the press will match with segmented mould controller
