Product Description

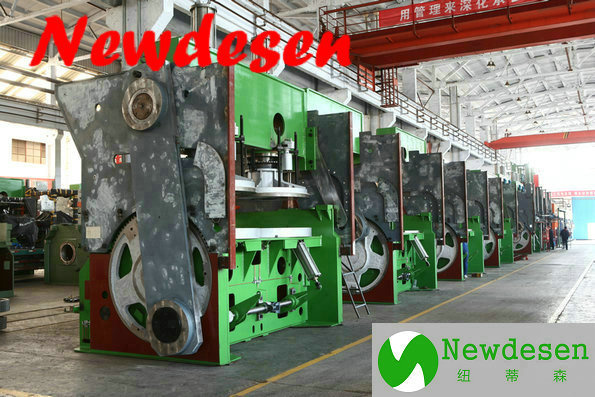

This press is used for vulcanization of bias tyre and all steel radial tyre with double half-moulds and segmented moulds, which can meet tyre loading, shaping, vulcanizing and unloading automatically. Bias byre can be cooled automatically with post cure inflator.
Type Technical parameter
42
45
48
55
63.5
65.5
Mould opening way
Fluctuation/turn
Horizon/turn
Horizon/turn
Horizon/turn
Horizon/turn
Horizon/turn
Center mechanism mode
B
B
B
B
B
B
Mould heating
Steam pot (heating plate)
Steam pot (heating plate)
Steam pot (heating plate)
Steam pot (heating plate)
Steam pot (heating plate)
Steam pot (heating plate)
mould quantity
2
2
2
2
2
2
Max. Mould clsing force
1370× 2
1720× 2
1920× 2
2890× 2
4220× 2
4580(4220)× 2
Mould height
155~381
230~457
250~500
245~455
254~642
254~635
Steam hollowware diameter inside
Φ 1050
Φ 1145
Φ 1220
Φ 1310
Φ 1525
Φ 1640
Apply bead specification
12~16
12~17.5
14~20
16~20
19~24
19~24.5
Main motor power
11
11
11
7.5
16
16
Size
4254× 4410× 3916
4116× 4425× 3840
5500× 3540× 3211
108× 5380× 5590
7000× 5520× 6154
7000× 5520× 5950
Qingdao Newdesen Industry Co., Ltd. is one of the leading manufacturers of rubber machinery in China and located in Jiaonan, Qingdao, China and has got ISO9001 quality system certificate.
The main products are semi-steel radial tire building machine (First stage and second stage), all-steel radial tire building machine (Two drum and three drum), tire curing press (45, 48, 55, 63.5, 65.5 inches), all kinds of conveyor belt press-lines, all kinds of batch off and large two-roll mixing mill series, etc. Our company can also design and manufacture all kinds of non-standard rubber machines according to the requirement of clients. We can provide the service for large projects including machines and technology of bias tire, all-steel radial tire, semi-steel radial tire and all kinds of conveyor belt, etc.
