Size:
3mm-16mm
Thread:
M5,M6, 1/8, 1/4, 3/8, 1/2
Standard:
GB
Material:
Plastic
Connection:
Male
Product Description
FEATURES
1. Designed for Polyurethane or Nylon tubing. 2. Quick and reliable connections. 3. Reusable: multiple connections / disconnections. 4. Convenient elliptical / round sleeve configuration. 5. Metallic body made of non-corrosive Nickel-plated Brass. 6. Pre-coated threads are ready to use without additional sealing. 7. Outside (and Inside where applicable) hexagonal wrench tightening. 8. Available over 60 different models in imperial, metric sizes and hybrid. 9. Conform ISO7.1, BS21, DIN2999 standard

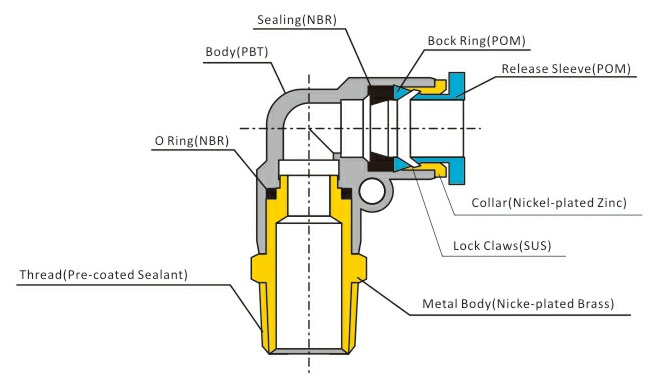

MATERIAL CONSTRUCTION
Plastic Body
PBT
Metal Body
Nickel Plated Brass or Brass
Release Button
POM
Grip Ring
Stainless Steel
Thread Sealant
Teflon
O-Ring
NBR
SPECIFICATIONS
Operating Pressure
0 - 150 PSI 0 - 990 kpa
Operating Temperature
0 - 60 °C 32 to 140°F
Application
Air, water
Recommended Tubing Material
Polyurethane, Nylon, Polyethylene, and Polypropylene
Types
Straight, Elbow, Tee, X, Y, etc.
Capacity
Over 1000000pcs/month
Marketing Area
All over the world
FITTINGS ADVANTAGE
1) Raw Material conforms to ROHS standards. 2) Imported Teflon adhesive for pre-coated sealant.
3) Multiple color and shape for button and body Blue and oval button with black body as regular, Black or gray round button is available, too.
4) 5% tested by water at 10 bar, 100% tested by air and appearance test.
5) 1 year quality assurance after shipment.
6) Custom fitting as your drawing or we make drawing as your sample.

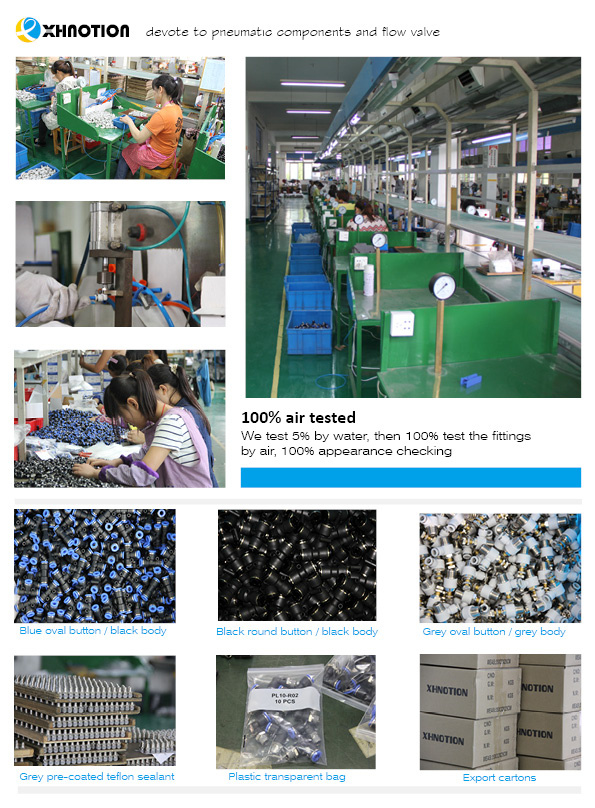

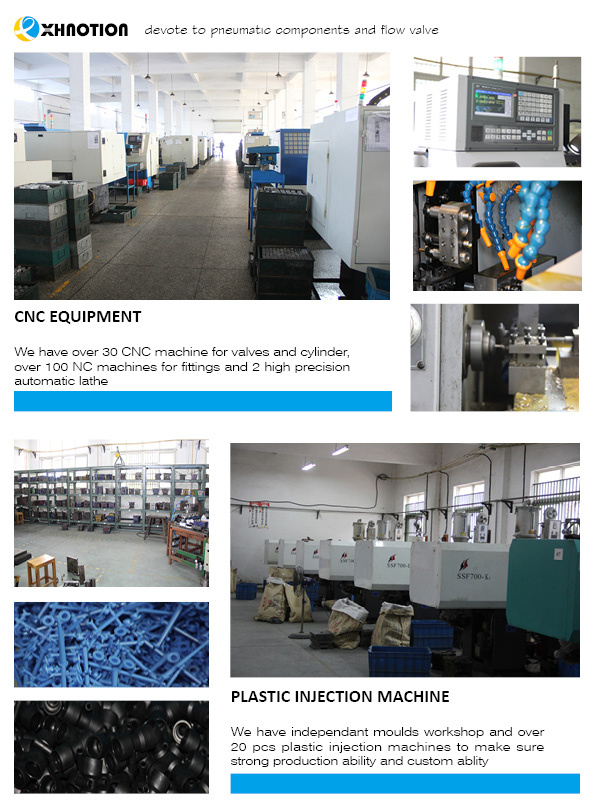

WORKSHOP SHOW
WHY CHOOSE US?
1) We offer one stop solution. Over 5000 items for you to save efforts and costs.
2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder
FAQ
Packing Transparent plastic bag + white small box + neutral carton + pallet Custom packaging are available, XHnotion brand packaging are available
Shipping : Export port: Ningbo or Shanghai, China Shipping way: by sea, by air, by courier Delivery time 3 days to 30 daysdepends on actual orders. Payment Terms We accept T/T, L/C, Paypal, western union,etc.
Samples Policy For regular fittings below 20 pcs, free samples against your courier account or you pick up from us. For custom items, we will discuss by email.
Return Policy: We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
For other size, please refer to below table.
Model [ΦD-T]
Tube(Metric)-Thread(R)
Tube(Inch)-Thread(R)
Tube(Inch)-Thread(NPT)
PLL 4-M5
PLL 6-03
PLL 12-01
PLL 5/32-01
PLL 3/8-02
PLL 1/8-U10
PLL 3/16-N03
PLL 3/8-N02
PLL 4-M6
PLL 8-01
PLL 12-02
PLL 5/32-02
PLL 3/8-03
PLL 1/8-N01
PLL 1/4-U10
PLL 3/8-N03
PLL 4-01
PLL 8-02
PLL 12-03
PLL 1/4-01
PLL 3/8-04
PLL 1/8-N02
PLL 1/4-N01
PLL 3/8-N04
PLL 4-02
PLL 8-03
PLL 12-04
PLL 1/4-02
PLL 1/2-02
PLL 5/32-U10
PLL 1/4-N02
PLL 1/2-N02
PLL 4-03
PLL 8-04
PLL 14-03
PLL 1/4-03
PLL 1/2-03
PLL 5/32-N01
PLL 1/4-N03
PLL 1/2-N03
PLL 6-M5
PLL 10-01
PLL 14-04
PLL 5/16-01
PLL 1/2-04
PLL 5/32-N02
PLL 5/16-N01
PLL 1/2-N04
PLL 6-M6
PLL 10-02
PLL 16-03
PLL 5/16-02
PLL 3/16-U10
PLL 5/16-N02
PLL 6-01
PLL 10-03
PLL 16-04
PLL 5/16-03
PLL 3/16-N01
PLL 5/16-N03
PLL 6-02
PLL 10-04
PLL 3/8-01
PLL 3/16-N02
PLL 3/8-N01
