Size:
3mm-16mm
Standard:
GB
Material:
Plastic
Connection:
Tube
Product Description
FEATURES

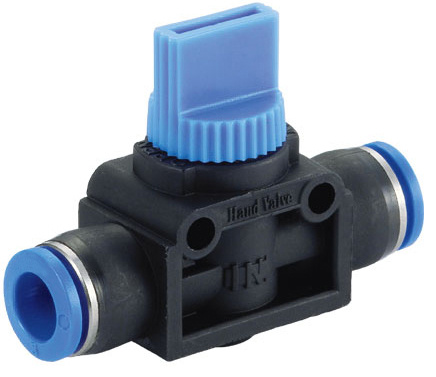

1. Hand valve are designed to turn on and off the airflow. 2. Two way and three way valve are available for all models. 3. The three way valve releases the residual internal pressure on the output side when manually closed. 4. Two way valve can be used for Vaccum. If you order two way valve, please add B after model name. 5. G-thread type is also available. 6. Working pressure: 0-150 Psi. 7. Working temperature: 32-140ºF/ 0-60ºC.

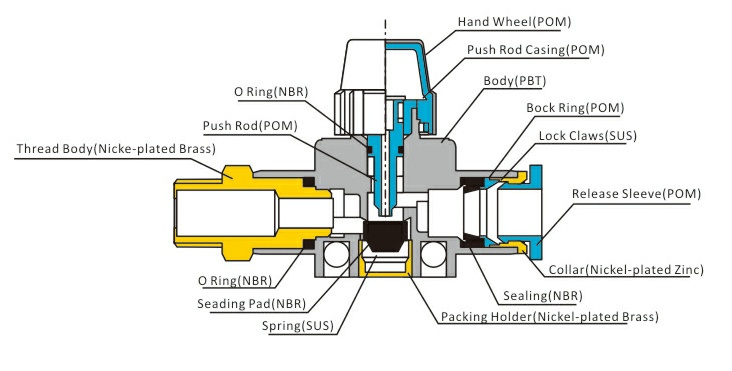

MATERIAL CONSTRUCTION
Plastic Body
PBT
Metal Body
Nickel Plated Brass or Brass
Release Button
POM
Grip Ring
Stainless Steel
Thread Sealant
Teflon
O-Ring
NBR
SPECIFICATIONS
Operating Pressure
0 - 150 PSI 0 - 990 kpa
Operating Temperature
0 - 60 °C 32 to 140°F
Application
Air, water
Recommended Tubing Material
Polyurethane, Nylon, Polyethylene, and Polypropylene
Types
Straight, Elbow, Tee, X, Y, etc.
Capacity
Over 1000000pcs/month
Marketing Area
All over the world
FITTINGS ADVANTAGE
1) Raw Material conforms to ROHS standards. 2) Imported Teflon adhesive for pre-coated sealant.
3) Multiple color and shape for button and body Blue and oval button with black body as regular, Black or gray round button is available, too.
4) 5% tested by water at 10 bar, 100% tested by air and appearance test.
5) 1 year quality assurance after shipment.
6) Custom fitting as your drawing or we make drawing as your sample.

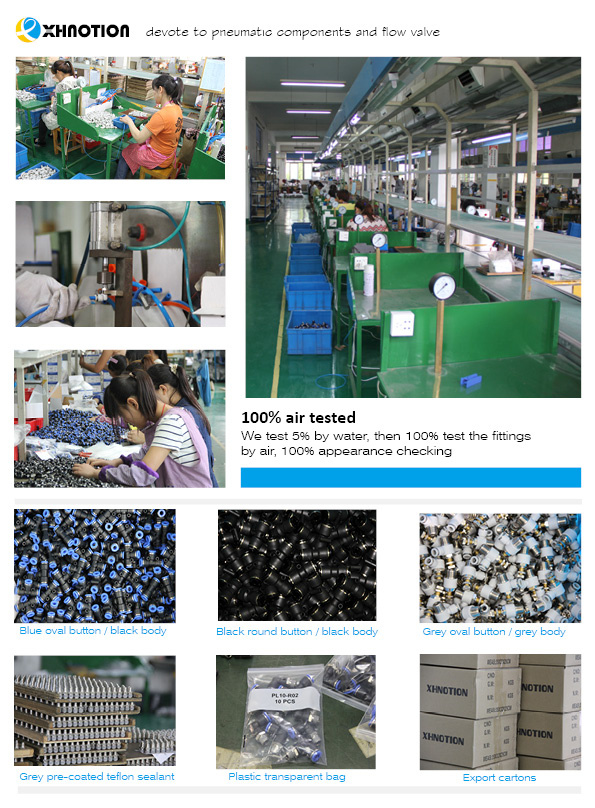

WORKSHOP SHOW
WHY CHOOSE US?
1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

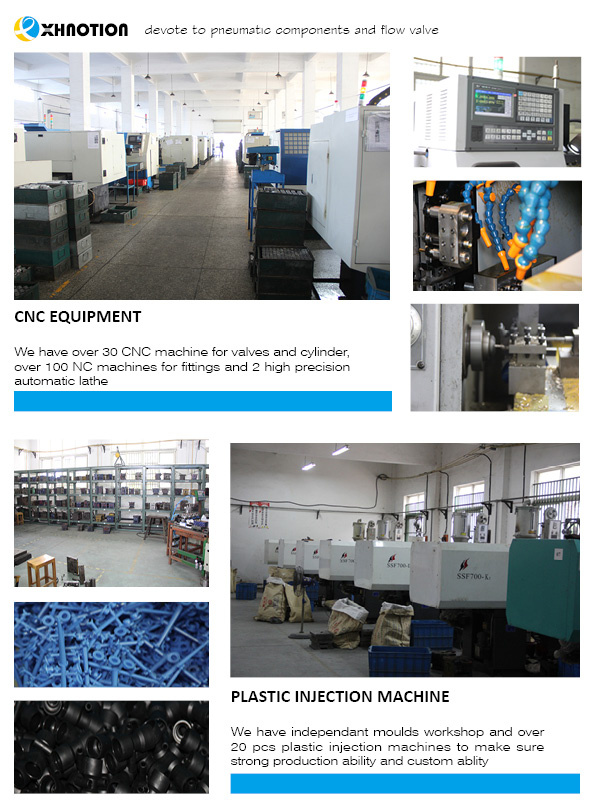

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder
FAQ
Packing Transparent plastic bag + white small box + neutral carton + pallet Custom packaging are available, XHnotion brand packaging are available
Shipping : Export port: Ningbo or Shanghai, China Shipping way: by sea, by air, by courier Delivery time 3 days to 30 daysdepends on actual orders.
Payment Terms We accept T/T, L/C, Paypal, western union,etc.
Samples Policy For regular fittings below 20 pcs, free samples against your courier account or you pick up from us. For custom items, we will discuss by email.
Return Policy: We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
For other size, please refer to below table.
Model [ΦD]
Tube(Metric)
Tube(Inch)
HVFF 6-6
HVFF 1/4-1/4
HVFF 8-6
HVFF 5/16-1/4
HVFF 8-8
HVFF 5/16-5/16
HVFF 10-8
HVFF 3/8-5/16
HVFF 10-10
HVFF 3/8-3/8
HVFF 12-10
HVFF 1/2-3/8
HVFF 12-12
HVFF 1/2-1/2
