| Price: | US $ 14800-16800/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
| Application: | Household, Industrial, Auto | Components: | Vickers, Schneider, Dofluid |
| Control Method: | Automatic, Fully-automatic | Feature: | Energy Saving |
| Material: | PE, PVC, Plastic, A.B.S | Mold Cavities: | 10 Cavities, 12 Cavities, 4 Cavities, 6 Cavities, 8 Cavities |
| Style: | Horizontal | Working Principle: | High Speed |
| Clamping Force: | 120tons |
Quick Detail:
Hydraulic Injection Molding Machine is composed of direction valve, proportional pressure valve, proportional direction valve, overfall valve, unilateral valve & pump, and hydraulic motor etc, these components compose the electric-hydraulic proportional loading feedback circuit, which is with fast respond, reliable running, stable action, energy saving, easy to operate, easy to maintain and other characteristics.
Description:

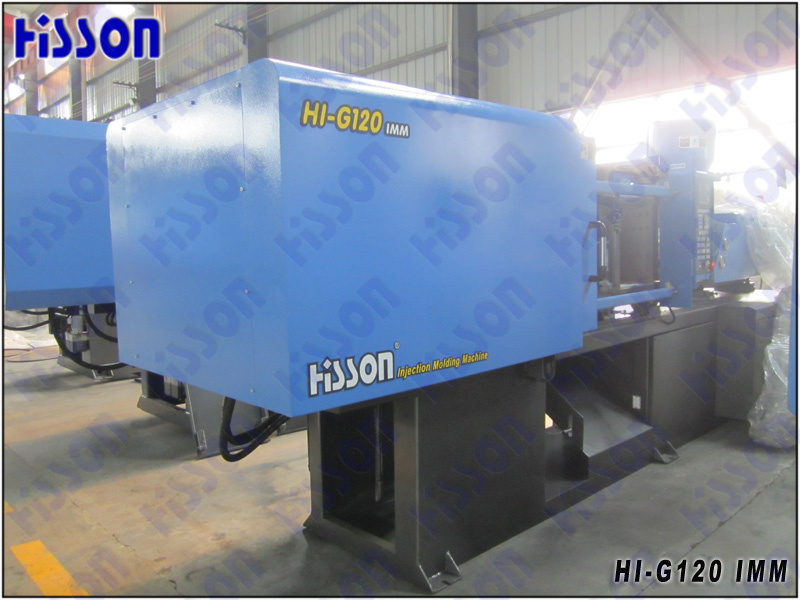

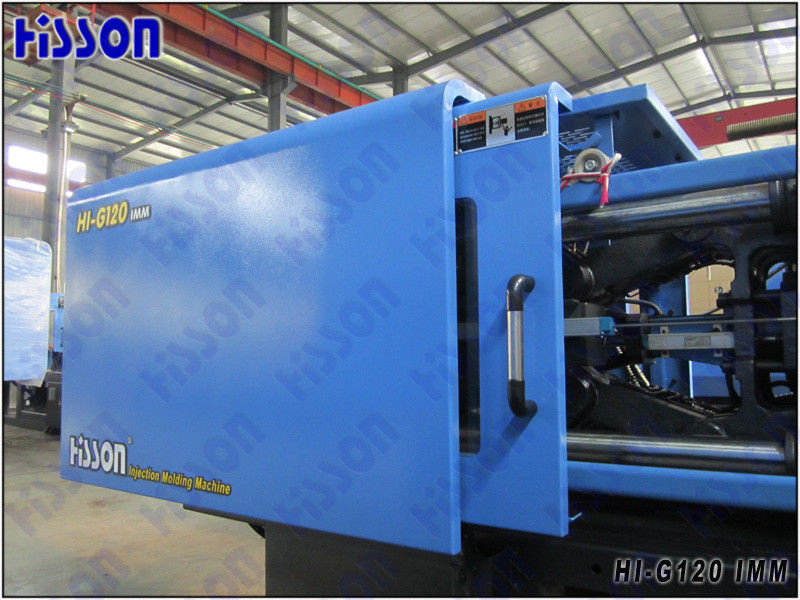

HI-G120 Hydraulic Injection Molding Machine is the type of fully-automatic machine, being provided with high efficiency, high reliability, high speed, low noise, low power consumption and other advantages.
HI-G120 Hydraulic Injection Molding Machine is for normal type plastic material injection, e.g. PC, PP, PE, Nylon, A.B.S. PVC etc., this machine is with clamping force 120tons, there are three available screws, the corresponding real shot weight 130g, 150g, 180g. This machine is mainly used to produce small industrial parts, household appliances and other plastic products.
Applications:
HI-G120 Hydraulic Injection Molding Machine is for small industrial parts, household appliances and other plastic products, material PC, PP, PE, Nylon, A.B.S. PVC etc., suitable plastic products weight 10g-180g, mold cavity can be:1 Cavity, 2 Cavities, 3 Cavities, 4 Cavities, 6 Cavities, 8 Cavities, 10 Cavities, 12 Cavities, 16 Cavities
Competitive Advantage:
1. The machine equipped with hydraulic protection
2. The machine equipped with double Hydraulic pulling device
3. Machine with oil filter system to ensure hydraulic oil clean , to prolong action valves using life.
4. The machine equipped with 7 inch colorful screen controller, brand Techmation from Taiwan, the controller is with several languages include English, French, Spanish, Portuguese, Russian, Arabic etc.
5. Heaters adopt ceramic, the using life is double than stainless steel.
6. The machine equipped with double Air Ejector
7. The machine equipped with single slots on the mold plates
Machine main components adopt world famous brand, e.g.:
? Controller:TECHMATION (TAIWAN),
? Low voltage contactor: SCHNEIDER(FRANCE),
? Low voltage air switch: SCHNEIDER(FRANCE),
? Proportional Valve: Dofluid HNC(TAIWAN)
? Oil pump: VICKERS(USA)
? Directional Valve: VICKERS(USA)
? Induction travel switch: OMORON (JAPAN)
? Inductor potentiometer: FORT(USA)
| Prod Model: | HI-G120 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Clamping Force: | 1200kn |
| Screw Dia.: | 35/38/42mm |
| Shot Volume: | 168/198/242cm3 |

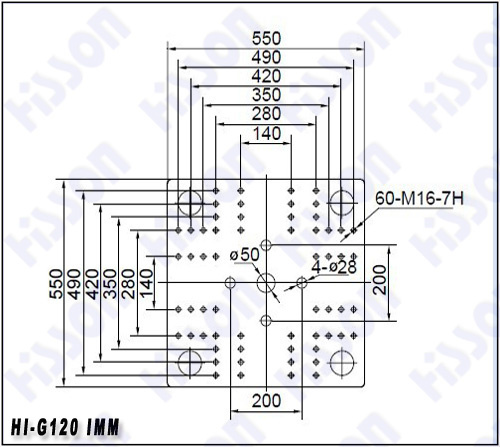

| Tie Bar Distance: | 410*360mm |
| Type: | Injection Blow Molding |
| Structure: | Horizontal |
| Plastic Type: | Thermoplastic |
| Plasticizing Way: | Screw Type |
| Clamping Way: | Hydraulic & Mechanical |
| Automation: | Automatic |
| Computerized: | Computerized |
| Certification: | ISO9001:2008 |
