| Price: | US $ 14800-16800/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |

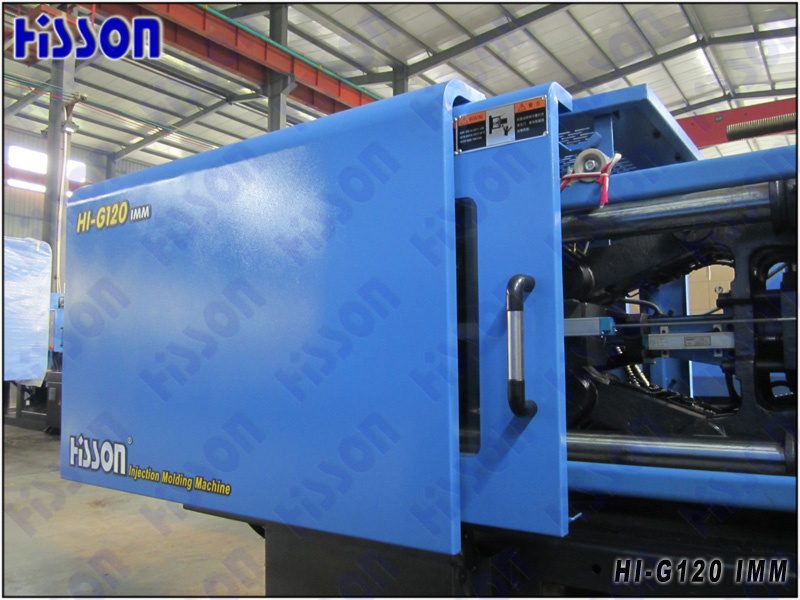

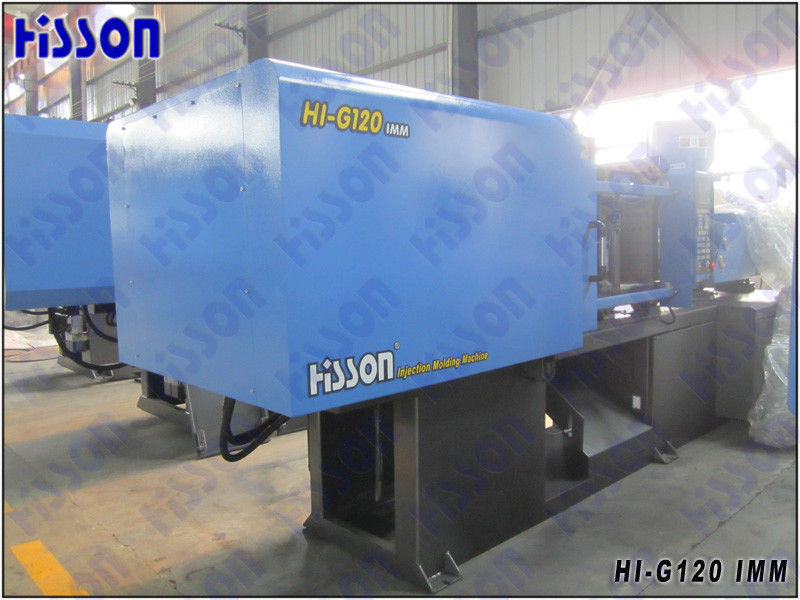

Fully Automatic Plastic Injection Molding Equipment With Techmation Controller
Quick Detail:
HI-G120 Plastic Injection Molding Machine is for normal type plastic material injection, e.g. PC, PP, PE, Nylon, A.B.S. PVC etc., this machine is with clamping force 120tons, there are three available screws, the corresponding real shot weight 130g, 150g, 180g. This machine is mainly used to produce small industrial parts, household appliances and other plastic products.
Machine main components adopt world famous brand, e.g.:
Description:
HI-G120 Plastic Injection Molding Machine is the type of fully-automatic machine, being provided with high efficiency, high reliability, high speed, low noise, low power consumption and other advantages.
Applications:
HI-G120 Plastic Injection Molding Machine is for small industrial parts, household appliances and other plastic products, material PC, PP, PE, Nylon, A.B.S. PVC etc., suitable plastic products weight 10g-180g, mold cavity can be:1 Cavity, 2 Cavities, 3 Cavities, 4 Cavities, 6 Cavities, 8 Cavities, 10 Cavities, 12 Cavities, 16 Cavities
Specifications:
HI-G120 Technical Parameters
HI-G120 | Optional Parameters | ||||
TECHNICAL PARAMETER TABLE | Unit | A | B | C | |
INJECTION | SCREW DIAMETER | mm | 35 | 38 | 42 |
SCREW L/D RATIO | L/D | 21.3 | 19.3 | 23.1 | |
SHOT VOLUME(THEORETICAL) | cm3 | 154 | 181 | 221 | |
INJECTION WEIGHT(PS) | g | 140 | 165 | 201 | |
INJECTION RATE | g/s | 97 | 118 | 135 | |
PLASTICIZING CAPACITY | g/d | 17 | 21 | 23 | |
INJECTION PRESSURE | Mpa | 219 | 186 | 152 | |
SCREW SPEED | rpm | 0-200 | |||
CLAMPING | CLAMP TONNAGE | kN | 1200 | ||
TOGGLE STROKE | mm | 330 | |||

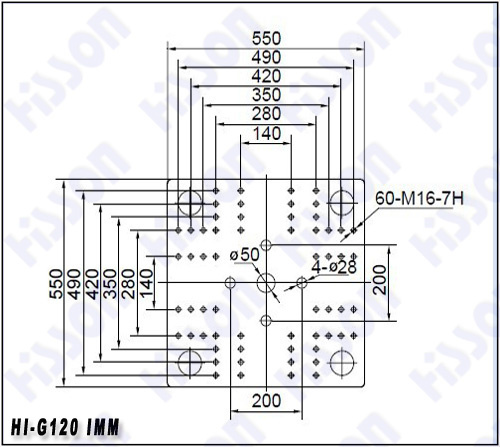

SPACE BETWEEN TIE BARS | mm | 360×360 | |||

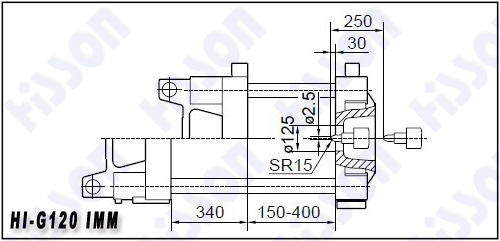

MAX.MOULD HEIGHT | mm | 400 | |||
MIN.MOULD HEIGHT | mm | 150 | |||
EJECTOR STROKE | mm | 100 | |||
EJECTOR TONNAGE | kN | 38 | |||
EJECTOR NUMBER | Piece | 5 | |||
OTHERS | Max.PUMP PRESSURE | Mpa | 16 | ||
PUMP MOTOR POWER | KW | 11 | |||
HEATING POWER | KW | 7.2 | |||
MACHINE DIMENSION(L×W×H) | m | 4.14×1.19×1.7 | |||
MACHINE WEIGHT | T | 3.5 | |||
HOPPER CAPACITY | kg | 25 | |||
OIL TANK CAPACITY | L | 220 | |||
Competitive Advantage:
1. Heaters adopt ceramic, the using life is double than stainless steel.
2. Machine with oil filter system to ensure hydraulic oil clean , to prolong action valves using life.
3. The machine equipped with 7 inch colorful screen controller, brand Techmation from Taiwan, the controller is with several languages include English, French, Spanish, Portuguese, Russian, Arabic etc.
4. The machine equipped with hydraulic protection
5. The machine equipped with double Hydraulic pulling device
6. The machine equipped with double Air Ejector
7. The machine equipped with single slots on the mold plates
| Prod Model: | HI-G120 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Clamping Force: | 1200kn |
| Screw Dia.: | 35/38/42 |
| Shot Volume: | 154/181/221cm3 |
| Tie Bar Distance: | 360*360mm |
| Type: | Injection Blow Molding |
| Structure: | Horizontal |
| Plastic Type: | Thermoplastic |
| Plasticizing Way: | Screw Type |
| Clamping Way: | Hydraulic & Mechanical |
| Automation: | Automatic |
| Computerized: | Computerized |
| Certification: | ISO9001:2008 |
