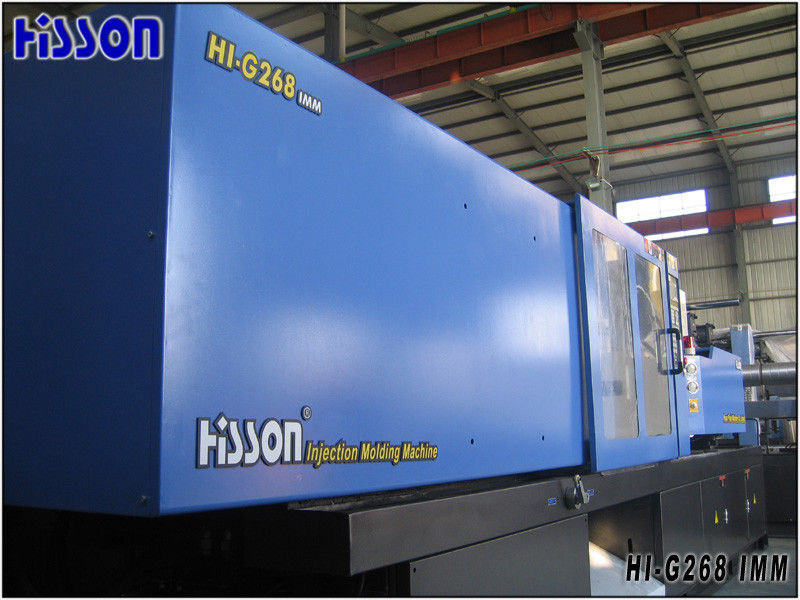

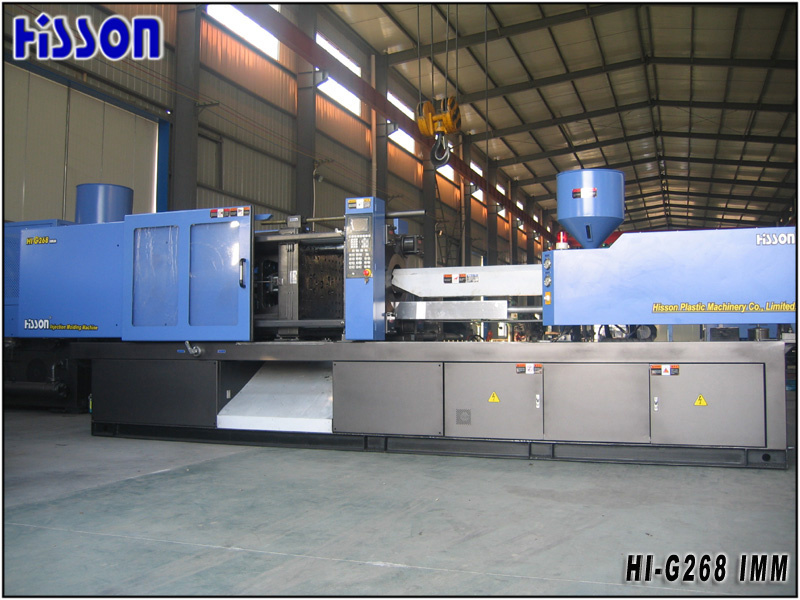

ABS 4 Cavities Plastic Injection Molding Machine 268 Tons With Vickers Pump
Quick Detail:
HI-G268 Plastic Injection Molding Machine is for normal type plastic material injection, e.g. PC, PP, PE, Nylon, A.B.S. PVC etc., this machine is with clamping force 268tons, there are three available screws, the corresponding real shot weight 455g, 545g, 630g. This machine is mainly used to produce small&middle industrial parts, household appliances and other plastic products.
Machine main components adopt world famous brand, e.g.:
Controller:TECHMATION (TAIWAN),
Low voltage contactor: SCHNEIDER(FRANCE)
Low voltage air switch: SCHNEIDER(FRANCE)
Proportional Valve: Dofluid HNC(TAIWAN)
Oil pump: VICKERS(USA)
Directional Valve: VICKERS(USA)
Induction travel switch: OMORON (JAPAN)
Inductor potentiometer: FORT(USA)
Applications:
HI-G268 Plastic Injection Molding Machine is for small&middle industrial parts, household appliances and other plastic products, material PC, PP, PE, Nylon, A.B.S. PVC etc., suitable plastic products weight 10g-630g, mold cavity can be: 1 Cavity, 2 Cavities, 3 Cavities, 4 Cavities, 6 Cavities, 8 Cavities, 10 Cavities, 12 Cavities, 16 Cavities, 24 Cavities, 32 Cavities
Description:
HI-G268 Plastic Injection Molding Machine is the type of fully-automatic machine, being provided with high efficiency, high reliability, high speed, low noise, low power consumption and other advantages.
Competitive Advantage:
1. Heaters adopt ceramic, the using life is double than stainless steel.
2. Machine with oil filter system to ensure hydraulic oil clean , to prolong action valves using life.
3. The machine equipped with 7 inch colorful screen controller, brand Techmation from Taiwan, the controller is with several languages include English, French, Spanish, Portuguese, Russian, Arabic etc.
4. The machine equipped with hydraulic protection
5. The machine equipped with double Hydraulic pulling device
6. The machine equipped with double Air Ejector
7. The machine equipped with single slots on the mold plates
Specifications:
HI-G268 Technical Parameters
HI-G268 | Optional Parameters | ||||
TECHNICAL PARAMETER TABLE | Unit | A | B | C | |
INJECTION | SCREW DIAMETER | mm | 55 | 60 | 65 |
SCREW L/D RATIO | L/D | 21.8 | 20 | 18.4 | |
SHOT VOLUME(THEORETICAL) | cm3 | 538 | 641 | 752 | |
INJECTION WEIGHT(PS) | g | 1026 | 1190 | 1367 | |
INJECTION PRESSURE | Mpa | 200 | 168 | 143 | |
INJECTION RATE | g/s | 240 | 285 | 334 | |
PLASTICIZING CAPACITY | g/s | 38 | 45 | 52 | |
SCREW SPEED | rpm | 0-190 | |||
CLAMPING | CLAMP FORCE | kN | 2680 | ||

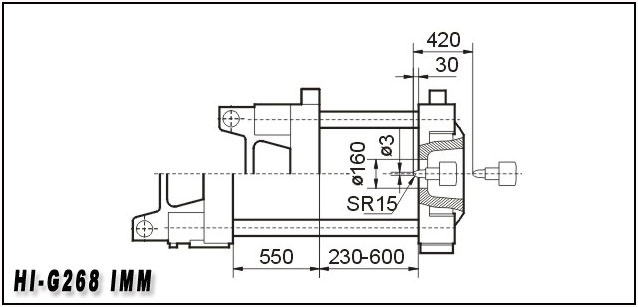

OPEN STROKE | mm | 550 | |||
MAX.MOULD HEIGHT | mm | 600 | |||
MIN.MOULD HEIGHT | mm | 230 | |||

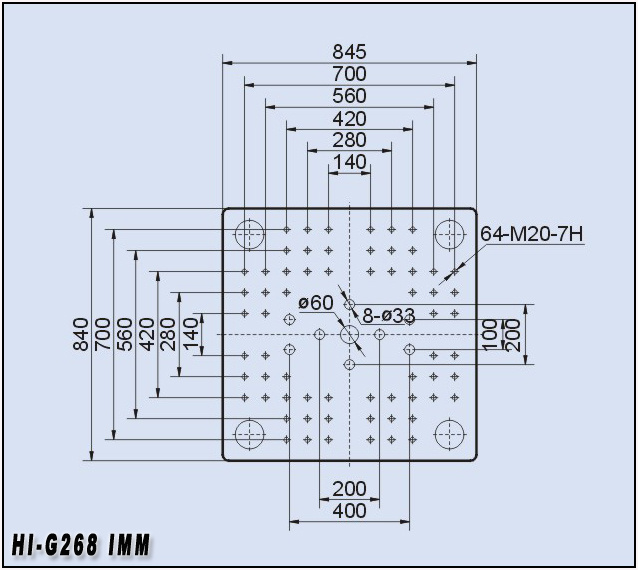

SPACE BETWEEN TIE BARS | mm | 570×570 (W×H) | |||
EJECTOR FORCE | KN | 65 | |||
EJECTOR STROKE | mm | 150 | |||
GENEREL | EJECTOR NUMBER | n | 9 | ||
PUMP PRESSURE | KW | 16 | |||
PUMP MOTOR POWER | KW | 30 | |||
HEATING POWER | KW | 14.9 | |||
MACHINE DIMENSION | m | 6.1×1.5×2.2(L×W×H) | |||
MACHINE WEIGHT | T | 8 | |||
Hopper Capacity | L | 50 | |||
Oil Tank Capacity | L | 580 | |||
| Prod Model: | HI-G268 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Clamping Force: | 2680kn |
| Screw Dia: | 55/60/65mm |
| Shot Volume: | 538/641/752cm3 |
| Tie Bar Distance: | 570*570mm |
| Type: | Injection Blow Molding |
| Structure: | Horizontal |
| Plastic Type: | Thermoplastic |
| Plasticizing Way: | Screw Type |
| Clamping Way: | Hydraulic & Mechanical |
| Automation: | Automatic |
| Computerized: | Computerized |
| Certification: | ISO9001:2008 |
