Introduction:

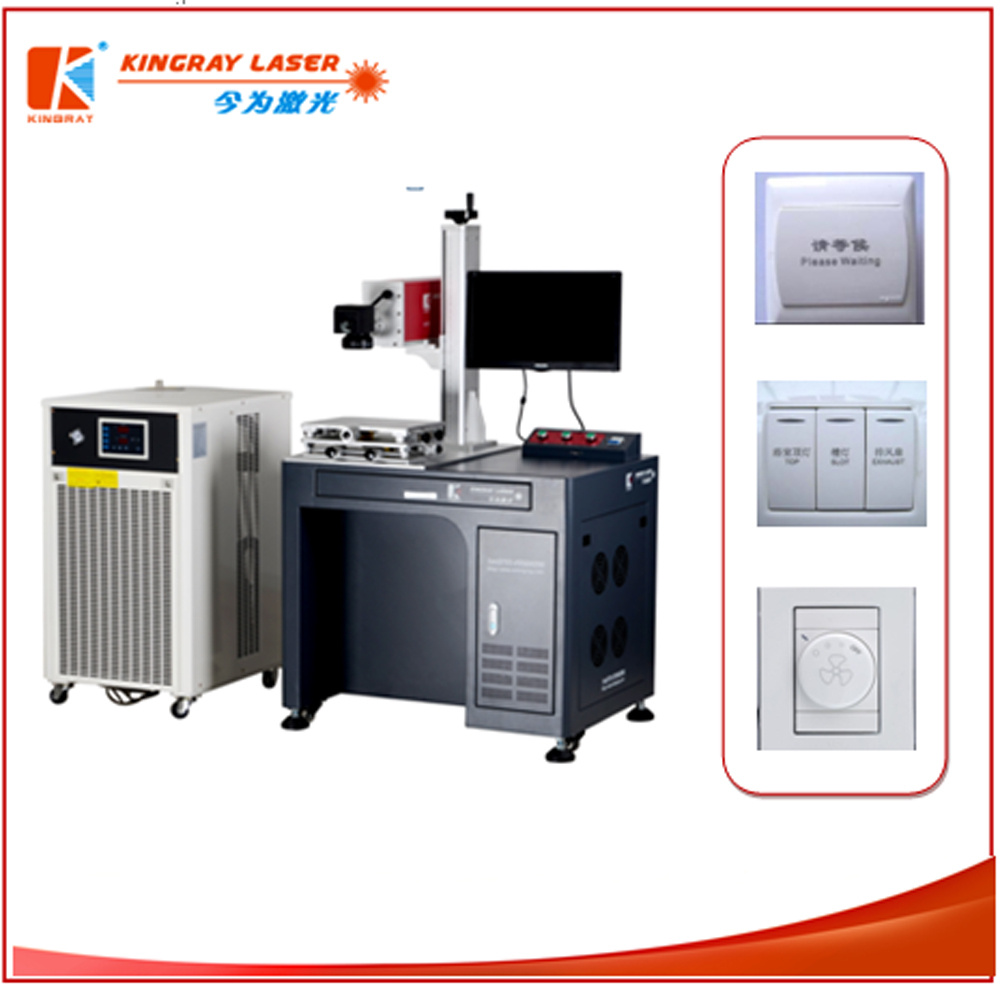

KRUV series marking machine uses 355nm advanced UV laser machine designed by our company with an American laser company and adopts the third-order intracavity frequency doubling technology. Comparing with infrared laser, UV laser marking machine has smaller laser spot which can reduce the mechanical deformation as least as possible. The UV laser is mainly used for hyperfine marking and cutting, especially for medical packaging, micro-hole machining, also marking glass and silicon materials drastically reduced risk of microfracture.
Features:
1.Imported accessories make an almost perfect marking performance, the 355nm output laser greatly reduces the heat affected zone to work piece.
2.High precision laser spot make sure the perfect marking effect, and achieves hyperfine marking.
3.Its high-performance UV laser machine is much more suitable for the materials with bad reaction of heat radiation.
4.Small heat affected area, non thermal reaction, non material burnt.
It can be combined with production line with auto material delivery.
Application Industries:
Suitable for ultra-precision machining of high-end market, cosmetics, pharmaceutical packaging materials marking, micro-hole punching , flexible PCB marking , high speed division for glass material, and complex graphics cutting for silicon wafer.
Suitable Materials:
Suitable for surface process and cutting of LCD, TFT, glass ware, metal surface electroplating, plastic keys ,ceramic, silicon chip, IC crystal grain, sapphire, polymer film and other materials.
Technical Parameters:
Type/Parameter | KRUV/3/5/8/10 |
Laser rated power | 3W/5W | 8W/10W | Q-switched frequency | 10Z-100KHZ |
Wavelength | 355mm | Overall dimension | 800mm×680mm×120mm |
Beam quality | <2 | Electric requirement | 220V±10%50HZ/10A |
Min. character size | 0.1mm | Cooling method | Air Cooled/Water Cooled |
Min. line width | 0.005mm | Total weight | 120KG |
Repetition accuracy | ±0.003m | Power consumption | 1.5KW |
Marking speed | 800C/S |
|
|
