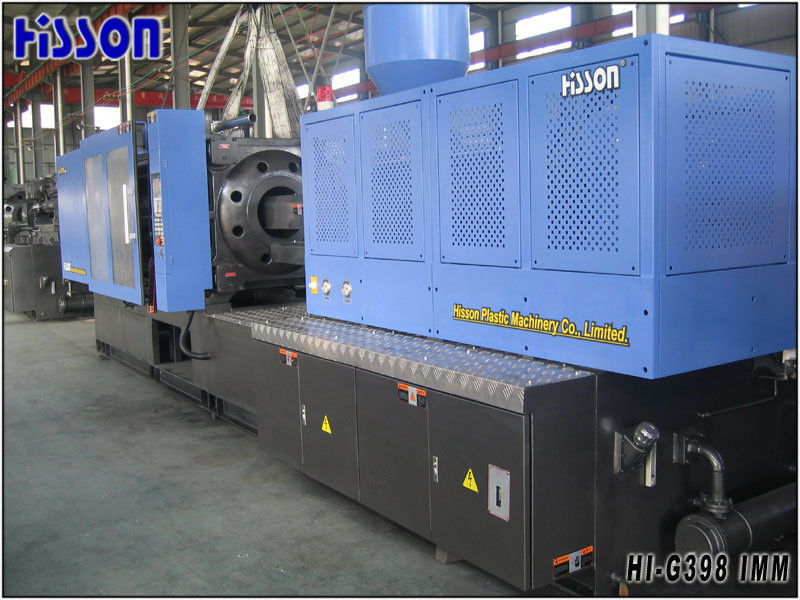

398t Hydraulic Horizontal Plastic Injection Moulding Machine Hi-G398


Detailed Product Description


Application:	Home, Industrial	Components:	Techmation, Schneider, Vickers
Control Method:	Automatic, Fully Automatic, Auto	Material:	PE, PVC, A.B.S
Mold Cavities:	10 Cavities, 12 Cavities, 6 Cavities, 4 Cavities, 8 Cavity	Working Principle:	High Speed, Hydraulic
Clamping Force:	398 Tons

398tons Plastic Injection Molding Machine
Quick Detail:

HI-G398 Plastic Injection Molding Machine is for normal type plastic material injection, e.g. PC, PP, PE, Nylon, A.B.S. PVC etc., this machine is with clamping force 398tons, there are three available screws, the corresponding real shot weight 1000g, 1145g, 1300g. This machine is mainly used to produce small, middle&big industrial parts, household appliances and other plastic products.

Description:

HI-G398 Plastic Injection Molding Machine is the type of fully-automatic machine, being provided with high efficiency, high reliability, high speed, low noise, low power consumption and other advantages.

Machine main components adopt world famous brand, e.g.:
Controller:TECHMATION (TAIWAN),
Low voltage contactor: SCHNEIDER(FRANCE),
Low voltage air switch: SCHNEIDER(FRANCE),
Proportional Valve: Dofluid HNC(TAIWAN)
Oil pump: VICKERS(USA)
Directional Valve: VICKERS(USA)
Induction travel switch: OMORON (JAPAN)
Inductor potentiometer: FORT(USA)

Applications:

HI-G398 Plastic Injection Molding Machine is for small,middle &big industrial parts, household appliances and other plastic products, material PC, PP, PE, Nylon, A.B.S. PVC etc., suitable plastic products weight 15g-1300g, mold cavity can be:   1 Cavity, 2 Cavities, 3 Cavities, 4 Cavities, 6 Cavities, 8 Cavities, 10 Cavities, 12 Cavities, 16 Cavities, 24 Cavities, 32 Cavities,48 Cavities


Competitive Advantage:

1. Heaters adopt ceramic, the using life is double than stainless steel.
2. Machine with oil filter system to ensure hydraulic oil clean , to prolong action valves using life.
3. The machine equipped with 7 inch colorful screen controller, brand Techmation from Taiwan, the controller is with several languages include English, French, Spanish, Portuguese, Russian, Arabic etc.
4. The machine equipped with hydraulic protection
5. The machine equipped with double Hydraulic pulling device
6. The machine equipped with double Air Ejector
7. The machine equipped with single slots on the mold plates

Specifications:

HI-G398 Technical Parameters



HI-G398			Optional Parameters
TECHNICAL PARAMETER TABLE		Unit	A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	70	75	80
	SCREW L/D RATIO	L/D	21.4	20	18.8
	SHOT VOLUME(THEORETICAL)	cm3	1293	1485	1689
	INJECTION WEIGHT(PS)	g	1177	1351	1537
	INJECTION PRESSURE	Mpa	199	173	152
	INJECTION RATE	g/s	366	395	446
	PLASTICIZING CAPACITY	g/s	60	65	70
	SCREW SPEED	rpm	0-165

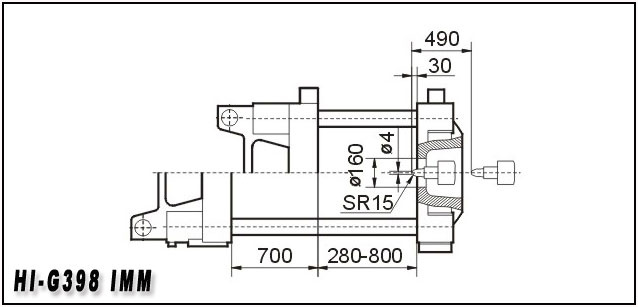

CLAMPING UNIT	CLAMP FORCE	kN	3980
	OPEN STROKE	mm	700
	MAX.MOULD HEIGHT	mm	800
	MIN.MOULD HEIGHT	mm	280

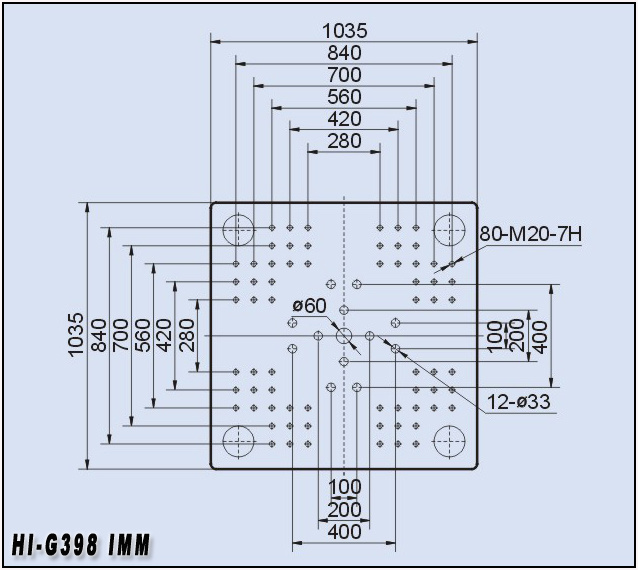

	SPACE BETWEEN TIE BARS	mm	720×720 (W×H)
	EJECTOR FORCE	KN	110
	EJECTOR STROKE	mm	160
GENEREL	EJECTOR NUMBER	n	13
	PUMP PRESSURE	KW	16
	PUMP MOTOR POWER	KW	37
	HEATING POWER	KW	19.90
	MACHINE DIMENSION	m	7.1×1.9×2.5(L×W×H)
	MACHINE WEIGHT	T	15.7
	Hopper Capacity	L	50
	Oil Tank Capacity	L	750
