Abnormal Jelly Gummy Candy Making Machine

Abnormal Jelly Gummy Candy Making Machine

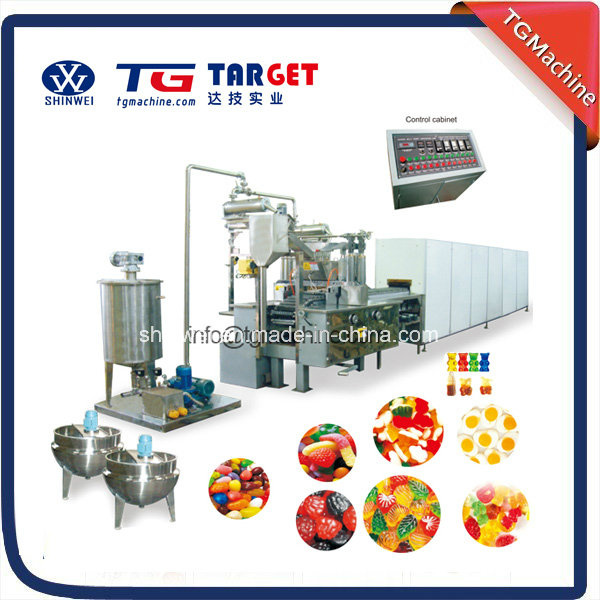

QQ(JelIy)gummy candy processing line is an advanced and continuous plant for making different sizes of jelly candies (QQcandies).It is an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied. This deposinting line consists of jacket dissolving cooker, gear pump, storage strainer, storage

tank,discharging pump, color & flavor jigger, color & flavor mixer, depositor, cooling tunnel, e|ectric control cabinet, etc

The processing line is an advanced and continuous plant for making different sizes of gelatin-type soft candies(QQ candies) . It is an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.

The processing line is advanced and continuous for making different size of gelatin-type soft candies (such as QQ candies). It is ideal equipment to produce high quality soft candies. With the sanitary structure design, on one hand it can produce one or two colors candy;

on the other hand, it can automatically blend the essence pigment and fermenting liquid in accurate quantity ratio. High-degree automation ensures of stable production and saves time and labor force and occupations to serve the purpose of reducing the cost.

TECHNICAL SPECIFICATIONS:


Model	GD150Q	GD300Q	GD450Q
Production capacity   ( kg/h)	150	300	450
Rated depositing times(n/min)	20~25	20~25	20~25
Weight of each candies(g): two colors single color	2g~.6g 1.5g~6g	2g~6g 1.5g~6g	2g~6g 1.5g~6g
Electric power needed	8kw/380V	12kw/380V	16kw/380V
Refrigerator	MT160 x1 15,000 kcal/h 10.5kw	MT160x2 30,000kcal/h 21kw	MT160x2 30,000kcal/h 21kw
Compressed air consumption Compressed air pressure	0.20m3/min 0.4-0.6 Mpa	25m3/min 0.4-0.6 Mpa	25m3/min 0.4-0.6 Mpa
Conditions needed for the cooling system: 1.Room temperature(°C) 2.Humidity (%)	20~25 55	20~25 55	20~25 55
Conditions needed for the cooling system: 1.Room temperature(°C) 2.Humidity (%)	20~25 55	20~25 55	20~25 55
Length of the whole line   (m)	9m	11m	15m
Gross weight           ( Kgs)	Approx.3000	Approx.4000	Approx.5000

FLOW CHART:


Sugar and gelatin dissolving→    mixing→     cooling→ transporting→  depositing →  cooling → de-moulding →following disposalà packing


Packaging & Shipping


Wooden packing
1.Product production is completed, by the quality inspection department to check
2.After inspection qualified, clean for whole machine
3.Packing: a.Inside the machine put desiccant b.Add 6 cm thick foam plate around the machine,Then, winding stretch film for reinforcement, and combined with bubble wrap c.On wood packaging on the outside of the machine, then use metal reinforcement with steel
4.Container:according to different products for reinforcement


After-sale service for abroad customers.

1. Free training of macine installion, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will surpport customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installion and adjustment.
