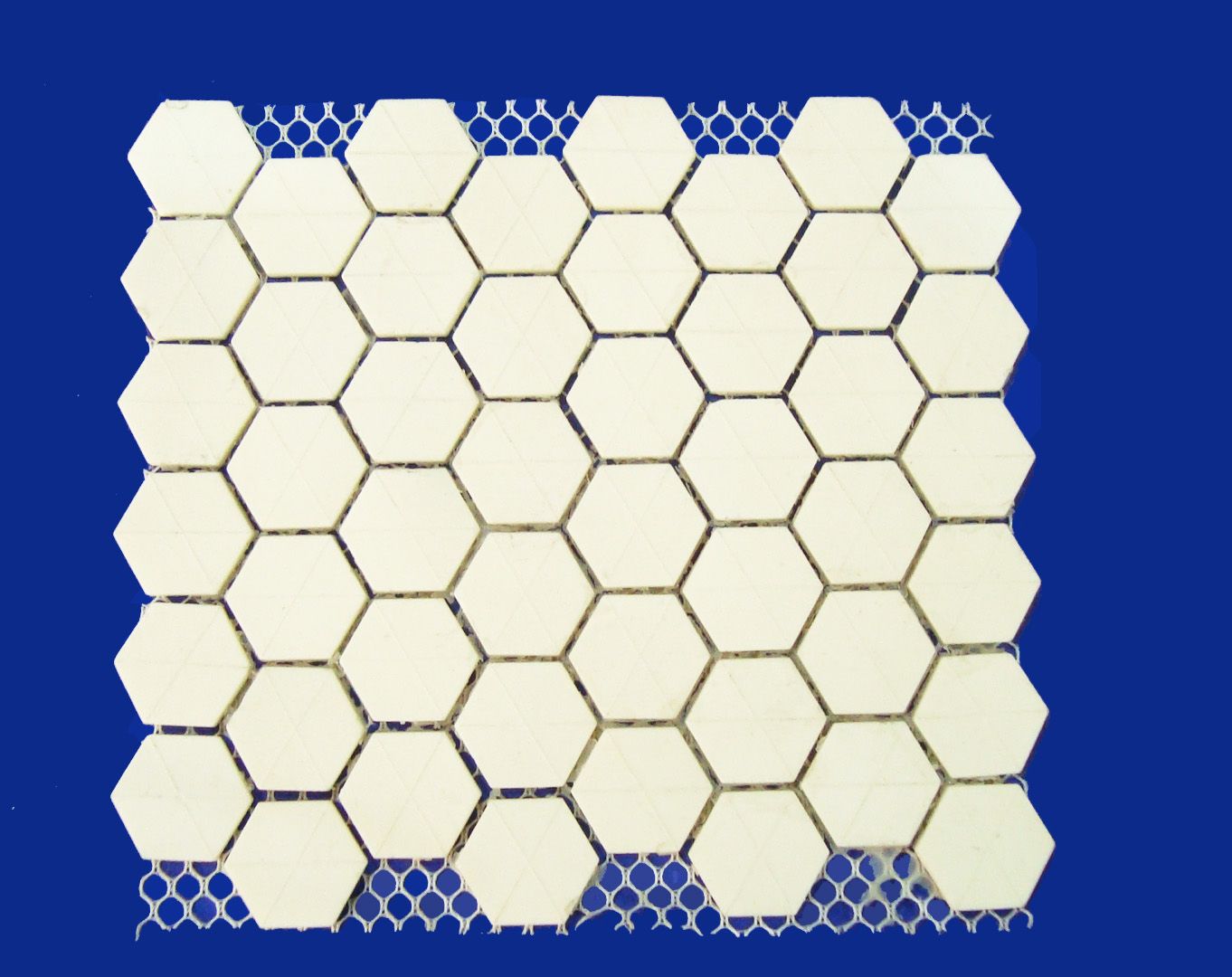

Abrasion Resistant Alumina Ceramic Hex Tile (500*500mm 300*300mm)
Price: |
US $ 991/Ton |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Ton |
Pay Type: |
L/C,T/T |
Hex tile sheet (Al2O3 : 92% 95%)
Hexagonal tile mat
Hex tile sticked in net , nylon, paper>> Alumina Ceramic Hex Tile sheet size Ceramic lining pieces size |
17.5*17.5*5mm | 19.95*19.95*4.5*0.6 with dimples |
17.5*17.5*4mm | 20*30*5 with 18 pieces dimples |
17.5*17.5*3mm | 20*20*4 with 13 pieces dimples |
20*20*4/5/6mm | 20*20*8mm with 8 pieces dimples |
20820*12/13mm | |
25*25*4mm | |
Whole hexagonal ceramic tile matted pieces size |
300* 300 mm 500*500mm 250*250mm 150*150mm |
Note: more customized size available |
>> Alumina ceramic hex tile sheet advantages- High hardness with Moh's hardness 9 grade - High abrasion and chemical resistance - Easy installation by epoxy resin glue water - Easy mending if someone square tile drop off- Various of alumina ceramic lining shape and size available
>> Technical data : Al2O3 | SiO2 | CaO | MgO | Na2O |
92~93% | 3~6% | 1~1.6% | 0.2~0.8% | 0.1% |
Specific gravity (g/cc) | >3.60 |
Apparent porosity (%) | 0 |
Flexural Strength (20ºC, Mpa) | 280 |
Compressive strength (20ºC, Mpa) | 850 |
Rockwell hardness (HRA) | 80 |
Vickers hardness (hv) | 1050 |
Moh's hardness (scale) | ≥9 |
Thermal Expansion (20-800ºC, x10-6/ºC) | 8 |
Crystal Size (μm) | 1.3~3.0 |
>> Markets and Services- Our markets:
China mainland & Taiwan, India, Indonesia, Korea, Vietnam, Malaysia
South Africa,
Chile, Peru, Argentina, Brazil,Australia,America, Canada,
Germany, Denmark, England, etc.
Prod Model: |
CS12-15 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size Available: |
150*100*13/25/50mm, 100*50*13/25/50 Mm |
Alumina Content: |
92% or 95% |
Density: |
3.6 and 3.7 |
Mohs Hardness: |
9 Grade |
Rockwell Hardness: |
More Than 87 Hra |
Delivery Time: |
20days |
Application: |
Wear Resistant |
Pingxiang Chemshun ceramics Co., Ltd is a professional manufacturer of 95% & 92% Al2O3 alumina wear ceramic products. Chemshun ceramics was established in 2002, we have 15 years of professional ceramic producing and import & exporting experierence. Chemshun have the products and service of: Design, produce, sell, as follows:
1) 95% Al2O3 Alumina wear resistant product and high quality grinding media.
(we also can supply the Al2O3: 92% products according to detailed requirement):
Wear resistance Ceramic liner, alumina plaiin tile, ceramic weldable plate, alumina pipe, ceramic blocks, abrasion resistant lining, lined pipe and fitting, ceramic linings, wear-resistance ceramic linings, chemshun pre-engineered equipment lined ceramics and paiting, custom designed alumina ceramic, hexagonal ceramics sheet, square ceramic lining pieces, ceramic liner, Ceramic Conveyor Pulley Lagging, ceramic tube and all kind of engineered ceramics, the finished equipment according to drawings. Ceramic Grinding balls, griding cylinders. Products used in the mineral, steel, power, port, cement, ceramic, glass etc industries, and was fixed on the equipment of chute, cyclone, cone, fan etc. We not only afford the products but also can afford the engineer service and on-site fixing.
2)High quality Catalyst support media /support covering materials (Inert ceramic balls, 99 alumina balls, all kind of ceramic/alumina rings) and all kinds of tower packings(Mat: Eramic/Plastic/Metallic), saddles, pall rings, flower rings, raschig rings, cascade mini rings etc) and ceramic honeycomb products.
Aim for servicing with the global maket, we established a new factory in 2008 which mainly supplys the high alumina wear resistant product and the high quality catalyst support media. With the predominance be of honesty, efficiency, specialty and innovation, Pingxiang chemshun ceramics Co., Ltd will satisfy global makket requirement.
Has strong research and production capability, with an annual production capacity of 4000 tons of wear-resistance product (grinding balls & lining bricks, alumina plate, alumina mosaic product), 1500m3 catatalyst support /covering materials (inert ceramic balls, 99alumina balls, ceramic honeycomb materials) and 1500m3 various chemical packing. We aim to serve clients from all over the world.
