Product Description

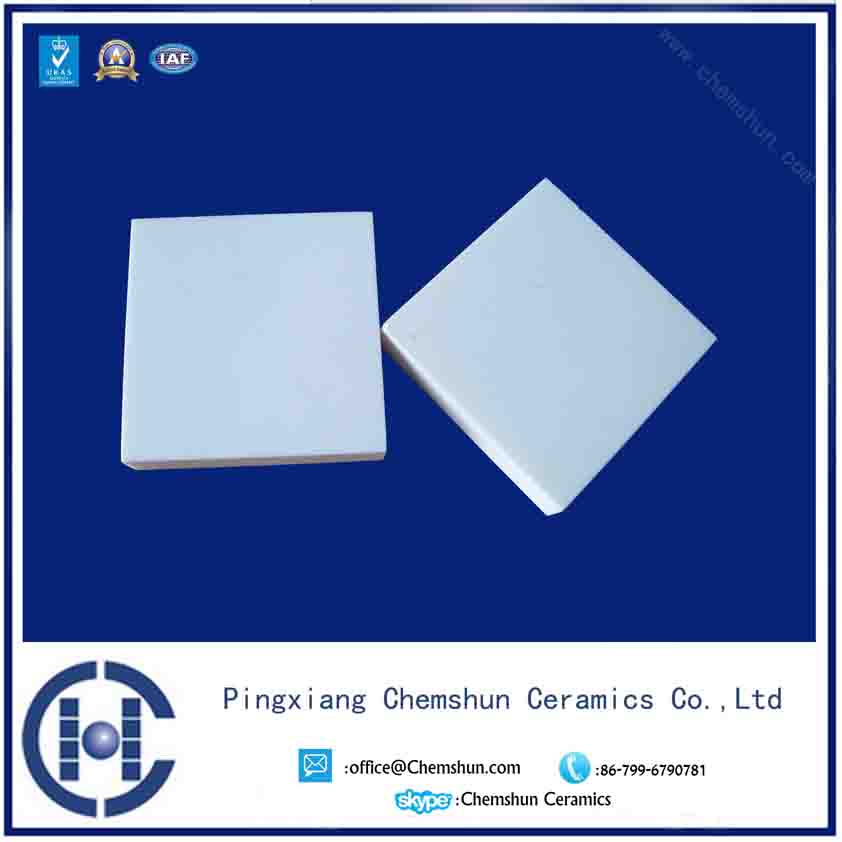

Alumina ceramic plain tile
Ceramic wear protetion liners
Ceramic wear plates
1)Material: Al2O3: 92%, 95%
2)Method of moulding: Thermal casting/dry press/extrusion
3)Color: White
4)Density: 3.60-3.62g/cm3
Advantages:
----Excellent abrasion resistance (Scuff resistance), its theoretic wear resistance is 170times of chrome steel and 260 times of manganese steel materials
----Good corrosion resistance (Anticorrosion)
----Easy application (Quick installation)
----long working life.
----Good impact resistance.
----Good thermal shock resistance. Smooth surface and good adherence resistance
Chemshun Ceramics wear-resistant product feature:
- Excellent wear and abrasion protection property.
- Excellent corrosion resistance property
- Excellent heat resistance property
- Excellent impact resistance property
- Excellent for ballistic protection
Chemshun Ceramics wear-resistant product application industries:
- Mining
- Mineral processing (mineral beneficiation)
- Power generation
- Cement
- Petro-Chemical Refining and Production
- Coal washery
- Steel
- Defense (personal & vehicle armour).
Common items equipment need wear linings are: Agitators; Bends; Branches; Chutes; Classifiers; Cones; Cyclones; Distribution Box; Ejectors; Fans; Feeders; Hopper; Launders; Manifolds; Mills; Orifice; Pipes; Pipe Bends; Pipe fitting; Pulley lagging; Silos; Splitter Boxes; Spoons; Square Bends; Square to Round; Tanks; Troughs; Transfer points; T-Pieces; Y-Pieces etc.
We can supply you all kind of standard and customized ceramic products. Once you have any inquiry or need any product from us please feel free contact us
Performance Index | 92 series | 95series |
| Al2O3 (%) | ≥ 92 | ≥ 95 |
| Moh' s Hardness | 9 | 9 |
| Water Absorption Rate(%) | < 0.01 | < 0.01 |
| Flexural strength, 20C, Mpa | 275 | 290 |
Bending
strengh(Mpa) | 255 | 275 |
| Bulk density(g/cm 3 ) | ≥ 3.60 | ≥ 3.65 |
Pingxiang Chemshun ceramics Co., Ltd is a professional manufacturer of 95% & 92% Al2O3 alumina wear ceramic products. Chemshun ceramics was established in 2002, we have 15 years of professional ceramic producing and import & exporting experierence. Chemshun have the products and service of: Design, produce, sell, as follows:
1) 95% Al2O3 Alumina wear resistant product and high quality grinding media.
(we also can supply the Al2O3: 92% products according to detailed requirement):
Wear resistance Ceramic liner, alumina plaiin tile, ceramic weldable plate, alumina pipe, ceramic blocks, abrasion resistant lining, lined pipe and fitting, ceramic linings, wear-resistance ceramic linings, chemshun pre-engineered equipment lined ceramics and paiting, custom designed alumina ceramic, hexagonal ceramics sheet, square ceramic lining pieces, ceramic liner, Ceramic Conveyor Pulley Lagging, ceramic tube and all kind of engineered ceramics, the finished equipment according to drawings. Ceramic Grinding balls, griding cylinders. Products used in the mineral, steel, power, port, cement, ceramic, glass etc industries, and was fixed on the equipment of chute, cyclone, cone, fan etc. We not only afford the products but also can afford the engineer service and on-site fixing.
2)High quality Catalyst support media /support covering materials (Inert ceramic balls, 99 alumina balls, all kind of ceramic/alumina rings) and all kinds of tower packings(Mat: Eramic/Plastic/Metallic), saddles, pall rings, flower rings, raschig rings, cascade mini rings etc) and ceramic honeycomb products.
Aim for servicing with the global maket, we established a new factory in 2008 which mainly supplys the high alumina wear resistant product and the high quality catalyst support media. With the predominance be of honesty, efficiency, specialty and innovation, Pingxiang chemshun ceramics Co., Ltd will satisfy global makket requirement.
Has strong research and production capability, with an annual production capacity of 4000 tons of wear-resistance product (grinding balls & lining bricks, alumina plate, alumina mosaic product), 1500m3 catatalyst support /covering materials (inert ceramic balls, 99alumina balls, ceramic honeycomb materials) and 1500m3 various chemical packing. We aim to serve clients from all over the world.
