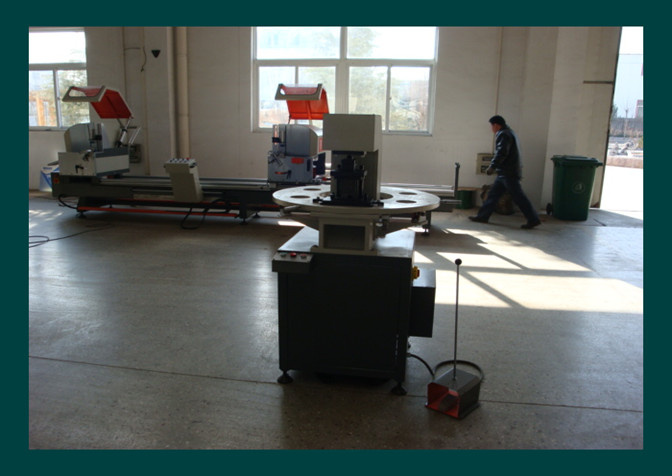

Aluminum window machine--Aluminum profile punching machine
Aluminum window machine/hydraulic alu punching machine of window machine
Punching machine for aluminum alloy sections Aluminum window machine
Hydraulic Aluminum window Punching Machine with 6 molds Aluminum press machine
Hydraulic Aluminum window Punching Machine with 6 dies
Precision aluminium press machine for window&door
Hardware Punching Machine for Aluminium Window and Door
Aluminum window door machine Aluminum punching machine Aluminum press machine
Aluminum profile press machine of Aluminum window machine
Six moulds press machine for Aluminum window door
Aluminum press machine Aluminum punching machine
Punching machine for Aluminum window door
Aluminum punching machine for window door
Aluminum window punching machine
Aluminum profile press machine for window door
Aluminum press machine
Aluminum window machine/Aluminum press machine
1. Machine features
1). The machine is used to punch and cut various profile holes for aluminum door and window profiles and profile end surface.
2). Open-type construction enables flexible operation positions.
3). Rotating work bench enables convenient switchover among six sets of molds.
4). It is convenient to design and install single-position mold and can also realize multi-position punching and cutting.
5). The hydraulic power is stable and the nominal pressure is big and so it can adopt to complex punching and cutting procedure.
2. All aluminum punching machine models:
LY-63 Punching machine for aluminum profile(six moulds)
LY-30 Punching machine for aluminum profile
Kindly note: If you want to use the press machine/punching machine to punch and cut various profille holes for window door, you can consider to buy this press machine/punching machine.
3. Related All Aluminum window machine models:
Aluminum window door profile cutting saw:
LJZ2-450X3700 Double-head cutting saw for aluminum profile
LJZB-500X4200 Double-head precision cutting saw
LJZY-500X4200 Double-head precision cutting saw with digital show
LJZ-CNC-500X4200 CNC Double-head precision cutting saw
LJJ-140 Corner connector automatic cutting saw
Aluminum window door corner combining machine:
LZJ-02 Single head Corner combining machine
ZJ-100X3000/1800 Double head corner combining machine
ZJ-100× 3000× 1800 Four-head corner combining machine
ZJ-CNC-100X1800X3000 CNC Four corner vertical corner combining machine
Aluminum prpfile milling machine:
SZJ01 Lock-hole milling machine
LSX-100 single-axis copy-routing milling machine
LSX01-100 Double-axis copy-routing milling machine
LXD-200 Ending milling machine
LXD02-200 End milling machine
LXDA-200 End milling machine
LXD-250 Heavy duty end milling machine
Aluminum profile punching machine:
LY-63 Punching machine for aluminum profile
LY-30 Punching machine for aluminum profile
Bending machine:
LW-100 Bending machine for aluminum profile
WY360A-CNC CNC bending machine for aluminum profile
Kindly note: Hope you can tell me your production plan if you want to make Aluminum window door, , you can tell me your production plan is large or middle or small, so that we can give you suggestios on machines models.
Model number |
LY-63 |
Power supply |
380V 50Hz |
Motor power |
2.2kw |
Motor rotational speed |
1420 r/min |
Rated oil pump pressure |
16Mpa |
Oil tank volume |
20L |
Press nominal pressure |
50KN |
Punching travel |
30mm |
Travel times |
30times/min |
Closing height: |
185mm |
Contour dimension |
900× 900× 1413mm |
Machine weight (about) |
380kg |
Jinan Better Machinery Co., Ltd. is a large scale enterprise specializing in research, development and production of equipment for plastic doors and windows, equipment for aluminum doors and windows and fabrication equipment for hollow glass.
Our guide principle is "Lead in Development, Strive for Quality, Live to Serve". Our company also developed three series of one hundred kinds of products to satisfy not only the demand of quality and scale but also the individuality designing and manufacture.
With the complete scientific facilities and technical center, export center, network center and training center in professional energy-saving machine for doors and windows, our company wins good fame and our products are sold well in domestic market and also far to Russia, Ukraine, Ethiopia, the United States, and Mongolia.
Depending on research ability, our employees continuously improve the quality of products and customer service. Welcome to visitor our company for business negotiations.
