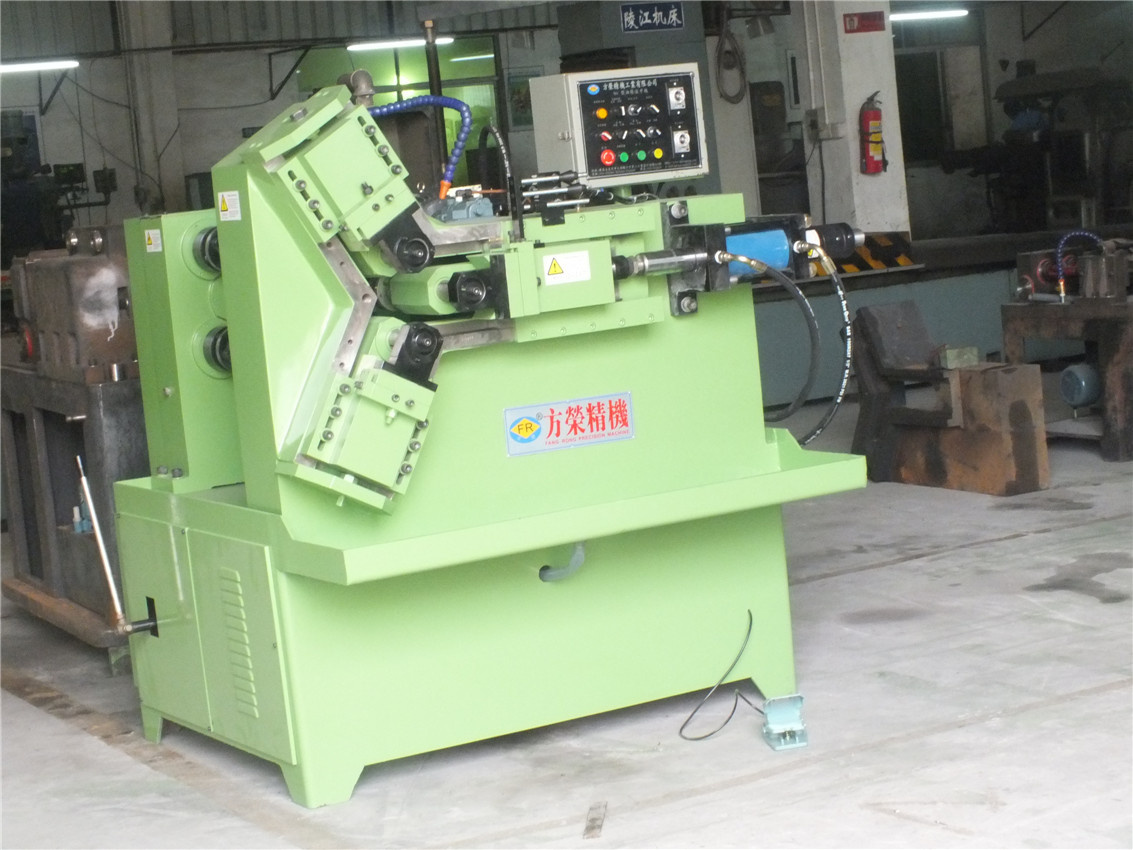

Automatic 90 Type thread rolling machine
The series equipment is suitable for rolling thread, rolling cobweb, rolling straight grain, rolling finish, Roll cross flower rolling steel, rolling groove, roll-off, rolling sphere, hobbing, straightening on metal pipe. FR-90*90 hydraulic thread rolling machine, metal rolling machine and pipe threading machine for copper, aluminum, stainless steel and iron.
Mechanical structure:
Two axles fixed (size can be adjusted within allowable range) which on 3 axle vertical machine. Cam push forward or back through the third axis, Taiwan brand thread rolling machine technology.
Manner of working:
The pipe which need to rolling thread are inserted into the middle of the three-wheel, roller cone squeeze the workpiece to making thread, designed for pipe.
Advantage
1, multi forming machine
2, Taiwan column injection pump
3, Gimbal imported material
4, Japanese bearing
5, low noise
Axis rolling machine
Use for metal pipe external thread rolling
Dual-use for rolling through and fixed
Skate with hydraulic feed drive, accurate positioning;
Suitable for processing small pitch and long large parts;
With square guiding line design, guiding line grinding after heat treatment, to strengthen the machinery moving smoothly.
Features:
1, Specialized for metal tubes designing, use triangle support, it can guarantee the work pieces real roundness when by rolling.
2, Fixed Roll/ Pass two applied.
3, Adopt Taiwanese column injection pump and Hydraulic system accessories, electrical. Asphalt can be used long and no heating without cooling system.
4, Use the imported Gimbals, lubrication system used the electric pump, change manual lubricating pump, use the Japanese bearing.
5, Lower noise and durable.
6, Automatic feeding device is optional.
7, rolling shape: Rolling thread, textured, ruled, rolling light, cross knurling, roll bars, rolling groove, and roll-off
Model |
FR-90 three-roller Thread Rolling Machine for metal
(steel, aluminum, copper, brass, stainless steel, SS) tube or pipe |
Parameter: |
|
Diameter range |
Φ27-90mm |
Pitch range |
1.0-6.0P |
The maximum length of rolled screws |
Fixed 90mm and unlimited |
Wheel speed |
220/360/560/750rpm |
Wheel diameter |
Φ198(118mm) |
Roller inner diameter |
Φ50 keyway 12*6 |
Width of dies |
25mm -90mm |
Die spindles traveling |
190-105mm |
Wheel volume |
4-25pcs/min |
Wheel shaft angle |
± 3° |
Main Motor |
10HP 6N (7.5kw) |
Hydraulic motor |
5HP (3.7kw) |
The maximum feed pressure |
17TONS |
Machine size |
1900*1600*2100 |
Weight |
2580kg |
