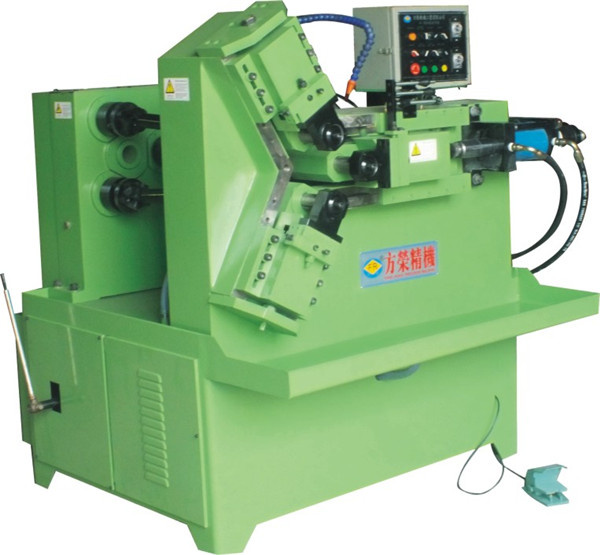

Vietnam Popular Hydraulic Pressure Thread Rolling Machine (FR-90X90)
Vietnam Popular Hydraulic Pressure Thread Rolling Machine is suitable for rolling thread, rolling cobweb, rolling straight grain, rolling cross flower, rolling groove, knurling on metal pipe and tube.
It is apply to copper, aluminum, brass, steel and iron.
Mechanical structure:
Two axles fixed (size can be adjusted within allowable range) which on 3 axle vertical machine. Cam push forward or back through the third axis, Taiwan brand thread rolling machine technology.
Manner of working:
Tubes are inserted into the middle of the three-wheel, roller cone squeeze the workpiece to making thread, designed for pipe and tube.
Features:
1. Principle of Triangular support, to ensure the concentricity, roundness, perpendicularity of the workpiece.
2. In fixed and thru both available.
3. Taiwan cylindrical injection oil pump and hydraulic system.
4. Taiwan cardan joint and automatic lubrication system.
5. Japanese bearings.
6. Axles and gears withr heat treatment and fine grinding, lownoise and long-term durability.
7. Automatic feeding device.
Technical parameter:
| 1 | Model | FR-90X90 |
| 2 | Diameter range | Φ27-90mm |
| 3 | Pitch range | 1.0-6.0P |
| 4 | length of rolled screws | Fixed 90mm and unlimited |
| 5 | Wheel speed | 220/360/560/750rpm |
| 6 | Wheel diameter | Φ198(118mm) |
| 7 | Roller inner diameter | Φ50 keyway 12*6 |
| 8 | Width of dies | 25mm -90mm |
| 9 | Die spindles traveling | 190-105mm |
| 10 | Wheel volume | 4-25pcs/min |
| 11 | Wheel shaft angle | ± 3° |
| 12 | Main Motor | 10HP 6N (7.5kw) |
| 13 | Hydraulic motor | 5HP (3.7kw) |
| 14 | The maximum feed pressure | 17TONS |
| 15 | Machine size | 1900*1600*2100 |
| 16 | Weight | 2580kg |
Dong Guan Fang Rong Machinery Factory, founded in 2000, is a professional manufacturer that integrates development, production and sale. Fang Rong is special in production thread processing equipment and precision cold drawing machines. In 2005, Fang Rong factory passed the ISO9000: 2001 quality system certification, and received a number of patents. Now, Fang Rong is developing and selling various machines, such as
1) Thread processing equipment:
A, thread rolling machines (rolling machines)
B, threading machines (air pressure, hydraulic)
C, thin tube rolling machines (lamp rolling machines)
D. The whole tooth machines
E. Tapping machines of six-axis
2) Precision cold-drawing equipment:
A, drawing machines,
B, straightening machines,
C. Pointing machines
Over the years, our goal has been to create professional and classic equipment, first-class products and best service to achieve product specialization, service professional and team specialization. After through Fang Rong people's unremitting efforts, our products are very popular at home and abroad. The prime quality and the best service are confirmed and recognized by customers in China and abroad.
