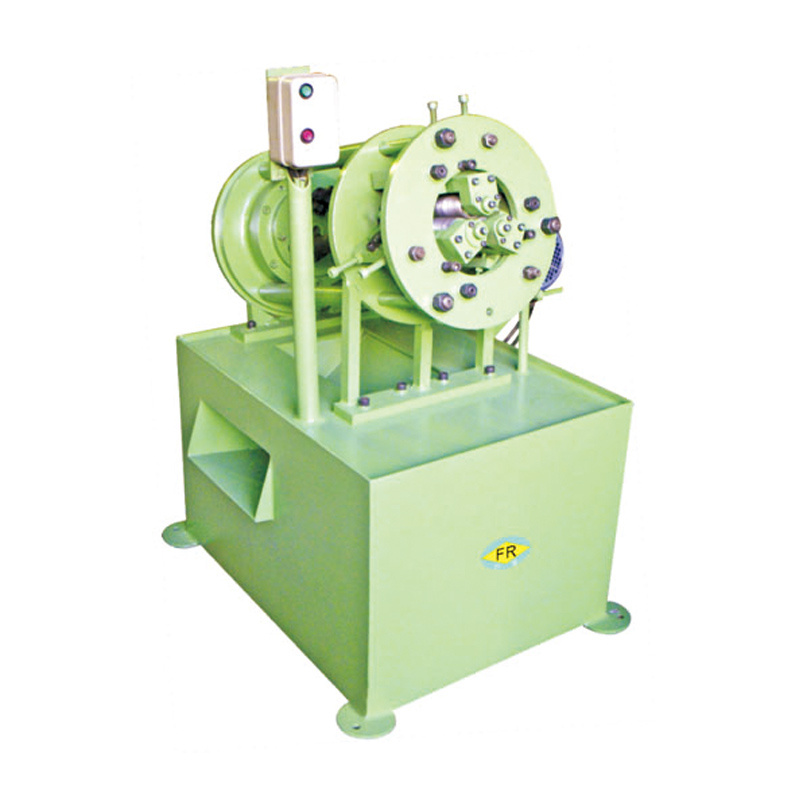

Features:
The series equipment is suitable for rolling thread, rolling cobweb, rolling straight grain, rolling finish, Roll cross flower rolling steel, rolling groove, roll-off, rolling sphere, hobbing, straightening on metal pipe.
Mechanical structure:
Two axles fixed (size can be adjusted within allowable range) which on 3 axle vertical machine. Cam push forward or back through the third axis, Taiwan brand thread rolling machine technology.
Manner of working:
The pipe which need to rolling thread are inserted into the middle of the three-wheel, roller cone squeeze the workpiece to making thread, designed for pipe.
Advantage:
1. Principle of Triangular support, to ensure the concentricity, roundness, perpendicularity of the workpiece.
2. In fixed and thru both available.
3. Using Taiwan cylindrical injection oil pump and hydraulic series accessories, electrical appliances. The oil circuit used for a long time no heat without cooling system.
4. Import cardan joint and lubrication system with an electric pump, not Manual injection lubrication pump. Using Japanese bearings.
5. Axles and gears withr heat treatment and fine grinding, the machine with small noise and long-term durability.
6. Taiwan brand speed governor.
7. According customers' requirement, add to automatic feeding device
8. Multi forming machine
9. Taiwan column injection pump
10. Gimbal imported material
11. Japanese bearing
12. Low noise
Quality Process Certifications: ISO 9000-2008
|
Range of thread diameter |
Tubes 8-16mm |
|
Range of pitch rolled |
0.5P-1.5P |
|
Max. length of thread rolled |
fixed and thru both available |
|
Speeds of dies |
460r/m |
|
Dies outer diameter |
according the requirement |
|
Dies inner diameter(keyway) |
24.5mm(6*3) |
|
Dies width |
60mm(100mm can be customized) |
|
Output(mm/min) |
100mm/min |
|
Rollers obliquity |
± 3° |
|
Machine motor |
2.2KW |
|
Supply voltage |
380V 50-60Hz |
|
Weight(reference) |
250kg |
|
Dimension(L*W*H) |
1000mm*1000mm*11500mm |
Dong Guan Fang Rong Machinery Factory, founded in 2000, is a professional manufacturer that integrates development, production and sale. Fang Rong is special in production thread processing equipment and precision cold drawing machines. In 2005, Fang Rong factory passed the ISO9000: 2001 quality system certification, and received a number of patents. Now, Fang Rong is developing and selling various machines, such as
1) Thread processing equipment:
A, thread rolling machines (rolling machines)
B, threading machines (air pressure, hydraulic)
C, thin tube rolling machines (lamp rolling machines)
D. The whole tooth machines
E. Tapping machines of six-axis
2) Precision cold-drawing equipment:
A, drawing machines,
B, straightening machines,
C. Pointing machines
Over the years, our goal has been to create professional and classic equipment, first-class products and best service to achieve product specialization, service professional and team specialization. After through Fang Rong people's unremitting efforts, our products are very popular at home and abroad. The prime quality and the best service are confirmed and recognized by customers in China and abroad.
