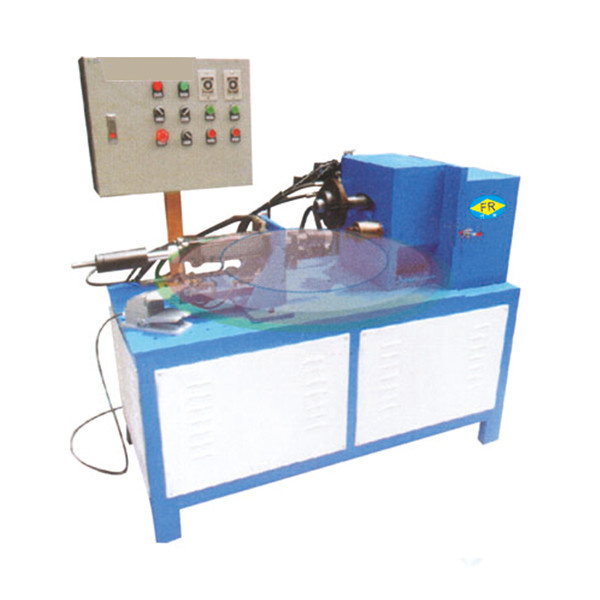

Light Base Thread Rolling Machine
Light Base Thread Rolling Machine is used for metal Water Pipe and Fire Pipe external and internal thread.
With square guiding line design, guiding line grinding after heat treatment, to strengthen the machinery moving smoothly, Only for half tooth.
Advantage of Light Base Thread Rolling Machine
Principle of Triangular support
Taiwan cylindrical injection oil pump
Taiwan cardan joint and lubrication system
Japanese bearings
Axles and gears withr heat treatment and fine grinding
Lnoise and long-term durability
Automatic feeding device
Quality Process Certifications: BV, SGS, ISO 9001-2008
Technical parameter of Light Base Thread Rolling Machine
| 1 | Tube diameter | Thin metal tubes 22mm-50mm |
| 2 | Tube thickness | ≤0.7mm |
| 3 | Thread pitch | 1.5P-6.0P(inside and outside teeth) |
| 4 | Thread lenth | 350mm (can be lengthened) |
| 5 | Motor | 1.5KW |
| 6 | Weight(reference) | 220kg |
| 7 | Dimension(L*W*H) | 1200mm*1000mm*1300mm |
Dong Guan Fang Rong Machinery Factory, founded in 2000, is a professional manufacturer that integrates development, production and sale. Fang Rong is special in production thread processing equipment and precision cold drawing machines. In 2005, Fang Rong factory passed the ISO9000: 2001 quality system certification, and received a number of patents. Now, Fang Rong is developing and selling various machines, such as
1) Thread processing equipment:
A, thread rolling machines (rolling machines)
B, threading machines (air pressure, hydraulic)
C, thin tube rolling machines (lamp rolling machines)
D. The whole tooth machines
E. Tapping machines of six-axis
2) Precision cold-drawing equipment:
A, drawing machines,
B, straightening machines,
C. Pointing machines
Over the years, our goal has been to create professional and classic equipment, first-class products and best service to achieve product specialization, service professional and team specialization. After through Fang Rong people's unremitting efforts, our products are very popular at home and abroad. The prime quality and the best service are confirmed and recognized by customers in China and abroad.
