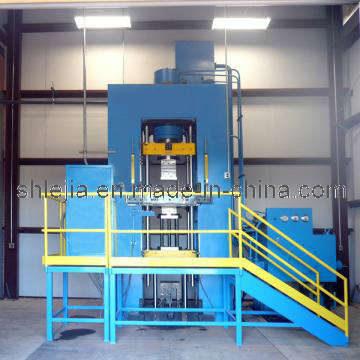

Performance and characteristics
1. This type is suitable for following working processes: Powder metallurgy, producing mechanical components, pressing and forming of fine ceramics, electronic ceramics and hard synthetic products.
2. With an independent hydraulic and electrical system, this type has auto-feed and auto-takeout device
3. Floating pressing can effectively control forming density.
4. Two die-mould device modes are available: Protective de-mould and general de-mould.
5. Process action is controlled by imported PLC to form a reliable action. The machine uses button centralized control, which can be operated continually and steadily.
6. Oil cooling device is fixed, as well as a mechanical restrainer to guarantee consistency of products.
Usage: For press forming of all kinds of powder products, including powder metallurgy, machinery parts manufacturing, precision ceramic, electronic ceramics and hard alloy products.
| Parameter | Unit | YQ79Z-40 | YQ79Z-63 | YQ79Z-100 | YQ79Z-160 | YQ79Z-200 | YQ79Z-250 | YQ79Z-315 | YQ79Z-500 | YQ79Z-630 |
| Rated pressure | KN | 400 | 630 | 1000 | 1600 | 2000 | 2500 | 3150 | 5000 | 6300 |
| Knock-out pressure | KN | 160 | 160 | 160 | 310 | 400 | 400 | 630 | 1000 | 1500 |
| Max.pressure ofliquid | Mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Max.speed of slide | mm | 450 | 500 | 600 | 700 | 700 | 700 | 800 | 900 | 900 |
| Stroke of knock-out | mm | 150 | 200 | 200 | 200 | 250 | 250 | 300 | 350 | 350 |
| daylight | mm | 1000 | 1000 | 1200 | 1200 | 1200 | 1200 | 1500 | 1750 | 2450 |
| Speed of slide | Descent | mm/s | 160 | 180 | 220 | 160 | 100 | 100 | 100 | 100 | 100 |
| Pressing | mm/s | 20~25 | 18~20 | 10~14 | 10~15 | 12~18 | 8~12 | 8~10 | 10~15 | 6~10 |
| Return | mm/s | 120 | 100 | 120 | 70 | 70 | 70 | 60 | 70 | 60 |
| Speed of knock-out cylinder | Knock-out | mm/s | 60 | 60 | 60 | 75 | 60 | 60 | 60 | 80 | 40 |
| Return | mm/s | 100 | 90 | 90 | 80 | 120 | 120 | 60 | 160 | 55 |
| Dimensions of table | L-R | mm | 500 | 570 | 720 | 720 | 1000 | 1000 | 1260 | 1400 | 1400 |
| F-B | mm | 460 | 500 | 580 | 620 | 900 | 900 | 1200 | 1400 | 1200 |
| Overal dimensions of machinery | L-R | mm | 2200 | 2500 | 2800 | 2800 | 3270 | 5100 | 900 | 6275 | 5820 |
| F-B | mm | 1250 | 1250 | 1300 | 1500 | 3100 | 4200 | 3235 | 2785 | 2000 |
| Height above floor | mm | 3300 | 3400 | 3600 | 4000 | 3725 | 4545 | 2060 | 5045 | 5560 |
| Motor power | KW | 5.5 | 7.5 | 11 | 15 | 22 | 22 | 22 | 50 | 50 |
